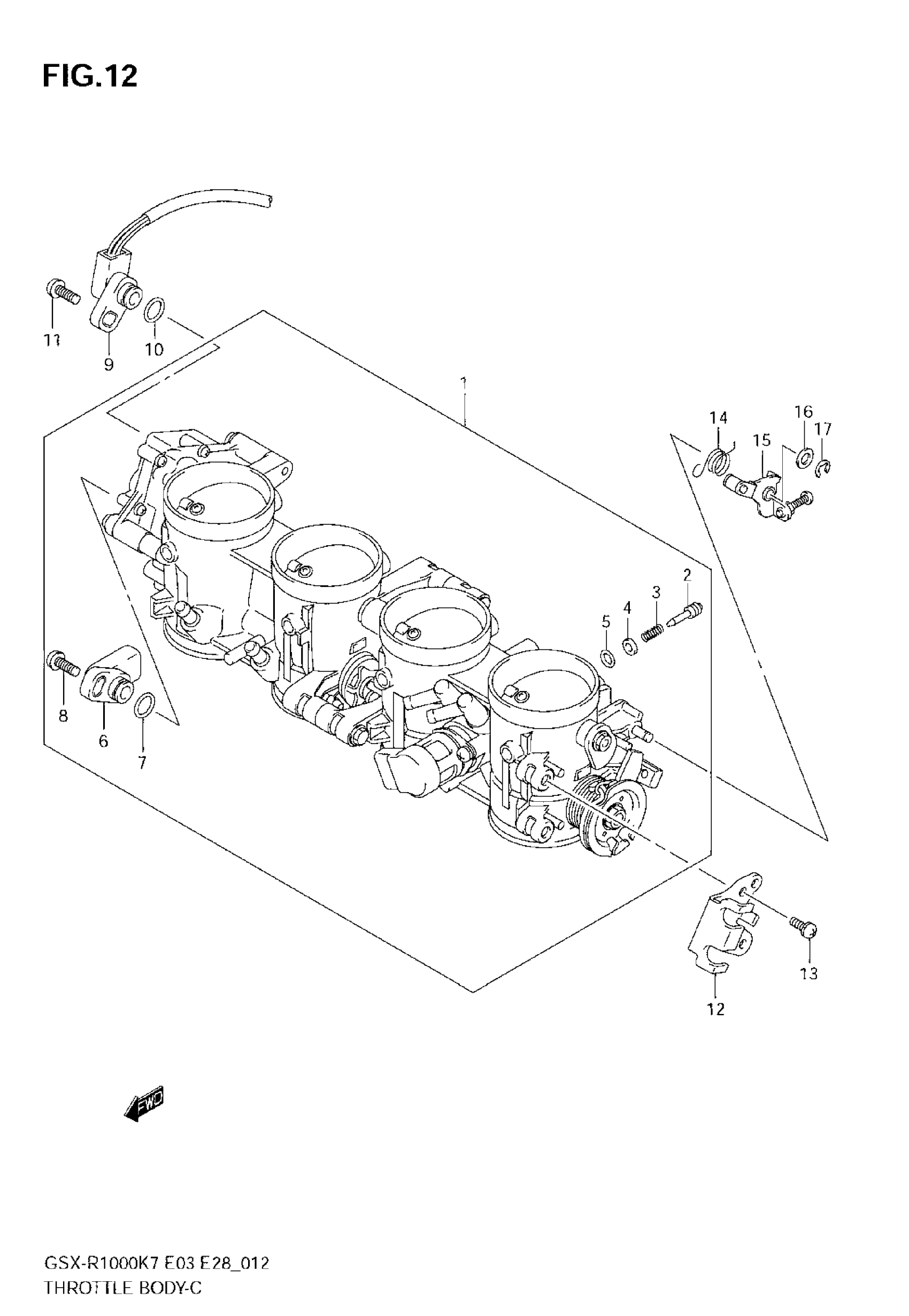

Find the part on the Throttle Body diagram for your 2008 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki GSX-R1000 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY | E3,E28 This part replaces 13406-21H00.

13406-21H02

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 - 8 This part replaces 13406-21H10.

13406-21H12

1
Out of stock

2

SCREW, AIR ADJUST

13269-18G00

4

$13.35

In stock

3

SPRING, AIR SCREW

13271-43E00

4
Out of stock

4

WASHER

13291-26E00

4

$2.92

In stock

5

O RING

13295-26E00

4

$4.33

In stock

6

SENSOR ASSY, MAIN

13580-18G00

1

$208.06

In stock

7

O RING

13575-40F00

1
Out of stock

8

SCREW

13605-40F00

1
Out of stock

10

O RING

13575-40F00

1
Out of stock

11

SCREW

13605-40F00

1
Out of stock

12

PLATE, STAY

13565-21H00

1
Out of stock

13

SCREW

13601-21H00

2
Out of stock

14

SPRING

13426-21H00

1
Out of stock

15

LEVER, LINK

13420-21H00

1
Out of stock

16

WASHER

13427-35F10

1
Out of stock

17

E CLIP

13424-35F10

1
Out of stock
