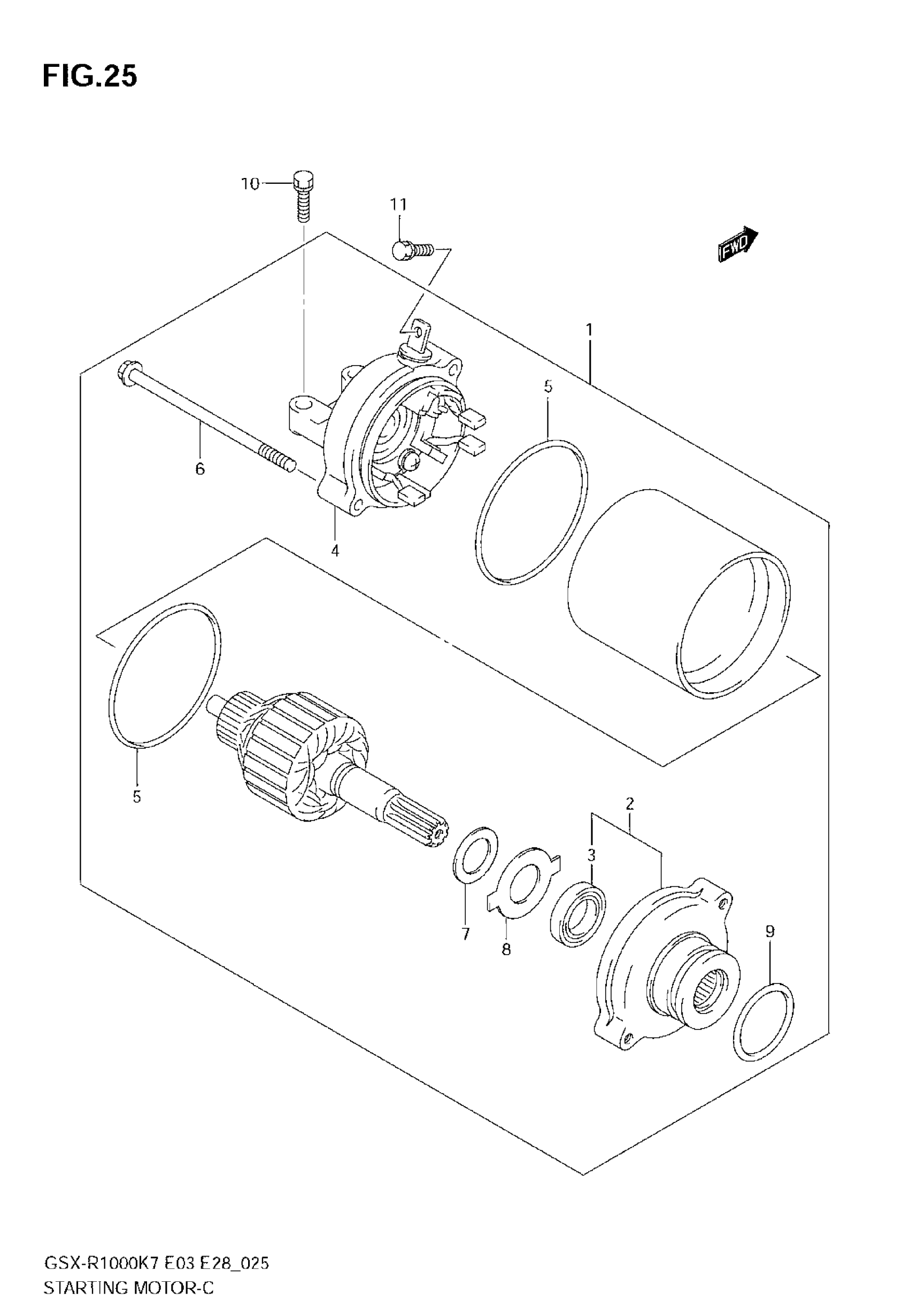

Suzuki GSX-R1000 (2008) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 9

31100-40F00

$675.37

2

HOUSING ASSY

31150-40F01

Unavailable

3

OIL SEAL

31153-49210

$24.20

4

FRAME ASSY

31175-40F01

$151.08

5

O RING

31264-32C10

$14.20

6

BOLT

31281-40F00

Unavailable

7

PLATE

31361-32C10

Unavailable

8

SHIM

31361-38300

Unavailable

9

O RING This part replaces 31156-40F00.

31156-40F01

$12.23

10

BOLT This part replaces 09128-06006.

09128-06057

$1.65

11

SCREW, STARTING MOTOR (5X8)

09137-05004

$2.17
