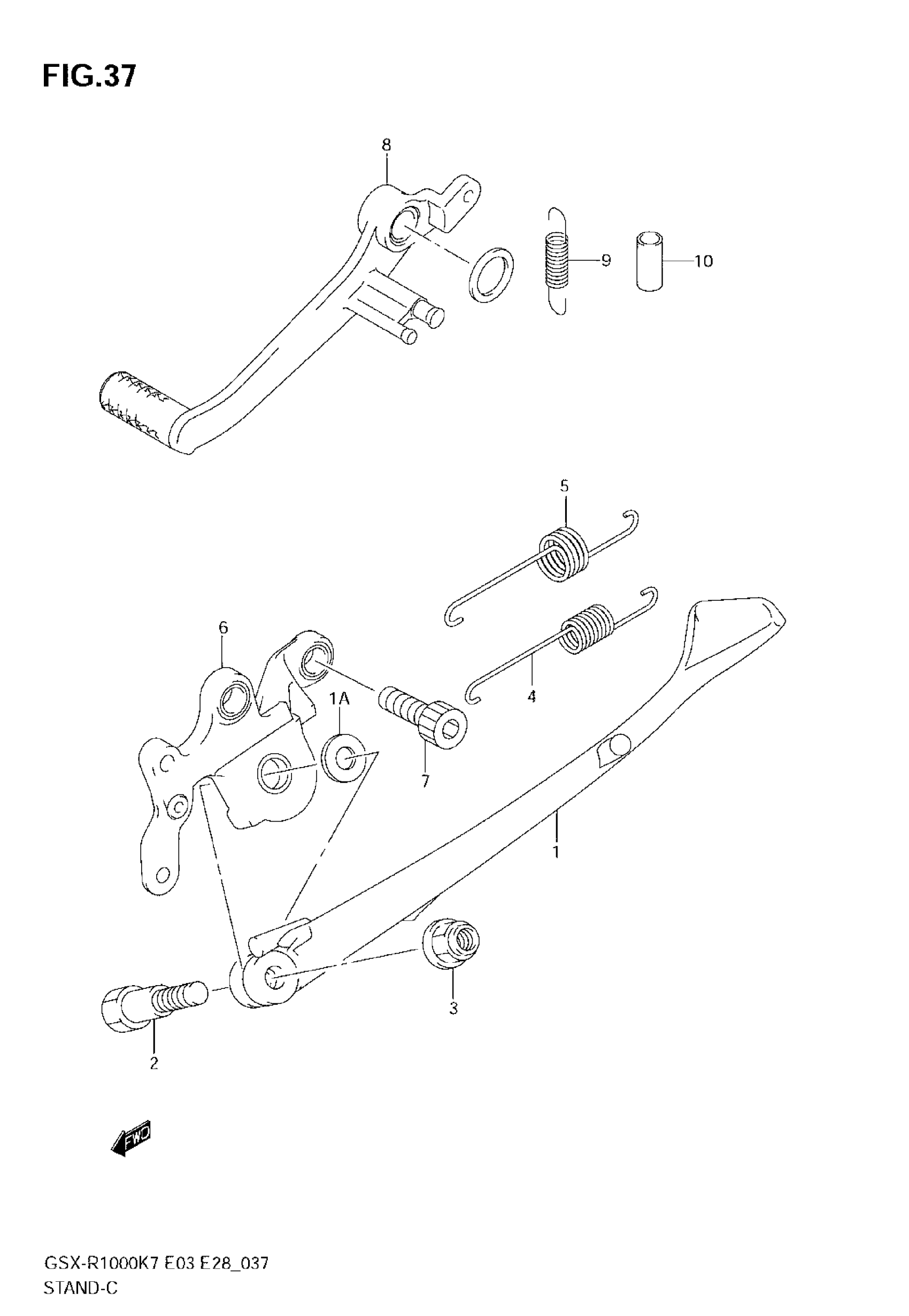

Suzuki GSX-R1000 (2008) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-21H00

$192.60

1A

WASHER

12935-27A00

$3.25

2

BOLT, PROP STAND

09111-10059

$6.95

3

NUT

09159-10103

$3.10

4

SPRING, INNER

09443-14070

$5.50

5

SPRING, OUTER

09443-19016

$5.89

6

BRACKET, PROP STAND

42330-21H00

$279.80

7

BOLT

09106-12005

$11.80

8

PEDAL, BRAKE

43110-41G00

$128.24

9

SPRING

09443-11033

$4.50

10

HOSE This part replaces 09352-11153-600.

09352-11154-600

$13.05
