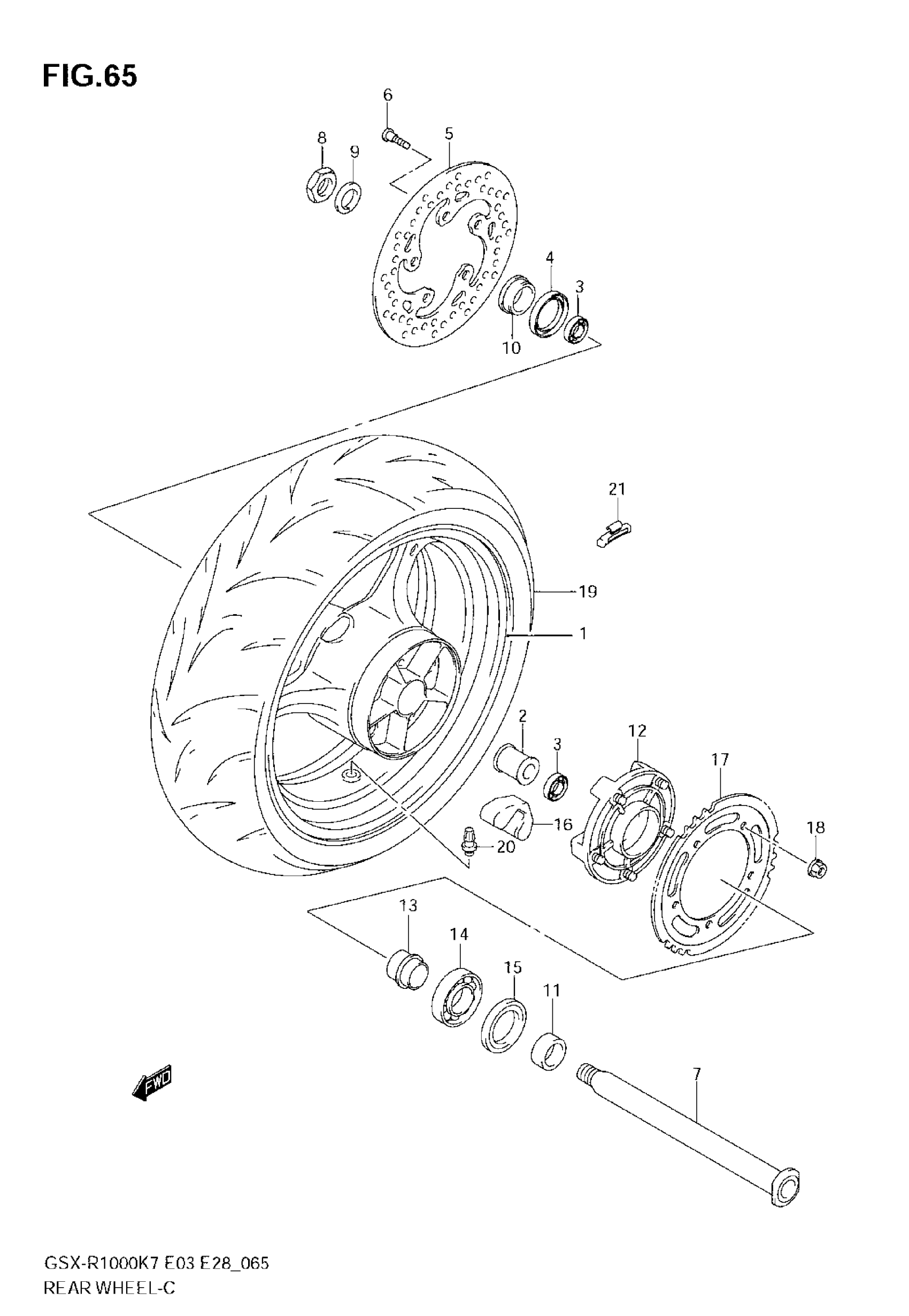

Suzuki GSX-R1000 (2008) REAR WHEEL Diagram

WHEEL, REAR (17M/CXMT6.00) (BLACK) | MODEL K7 MODEL K8 FOR CRU,FGF,FGG

64111-41G00-019

$1,077.40

WHEEL, REAR (17M/CXMT6.00) (BLUE) | MODEL K8 FOR CWH

64111-41G00-YLY

Unavailable

SPACER, HUB BEARING

64731-40F10

$59.62

BEARING This part replaces 09262-28043.

09262-28063

$21.63

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

DISC,RR BRAKE

69211-18G00

$319.08

BOLT

09106-08160

$3.57

AXLE,RR

64711-33E20

$155.98

NUT

09159-25003

$31.85

WASHER

09160-25070

$4.77

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$13.49

SPACER, AXLE LH

64751-40F00

$23.82

DRUM,RR SPROCKET

64610-35F30

$327.08

RETAINER, SPROCKET DRUM

64733-35F00

$26.61

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

SEAL (39X65X7)

09285-39001

$10.62

ABSORBER, HUB SHOCK

64651-35F20

$21.27

SPROCKET, REAR (NT:43)

64511-21H00

$153.62

NUT

08319-3110A

$2.73

TIRE, REAR, 190/50ZR17 M/C (73W)(BRIDGESTONE) | BT015 R RADIAL G

65110-21H00

Unavailable

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER (10G)

43222-73H20

Unavailable

BALANCER (20G)

43224-73H20

Unavailable

BALANCER (30G)

43226-73H20

Unavailable
