Description

Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 14

69100-21H00-999

$637.43

2

PISTON SET

69100-01860

$80.57

3

SEAL SET, PISTON

69102-05880

$18.63

4

SPRING, PAD

69115-44G00

$19.85

5

PIN, BOLT

69105-44G00

$13.86

6

BOOT, AXLE

59112-44B00

$8.52

7

BOLT

69182-44G00

$11.90

8

SLEEVE

69185-44G00

$24.37

9

BOOT, SLEEVE

69186-44G00

$13.01

10

BRACKET

69150-21H00

$123.38

11

RETAINER

69116-44G00

$10.46

12

PIN, PAD

59141-40F00

$36.85

13

BLEEDER

59121-18410

$8.35

14

CAP, BLEEDER PLUG

55156-66310

$4.94

15

PAD & SHIM SET | Includes Item(s) 16 - 17

69101-44820

$66.27

16

.INSULATOR This part replaces 69132-44G00.

69132-44G10

$17.50

17

SHIM

69133-44G00

$11.18

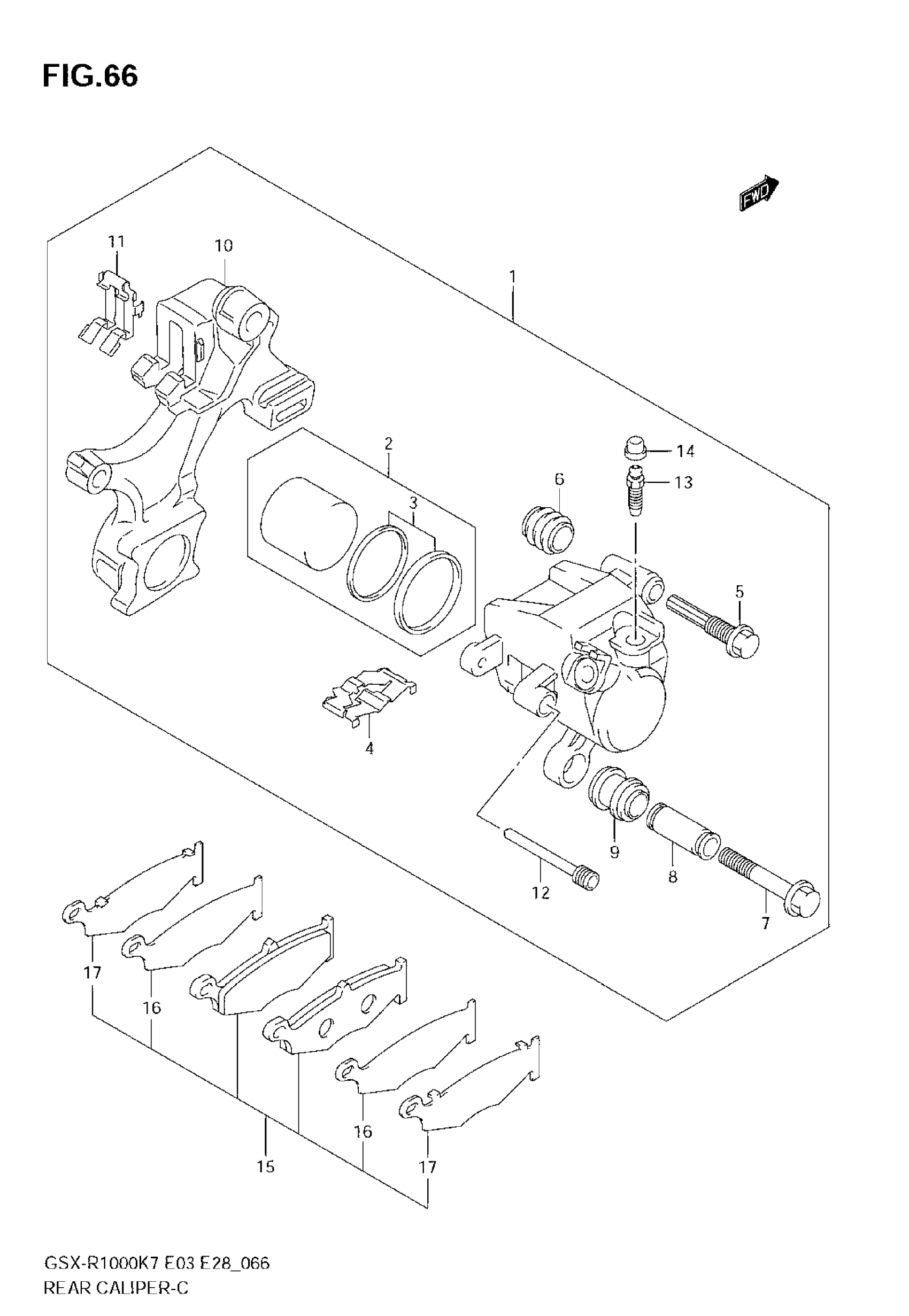

Suzuki GSX-R1000 (2008) REAR CALIPER Diagram
