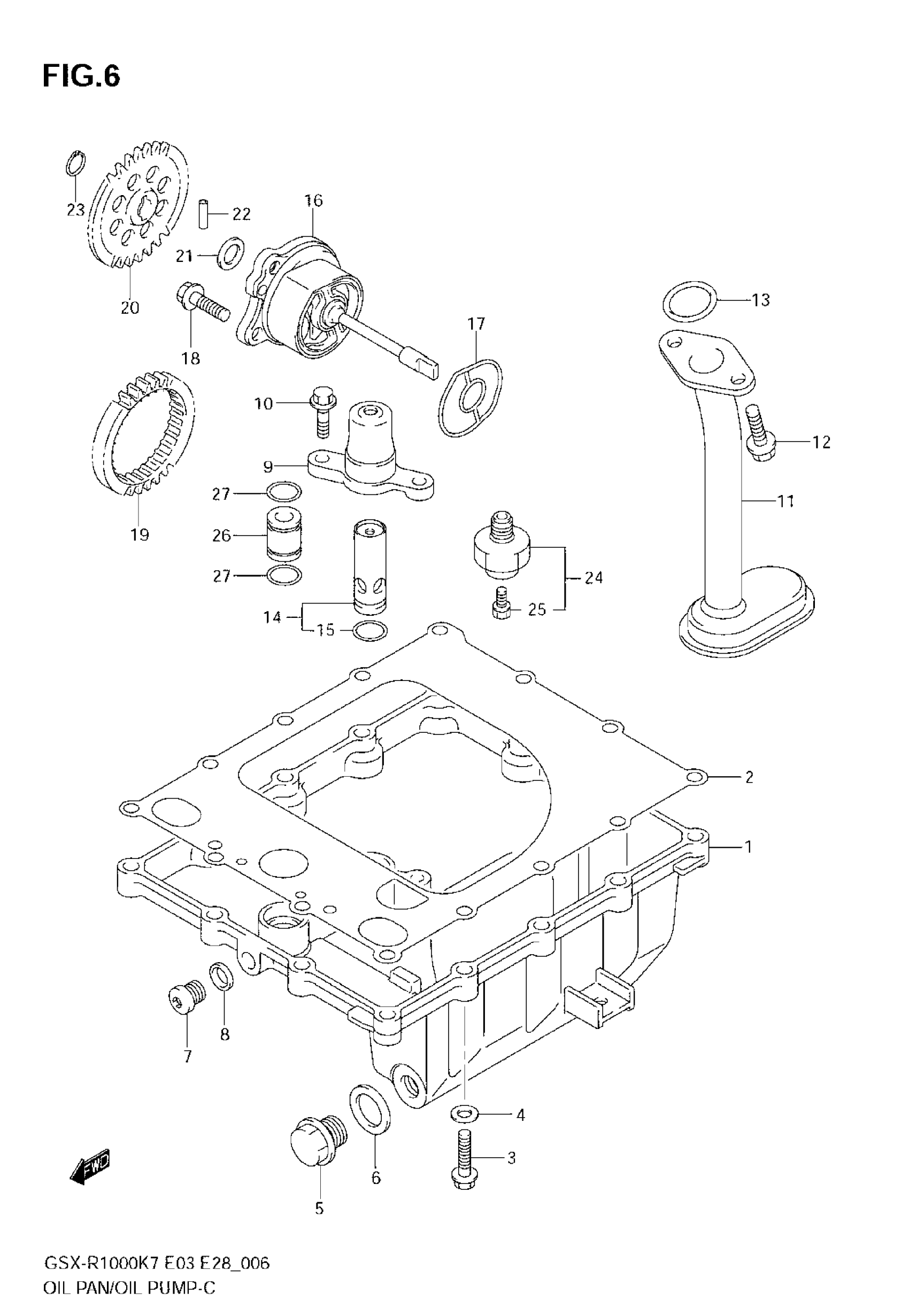

Suzuki GSX-R1000 (2008) OIL PAN - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL This part replaces 11511-21H00.

11511-21H01

$167.39

2

GASKET, OIL PAN

11489-21H00

$19.66

3

BOLT

01547-0625A

$2.01

4

GASKET (5.8X13X1.2)

09168-06023

$2.35

5

PLUG, OIL DRAIN

09247-14036

$6.17

6

GASKET

09168-14002

$2.26

7

PLUG, OIL GALLERY

09248-10010

$4.17

8

GASKET

09168-10002

$2.13

9

CAP, OIL RELIEF VALVE

11512-44G00

$18.71

10

BOLT

01547-0620A

$2.03

11

STRAINER, ENGINE OIL

16520-21H00

$183.67

12

BOLT (6X16)

09106-06099

$2.82

13

O RING (D:2.62,ID:20.3)

09280-19008

$5.50

14

VALVE ASSY, OIL RELIEF | Includes Item(s) 15

16440-24F00

$50.04

15

O RING

09280-13004

$2.17

16

PUMP ASSY, ENGINE OIL

16400-21H00

$194.98

17

O RING

16491-35F00

$6.22

18

BOLT

01547-0620A

$2.03

19

GEAR, OIL PUMP DRIVE

16321-35F01

$69.38

20

GEAR, OIL PUMP DRIVEN

16331-35F00

$74.08

21

WASHER

09181-10158

$1.97

22

PIN

09261-04009

$1.56

23

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

24

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 25 This part replaces 37820-33D10.

37820-33D11

$25.13

25

BOLT

37822-33D00

$4.35

26

PIPE, OIL GALLERY

11281-44G00

$13.85

27

O RING

09280-13004

$2.17
