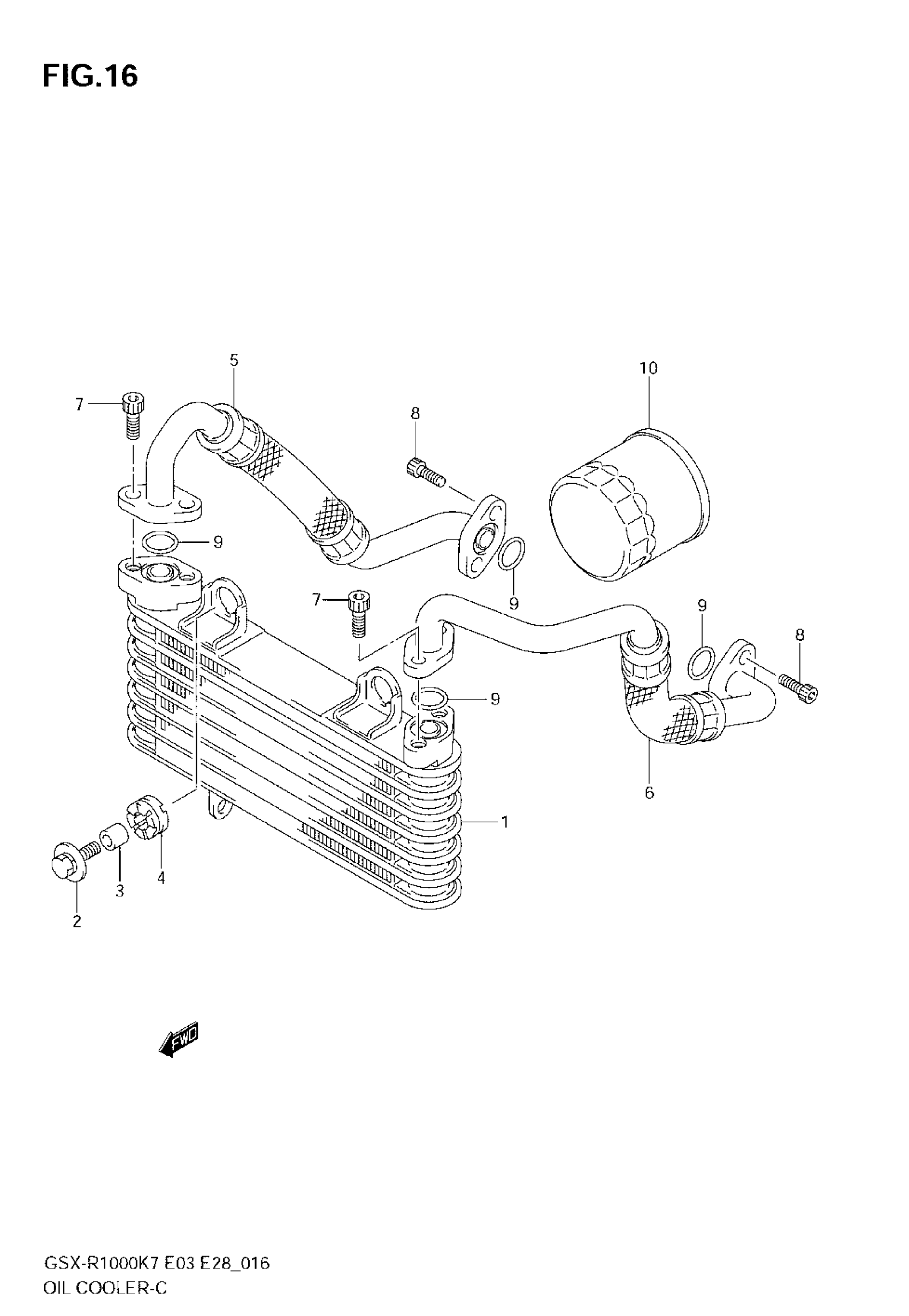

Suzuki GSX-R1000 (2008) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-21H00

$1,011.03

2

BOLT

09118-06097

$2.50

3

SPACER

09180-06310

$1.92

4

CUSHION

09320-10055

$4.12

5

HOSE, OIL COOLER RH

16460-21H00

$203.10

6

HOSE, OIL COOLER LH

16470-21H00

$206.92

7

BOLT

09106-06096

$2.93

8

BOLT, CRANKCASE LOWER

09106-06073

$2.38

9

O RING

09280-15015

$4.42

10

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$11.99
