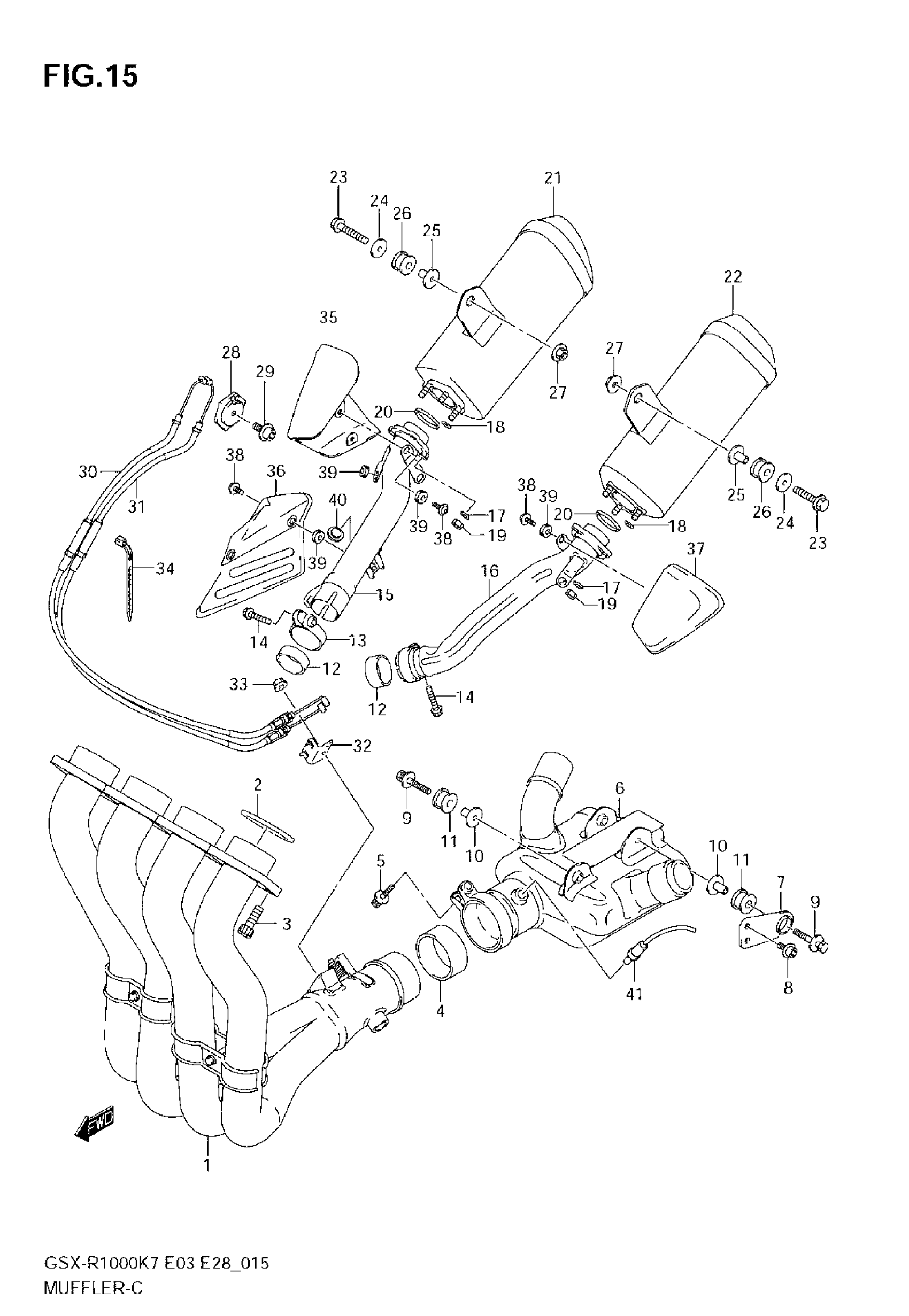

Suzuki GSX-R1000 (2008) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-21H00

Unavailable

2

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

3

BOLT

07130-0825A

$3.04

4

CONNECTOR

14771-21H00

$28.27

5

BOLT

09103-08392

$3.62

6

CHAMBER

14200-21H00

Unavailable

7

BRACKET, CHAMBER

14770-21H00

Unavailable

8

BOLT

07120-0816A

$3.05

9

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

10

SPACER

09180-08152

$5.83

11

CUSHION

09320-12048

$5.11

12

CONNECTOR, JOINT

14771-02F00

$21.84

13

CLAMP

14459-21H10

Unavailable

14

BOLT

09103-08392

$3.62

15

PIPE, JOINT RH

14230-21H00

Unavailable

16

PIPE, JOINT LH

14240-21H00

Unavailable

17

WASHER

09160-08059

$1.68

18

O RING

09280-08012

$3.68

19

NUT

08319-2108A

$2.12

20

GASKET

14181-13A01

$8.07

21

BODY, MUFFLER RH

14310-21H00-H01

Unavailable

22

BODY, MUFFLER LH

14340-21H00-H01

Unavailable

23

BOLT

09103-08358

$3.42

24

WASHER

09160-08142

$2.76

25

SPACER

09180-08152

$5.83

26

CUSHION

09320-12048

$5.11

27

NUT

08361-2508A

$1.97

28

PULLEY, CONTROLLER This part replaces 11269-18G00.

11269-18G01

$28.78

29

BOLT

07120-0516A

$2.28

30

CABLE, EXH VALVE NO.1

11276-21H00

Unavailable

31

CABLE, EXH VALVE NO.2

11277-21H00

Unavailable

32

BRACKET, CABLE

14250-21H00

$9.90

33

NUT

08319-3106A

$2.03

34

CLAMP

09407-14403

$2.26

35

COVER, JOINT RH

14780-21H01

Unavailable

36

COVER, JOINT RH NO.2

14280-21H00

Unavailable

37

COVER, JOINT LH

14790-21H01

Unavailable

38

SCREW

09139-06128

$5.67

39

CUSHION (8.4X18X6)

09320-08066

$8.24

40

CUSHION

09321-10018

$5.45

41

SENSOR, OXY FR This part replaces 18213-15H00.

18213-15H01

$395.90
