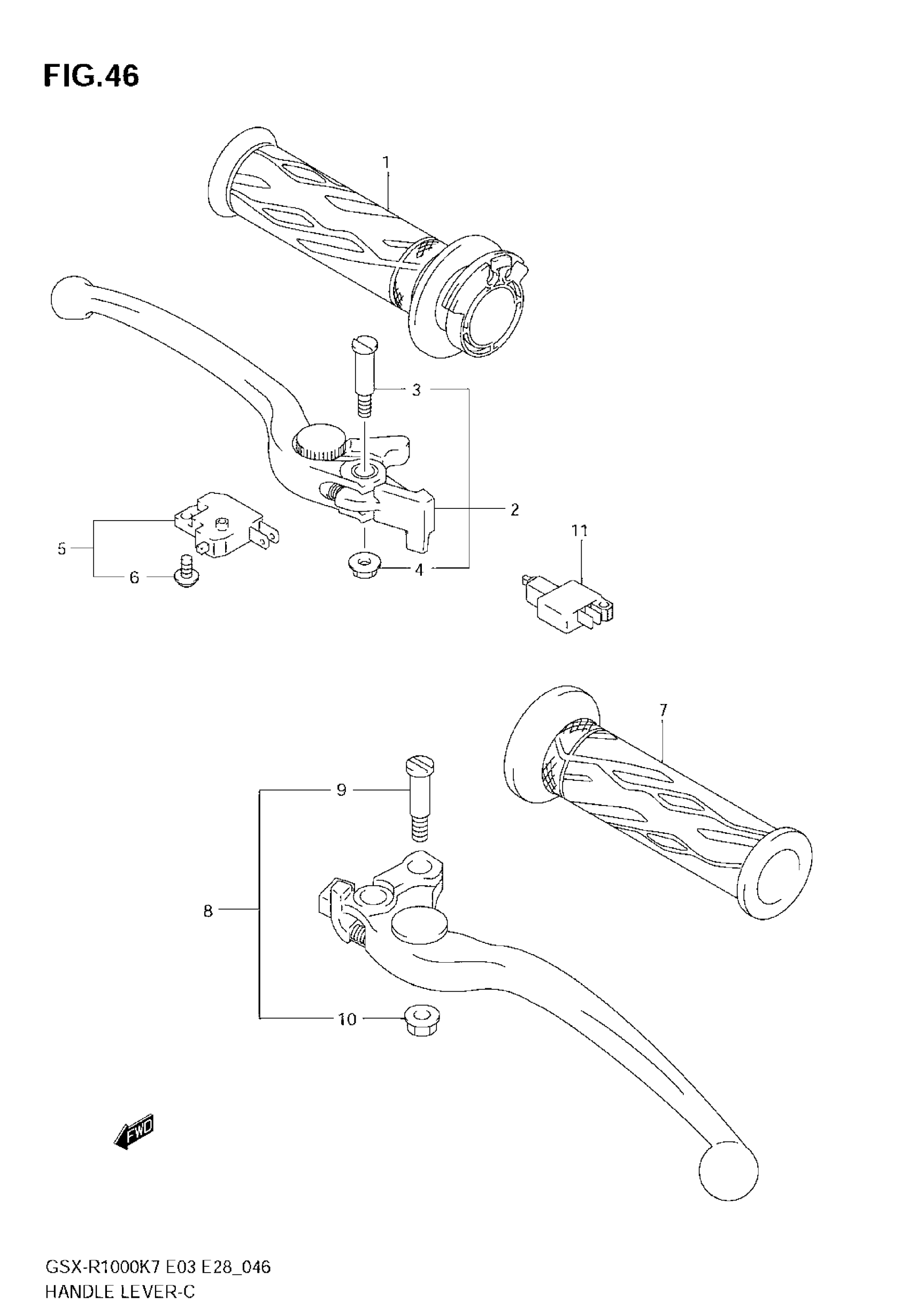

Suzuki GSX-R1000 (2008) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-21H00.

57110-21H02

$20.33

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 4 This part replaces 57300-29G00.

57300-29G01

$77.73

3

BOLT, PIVOT

57431-29G00

$9.31

4

NUT,LEVER PIVOT

57433-09F00

$3.56

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH This part replaces 57211-21H00.

57211-21H01

$11.13

8

LEVER ASSY,CLUT | Includes Item(s) 9 - 10 This part replaces 57500-24F00.

57500-24F01

$52.67

9

BOLT

57431-17C00

$7.11

10

NUT

08316-1006A

$2.19

11

SWITCH ASSY,CLUTCH

57560-02FA0

$23.58
