2008 Suzuki GSX-R1000 Gasket SET Diagram

← All diagrams

Find the part on the Gasket SET diagram for your 2008 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

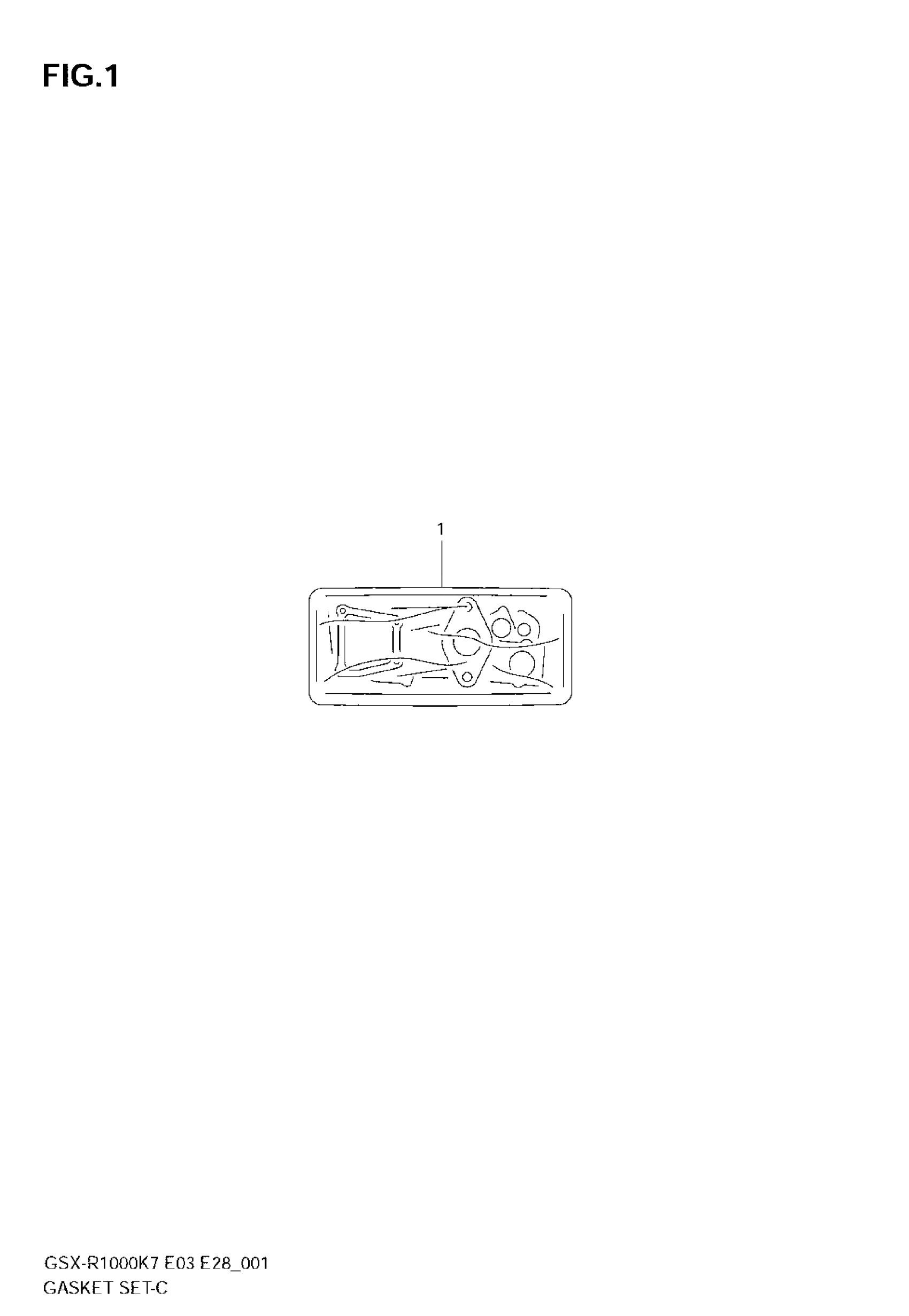

2008 Suzuki GSX-R1000 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT; Includes Item(s) 2 - 16

11400-21882

1
Out of stock

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-21H00

1
Out of stock

3

GASKET, CYLINDER HEAD COVER NO.1 | NOT SHOWN

11173-35F00

1
Out of stock

4

GASKET, CYLINDER HEAD COVER NO.2 | NOT SHOWN

11178-33E00

4
Out of stock

5

COVER, 2ND AIR PASSAGE | NOT SHOWN

11182-35F10

4
Out of stock

6

WASHER, HEAD COVER | NOT SHOWN

11191-27E00

6
Out of stock

7

.GASKET, CLUTCH COVER | NOT SHOWN This part replaces 11482-40F00.

11482-40F10

1
Out of stock

8

GASKET, STARTER CLUTCH COVER | NOT SHOWN

11491-33E02

1
Out of stock

9

GASKET, STARTER IDLE GEAR CAP | NOT SHOWN

11492-33E00

1
Out of stock

10

GASKET, MAGNETO COVER | NOT SHOWN

11483-18G00

1
Out of stock

11

GASKET, BREATHER COVER | NOT SHOWN

11484-35F00

1
Out of stock

12

GASKET, OIL PAN | NOT SHOWN

11489-21H00

1
Out of stock

13

GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-18G00

1
Out of stock

14

.GASKET,EXHAUST PIPE | NOT SHOWN

14181-22D01

4
Out of stock

15

O RING, OIL PUMP | NOT SHOWN

16491-35F00

1
Out of stock

16

O RING, OIL STRAINER | NOT SHOWN

09280-19008

1
Out of stock
