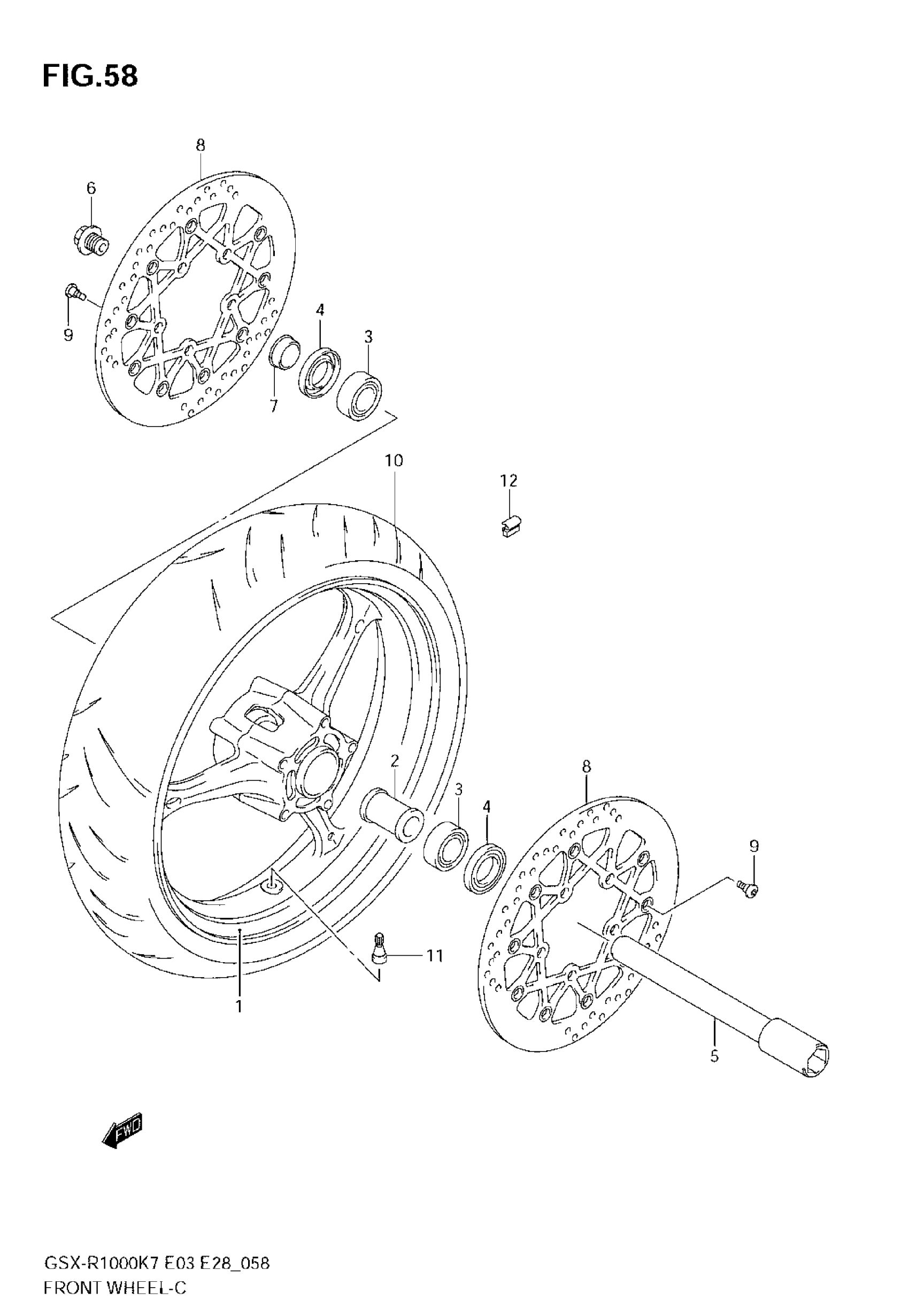

Suzuki GSX-R1000 (2008) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (17M/CXMT3.50) (BLACK) | MODEL K7 MODEL K8 FOR CRU,FGF,FGG

54111-41G10-019

$978.60

1

WHEEL, FRONT (17M/CXMT3.50) (BLUE) | MODEL K8 FOR CWH

54111-41G10-YLY

$1,015.88

2

SPACER,FR HUB BEARING

54731-35F10

$37.45

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE, FRONT

54711-41G00

$161.60

6

BOLT, FRONT AXLE This part replaces 54712-41G00.

54712-41G10

$16.19

7

SPACER, FRONT AXLE, RH This part replaces 54751-41G00.

54751-41G10

$19.66

8

DISC, FRONT BRAKE

59210-41G30

$495.37

9

BOLT

09106-08160

$3.57

10

TIRE, FRONT, 120/70 ZR17M/C (58W)(BRIDGESTONE) | BT015 F RADIAL N

55110-21H00

Unavailable

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

12

BALANCER, WHEEL NO.1

43222-73H20

Unavailable

12

BALANCER, WHEEL NO.2

43224-73H20

Unavailable

12

BALANCER, WHEEL NO.3

43226-73H20

Unavailable
