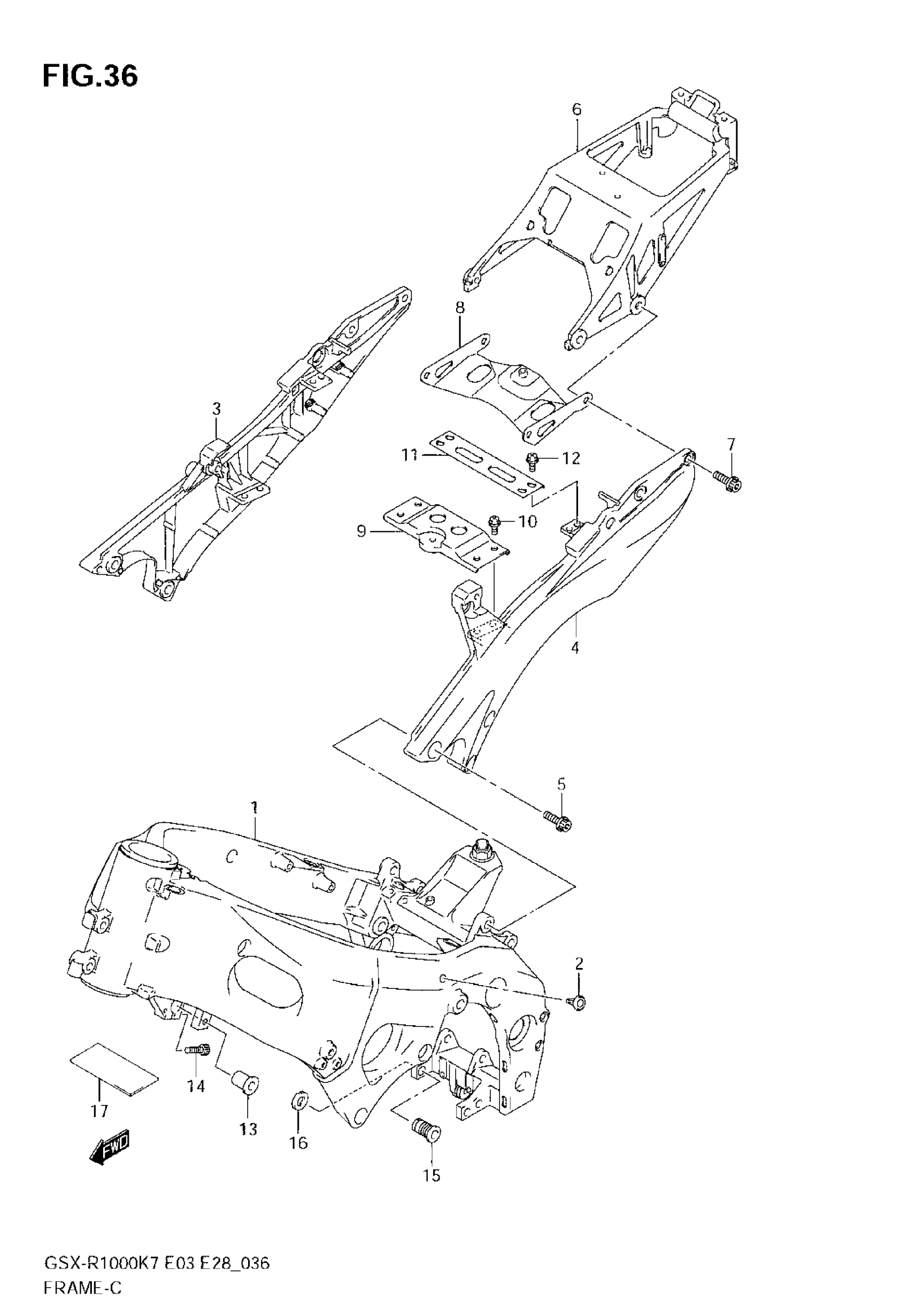

Suzuki GSX-R1000 (2008) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-21H00-YAP

Unavailable

2

PLUG, TANK RAIL

43585-01H01

$4.78

3

RAIL, SEAT RH (BLACK)

41211-21H00-YAP

Unavailable

4

RAIL, SEAT LH (BLACK)

41221-21H00-YAP

Unavailable

5

BOLT, SEAT RAIL

41233-18G10

$10.95

6

BRACKET, PILLION SEAT

41231-41G10

$541.77

7

BOLT

07120-0820A

$3.14

8

BRIDE, SEAT RAIL REAR

41240-01H00

Unavailable

9

BRIDGE,SEAT RAIL FR

41770-01H00

$61.13

10

BOLT

09103-06285

$1.97

11

PLATE, SEAT RAIL UPPER

41251-01H00

$24.75

12

BOLT

09103-06285

$1.97

13

SPACER

41911-40F01

$22.56

14

BOLT

09106-08170

$3.49

15

BOLT, CRANKCASE ADJUST

41921-35F00

$54.83

16

NUT

41922-18G00

$36.72

17

CUSHION, FRAME HEAD

41139-21H00

Unavailable
