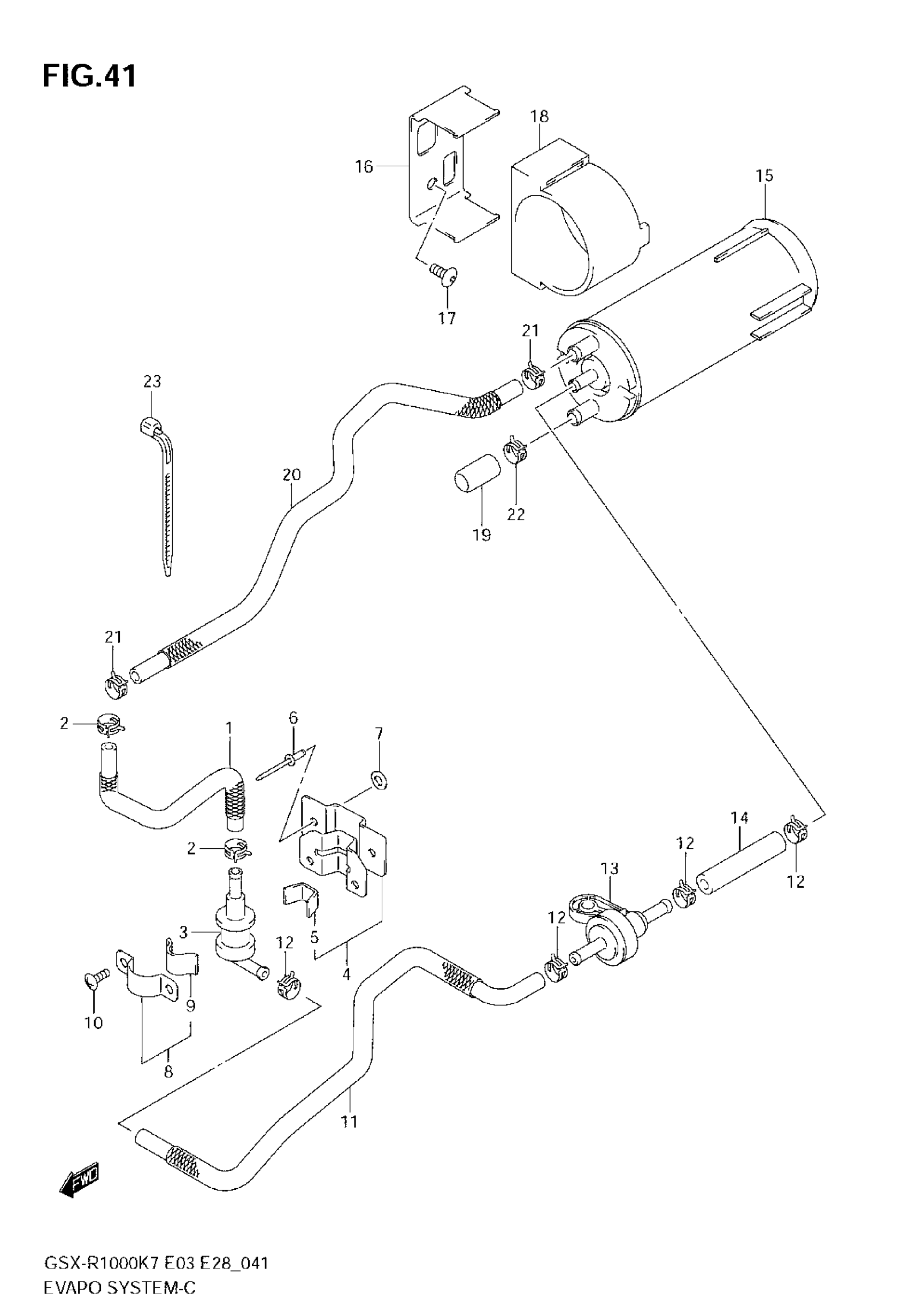

Suzuki GSX-R1000 (2008) EVAPO SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK BREATHER VALVE | MODEL K7

44434-21H00

Unavailable

1

HOSE, TANK BREATHER VALVE | MODEL K8

44434-21H10

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

BRACKET, BREATHER VALVE | Includes Item(s) 5

44890-18G00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

RIVET

09229-04038

$1.49

7

WASHER

08322-0104A

$1.91

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW

02142-0408A

$1.55

11

HOSE, VALVE & 2 WAY VALVE | MODEL K7

44435-41G00

Unavailable

11

HOSE, VALVE & 2 WAY VALVE | MODEL K8

44435-21H00

Unavailable

12

CLIP

09401-11413

$2.26

13

VALVE, 2 WAY

44240-24F00

$64.68

14

HOSE, CANISTER (L:600!40) | MODEL K7

09355-54116-600

$12.06

14

HOSE 2 WAY & CANISTER | MODEL K8

44437-21H00

Unavailable

15

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

16

BRACKET, CANISTER

44881-41G00

Unavailable

17

BOLT, GUARD This part replaces 09139-06055-A05.

09139-06055

$1.49

18

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

$15.22

19

CAP

09251-07005

Unavailable

20

HOSE, PURGE | MODEL K7

44436-21H10

Unavailable

20

HOSE, PURGE | MODEL K8

44436-21H20

Unavailable

21

CLIP

09401-12404

$2.34

22

CLIP

09401-11413

$2.26

23

CLAMP

09407-10404

$2.90
