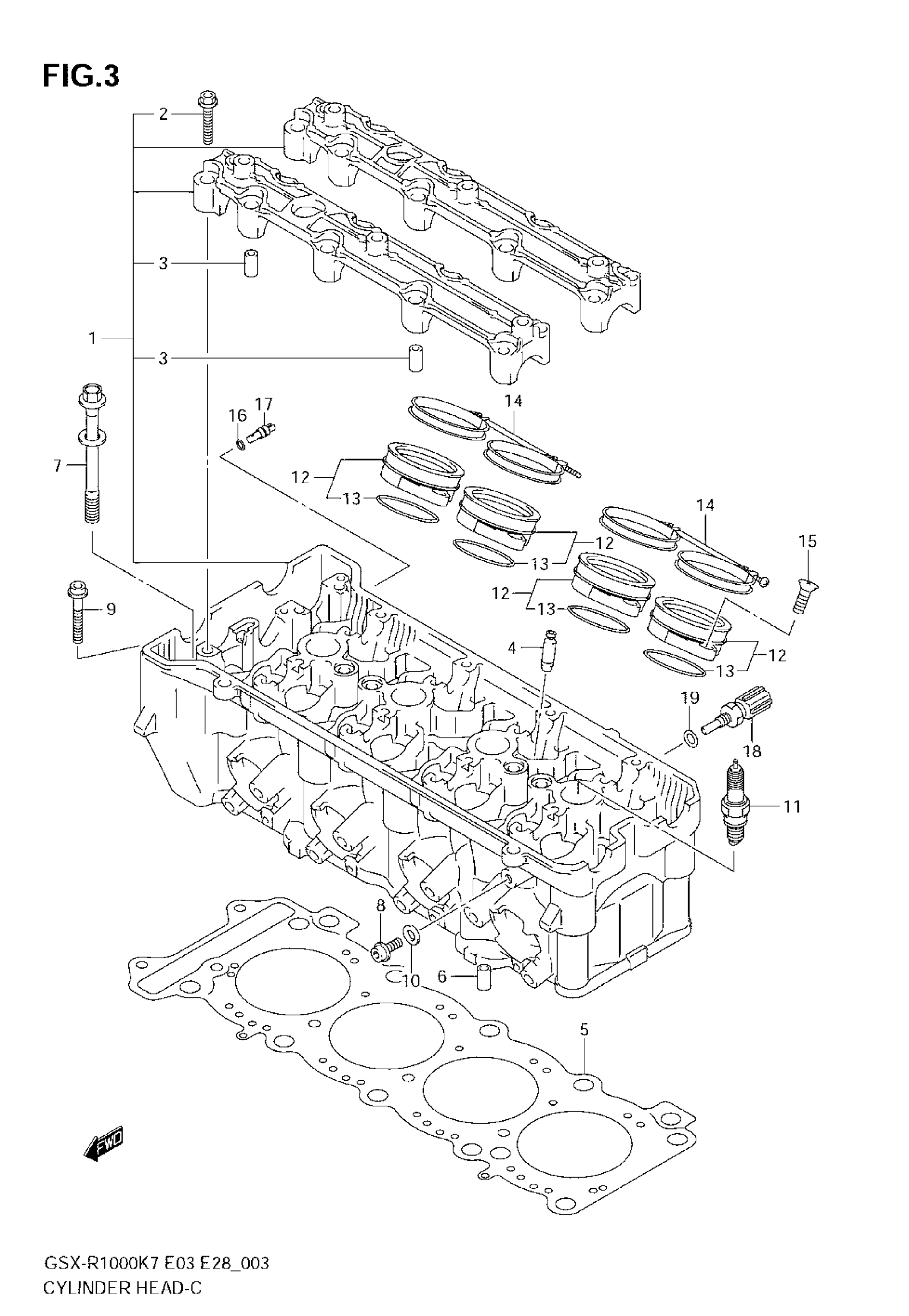

Suzuki GSX-R1000 (2008) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-21H00

$2,536.22

2

BOLT

09103-06266

$2.12

3

PIN

09206-08007

$2.60

4

GUIDE, VALVE (OS 0.3) | OPT

11115-29G70

$32.87

5

GASKET, CYLINDER HEAD

11141-21H00

$89.92

6

PIN

04211-11169

$1.78

7

BOLT

11117-30G00

$9.31

8

BOLT, OIL GALLERY

09103-06222

$2.26

9

BOLT, CYLINDER HEAD

07120-0650A

$3.16

10

GASKET

09168-06023

$2.35

11

SPARK PLUG (NGK,CR9EIA-9)

09482-00558

$12.14

11

SPARK PLUG (DENSO,IU27D)

09482-00557

$16.60

11

SPARK PLUG (NGK,CR8EIA-9) | OPT

09482-00556

$10.85

11

SPARK PLUG (NGK,CR10EIA-9) | OPT

09482-00560

$10.85

11

SPARK PLUG (DENSO,IU24D) | OPT

09482-00555

$17.96

11

SPARK PLUG (DENSO,IU31D) | OPT

09482-00559

$20.10

12

PIPE ASSY, INTA | Includes Item(s) 13 This part replaces 13101-21H00.

13101-21H01

$72.82

13

O RING

09280-48010

$9.66

14

CLAMP This part replaces 13170-15H00.

13170-15H10

$27.09

15

SCREW

02122-0616B

$1.96

16

O RING

09280-04004

$1.91

17

JET, OIL

09493-80005

$16.25

18

SENSOR, WATER TEMPERATURE

13650-10G00

$87.24

19

GASKET

09168-12017

$1.95
