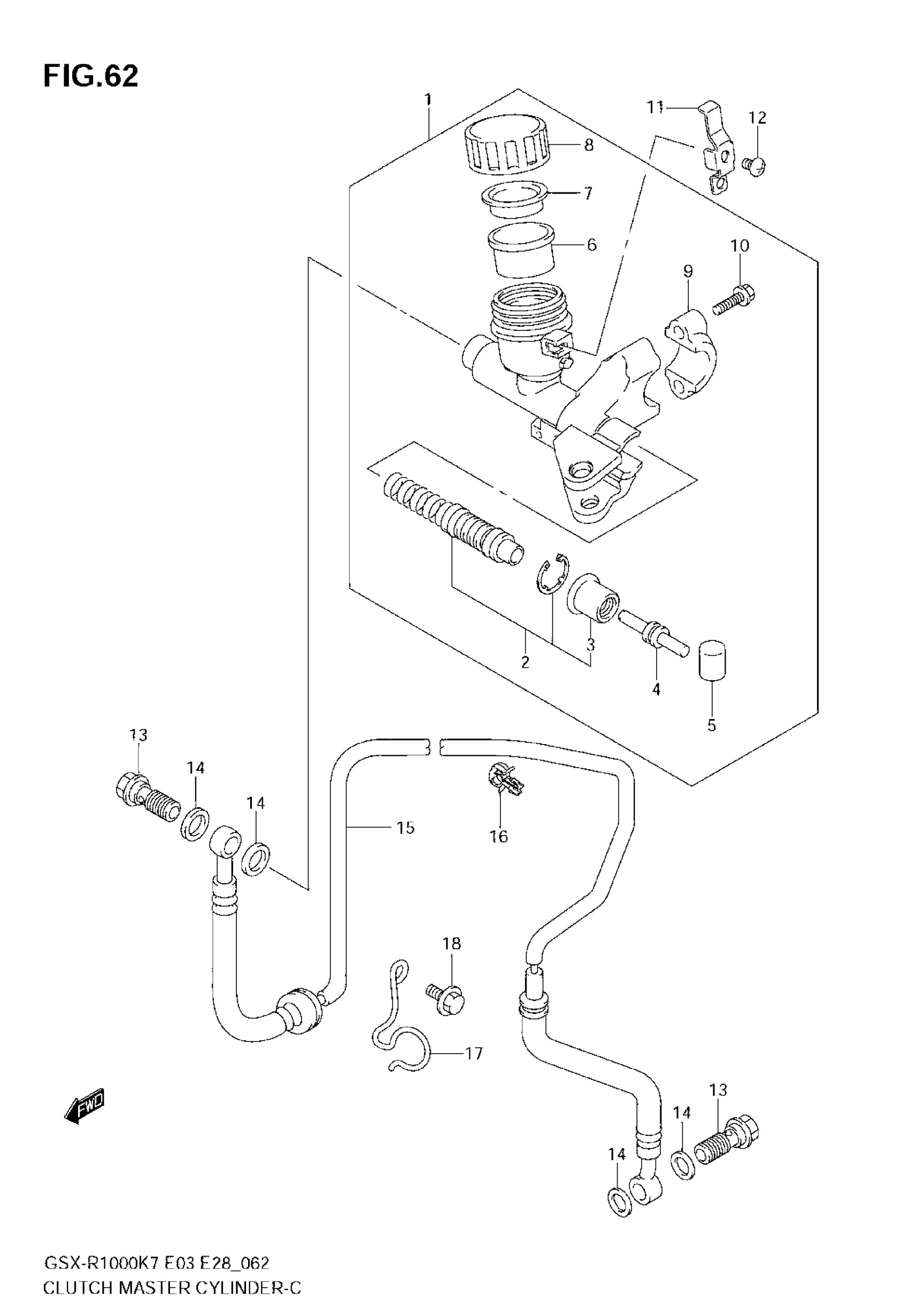

Suzuki GSX-R1000 (2008) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, CLUTCH MASTER | Includes Item(s) 2 - 10

59800-21H00

$274.64

2

PISTON & CUP SET

59800-21810

$39.68

3

BOOT

59666-44300

$5.80

4

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.84

5

BUSH

59892-08A00

$5.05

6

DIAPHRAGM

69667-00B20

$15.68

7

PLATE

69668-00B20

$7.67

8

CAP

69669-03D10

$22.65

9

.HOLDER

59671-36500

$12.21

10

BOLT (6X22)

59675-02FA0

$3.82

11

PLATE, TANK CAP

59743-17C00

$9.31

12

SCREW

02142-0410A

$1.49

13

BOLT (10X1.25X22)

09360-10062

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

HOSE This part replaces 59910-21H00.

59910-21H01

Unavailable

16

CLAMP, CLUTCH HOSE NO.2

09403-10406

Unavailable

17

CLAMP, CLUTCH HOSE NO.1

59915-21H00

Unavailable

18

BOLT

01550-0612A

$1.97
