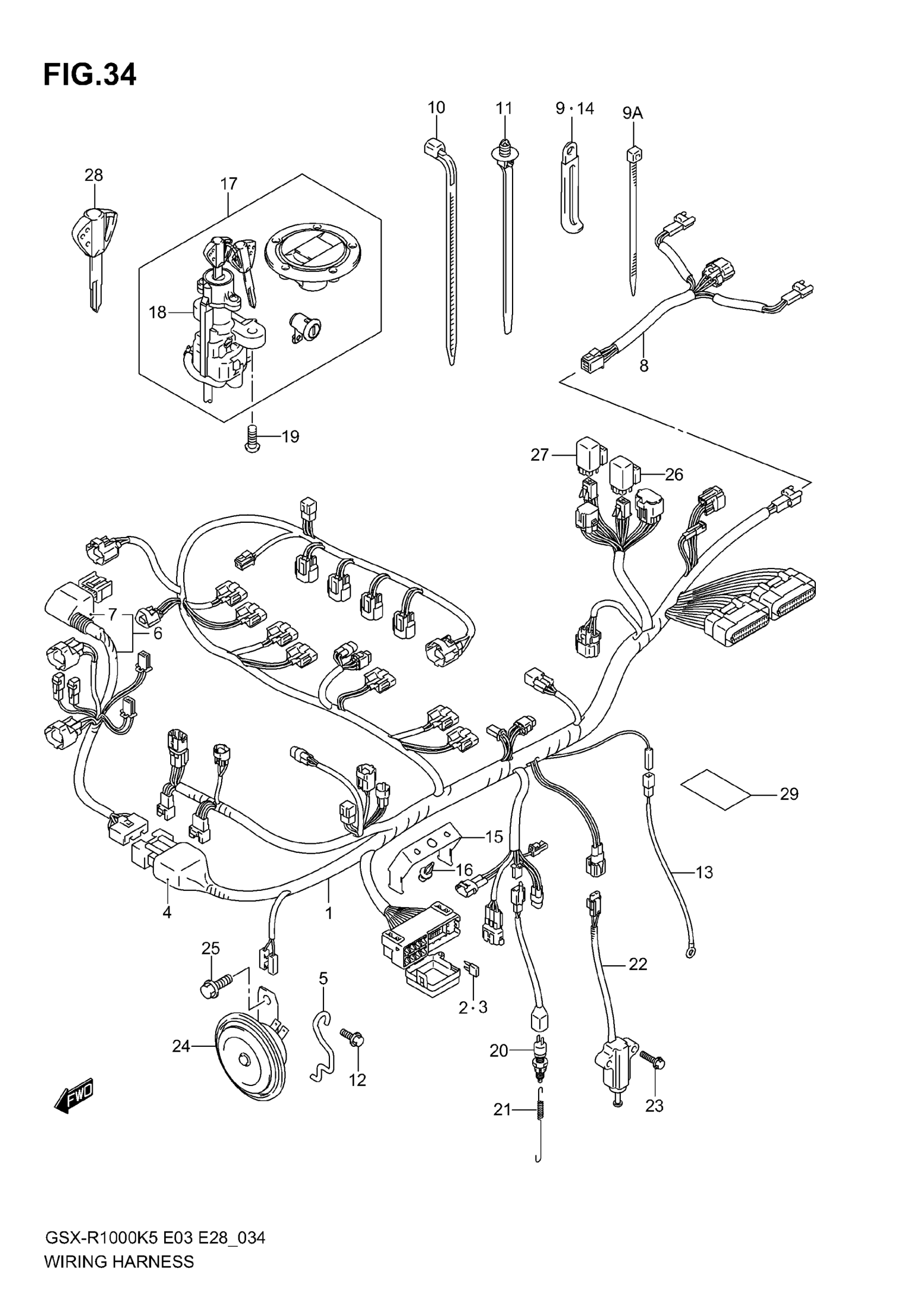

Suzuki GSX-R1000 (2006) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | Includes Item(s) 2 - 4

36610-41G30

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

COVER

36618-41G00

Unavailable

5

GUIDE, WIRING HARNESS

36619-41G00

Unavailable

6

HARNESS, WIRING NO.2 | Includes Item(s) 7

36620-41G00

$236.72

7

COVER

36618-41G00

Unavailable

8

WIRE, REAR COMB

36855-41G00

Unavailable

9

CLAMP (L:45)

09404-06429

$1.83

9A

CLAMP (L:100)

09407-10404

$2.90

10

CLAMP (L:125)

09407-14403

$2.26

10

CLAMP (L:165)

09407-18402

$2.19

11

CLAMP (L:170)

09407-17403

$4.91

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

13

WIRE, OIL PRESSURE SWITCH LEAD

36851-35F00

$16.07

14

CLAMP, OIL PRESS LEAD (L:45)

09404-06429

$1.83

15

BRACKET, FUSE

36744-41G00

Unavailable

16

CLIP, FUSE BRACKET (BLACK)

09409-06314-5PK

$2.78

17

LOCK SET This part replaces 37101-40820.

37101-40824

$277.69

17

LOCK SET | E33; Includes Item(s) 18 This part replaces 37101-40830.

37101-40834

$400.63

18

.LOCK ASSY,STEERING This part replaces 37100-41G10.

37100-41G12

$228.06

19

SCREW, STEERING LOCK (8X20)

09139-08016

$3.37

20

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

21

SPRING, BRAKE LAMP SWITCH

09443-06087

$4.10

22

SWITCH ASSY,SID This part replaces 37840-35F10.

37840-35F12

$75.52

23

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

24

HORN ASSY This part replaces 38501-23E10.

38501-23E11

Unavailable

25

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

26

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

27

RELAY ASSY, FAN MOTOR

38740-24X50

$45.20

28

KEY,BLANK (IMMOBI) | OPT This part replaces 37146-41G10.

37146-41G00

$43.04

29

TAPE,HARNESS (28X50X0.13) | 25X50X0.13

36611-16G00

$3.03
