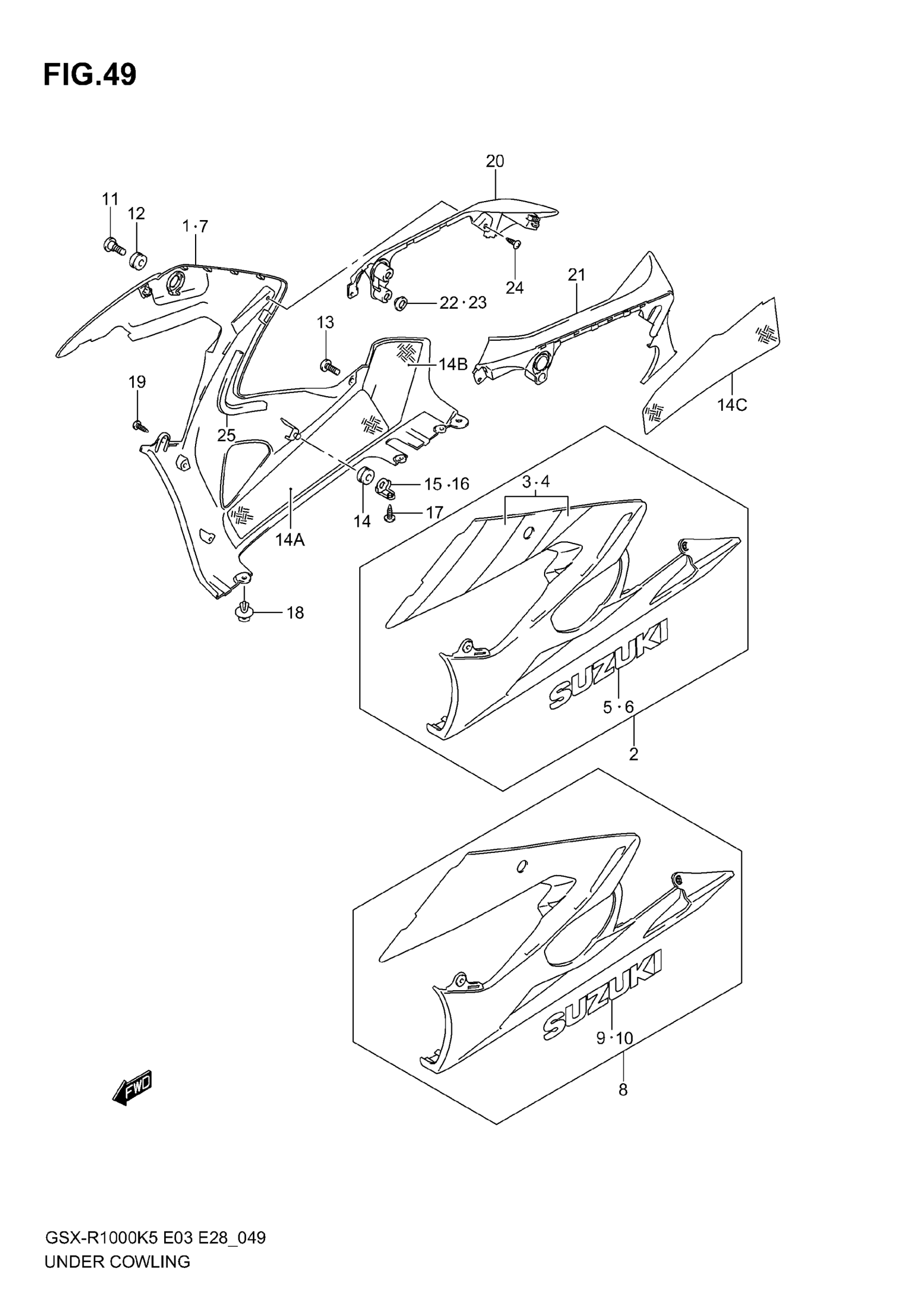

Suzuki GSX-R1000 (2006) UNDER COWLING (MODEL K5) Diagram

#

Description
Price

1

COWL, UNDER RH (WHITE) | FOR LR5

94470-41G10-YBD

Unavailable

1

COWL, UNDER RH (YELLOW) | FOR ATG

94470-41G10-YEC

Unavailable

1

COWL,UNDER,R | FOR CAD This part replaces 94470-41G10-YHG.

94471-41G00

Unavailable

2

COWL,UNDER,L(WH | FOR LR5 This part replaces 94480-41G10-YBD.

94480-41G11-YBD

Unavailable

2

COWL,UNDER,L(YE | FOR ATG This part replaces 94480-41G10-YEC.

94480-41G11-YEC

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR CAD; Includes Item(s) 3 - 6 This part replaces 94480-41G10-YHG.

94480-41G11-YHG

Unavailable

3

TAPE SET, RH | FOR YBD

68180-41G00-CCE

Unavailable

3

TAPE SET, RH | FOR YEC

68180-41G00-CCF

Unavailable

3

TAPE SET, RH | FOR YHG

68180-41G00-CCG

Unavailable

4

TAPE SET, LH | FOR YBD

68190-41G00-CCE

Unavailable

4

TAPE SET, LH | FOR YEC

68190-41G00-CCF

Unavailable

4

TAPE SET, LH | FOR YHG

68190-41G00-CCG

Unavailable

5

EMBLEM, RH (BLACK)

68181-41G00-019

$48.82

6

EMBLEM, LH (BLACK)

68191-41G00-019

$48.82

7

COWL, UNDER RH (BLACK) | FOR CDF

94470-41G20-YAD

Unavailable

8

COWL, UNDER LH (BLACK) | FOR CDF; Includes Item(s) 9 - 10

94480-41G20-YAD

Unavailable

9

EMBLEM, RH (GRAY)

68181-41G00-YU8

Unavailable

10

EMBLEM, LH (GRAY)

68191-41G00-YU8

Unavailable

11

SCREW, UPPER

09139-06126

$3.65

12

CUSHION

09320-09016

$1.97

13

SCREW, REAR

09139-05064

$2.56

14

CUSHION, CENTER

09320-08028

$2.80

14A

SHIELD, FRONT RH

94472-41G00

$25.87

14B

SHIELD, FRONT RH

94472-41G10

$17.20

14C

SHIELD, LH

94482-41G00

$50.72

15

BRACKET, RH

94530-41G00

Unavailable

16

BRACKET, LOWER RH This part replaces 94540-41G00.

94540-41G01

$14.00

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

18

CLIP

94479-35F00

$5.14

19

SCREW This part replaces 03541-05163.

03541-0516A

$1.37

20

COVER,UNDER COW This part replaces 94475-41G00.

94475-41G01

$85.18

21

COVER,UNDER COW This part replaces 94485-41G00.

94485-41G01

$96.15

22

CUSHION, LH

09321-10018

$4.19

23

CUSHION, RH

09321-10040

$15.80

24

SCREW This part replaces 03541-05163.

03541-0516A

$1.37

25

CUSHION, UNDER COWL RH

94476-41G00

$11.83
