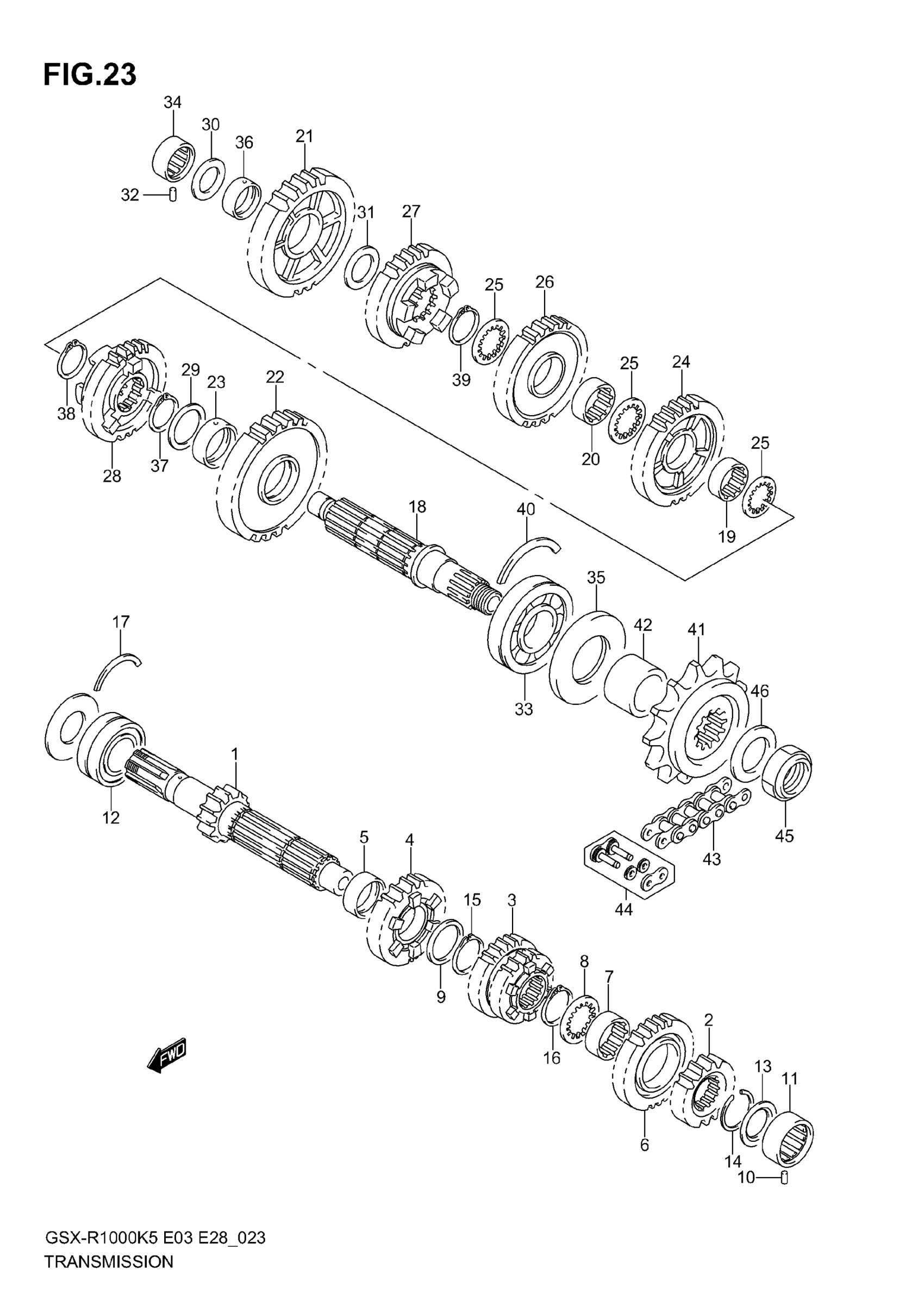

Suzuki GSX-R1000 (2006) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, CNTR (NT:16) This part replaces 24120-40F20.

24120-40F21

$330.40

2

GEAR,2ND DRIVE (NT:19) This part replaces 24221-40F20.

24221-40F30

$118.08

3

GEAR, 3RD & 4TH DRIVE | NT:21/24 This part replaces 24231-40F20.

24231-40F40

$172.78

4

GEAR, 5TH DRIVE (NT:25) This part replaces 24251-40F20.

24251-40F40

$137.67

5

BUSH, 5TH DRIVE GEAR

24252-35F00

$24.72

6

GEAR, 6TH DRIVE (NT:26) This part replaces 24261-40F20.

24261-40F30

$137.67

7

BUSH, 6TH DRIVE GEAR

24262-35F00

$28.62

8

WASHER, 6TH DRIVE GEAR

09167-27003

$6.80

9

WASHER, 5TH DRIVE GEAR | 27X36X2.5

09181-27014

$6.32

10

PIN, COUNTER SHAFT BEAR

09261-06003

$1.49

11

BEARING, COUNTER SHAFT | 20X34X13.5

09263-20087

$42.65

12

BEARING, CNTR SHAFT, R

09267-25013

$106.33

13

SEAT, OIL

09285-20006

$6.51

14

CIRCLIP, 2ND DRIVE GEAR

09380-27004

$3.70

15

CIRCLIP, 5TH DRIVE GEAR

09380-27006

$2.73

16

CIRCLIP, 6TH DRIVE GEAR

09380-27006

$2.73

17

C-RING, CNTR SHAFT BRG, R

09390-58001

$3.42

18

SHAFT, DRIVE

24131-40F00

$326.27

19

BUSH, 3RD DRIVEN GEAR

24262-17E01

$38.62

20

BUSH, 4TH DRIVEN GEAR

24262-17E01

$38.62

21

GEAR, 1ST DRIVEN (NT:41) This part replaces 24311-40F20.

24311-40F30

$139.45

22

GEAR, 2ND DRIVEN (NT:39) This part replaces 24321-40F20.

24321-40F50

$120.93

23

BUSH, 2ND DRIVEN GEAR

24322-02F01

$21.52

24

GEAR,3RD DRIVEN (NT:36) This part replaces 24331-40F20.

24331-40F30

$167.85

25

WASHER, 3RD & 4TH DRIVEN GEAR

24333-02F00

$4.99

26

GEAR,4TH DRIVEN (NT:36)

24341-40F20

$175.18

27

GEAR, 5TH DRIVEN (NT:34) This part replaces 24351-40F20.

24351-40F40

$139.45

28

GEAR, 6TH DRIVEN (NT:33) This part replaces 24361-40F20.

24361-40F30

$142.63

29

WASHER, 2ND DRIVEN GEAR | 27X36X1.0

09160-27008

$3.68

30

WASHER, 1ST DRIVEN GEAR | 20X34X1.0

09181-20251

$2.79

31

WASHER, 1ST DRIVEN GEAR | 22X34X1

09181-22223

$3.12

32

PIN, DRIVE SHAFT BEARING | 6X10

09261-06003

$1.49

33

BEARING, DRIVE SHAFT, L | 28X70X18

09262-28025

$150.62

34

BEARING, DRIVE SHAFT, R | 20X34X13.5

09263-20087

$42.65

35

SEAL, DRIVE SHAFT OIL | 34.8X70X6

09283-36008

$21.28

36

BUSH, 1ST DRIVEN GEAR

24312-02F00

$28.15

37

CIRCLIP, 2ND DRIVEN GEAR

09380-27006

$2.73

38

CIRCLIP, 3RD DRIVEN GEAR

09380-27006

$2.73

39

CIRCLIP, 4TH DRIVEN GEAR

09380-27006

$2.73

40

C-RING, DRIVE SHAFT BRG, L

09390-70001

$9.77

41

SPROCKET, ENGINE (NT:17)

27510-21A31

$97.15

42

SPACER, ENGINE SPROCKET | 25X36X18.6

27531-40F00

$28.62

43

CHAIN,DRIVE (DI This part replaces 27600-40F10-110.

27600-40F21-110

Unavailable

44

JOINT SET, DRIVE CHAIN | OPT

27620-40F10

$23.88

45

NUT, ENGINE SPROCKET

09159-20004

$15.67

46

WASHER, ENGINE SPROCKET | 25X40X1.4

09160-25035

$4.35
