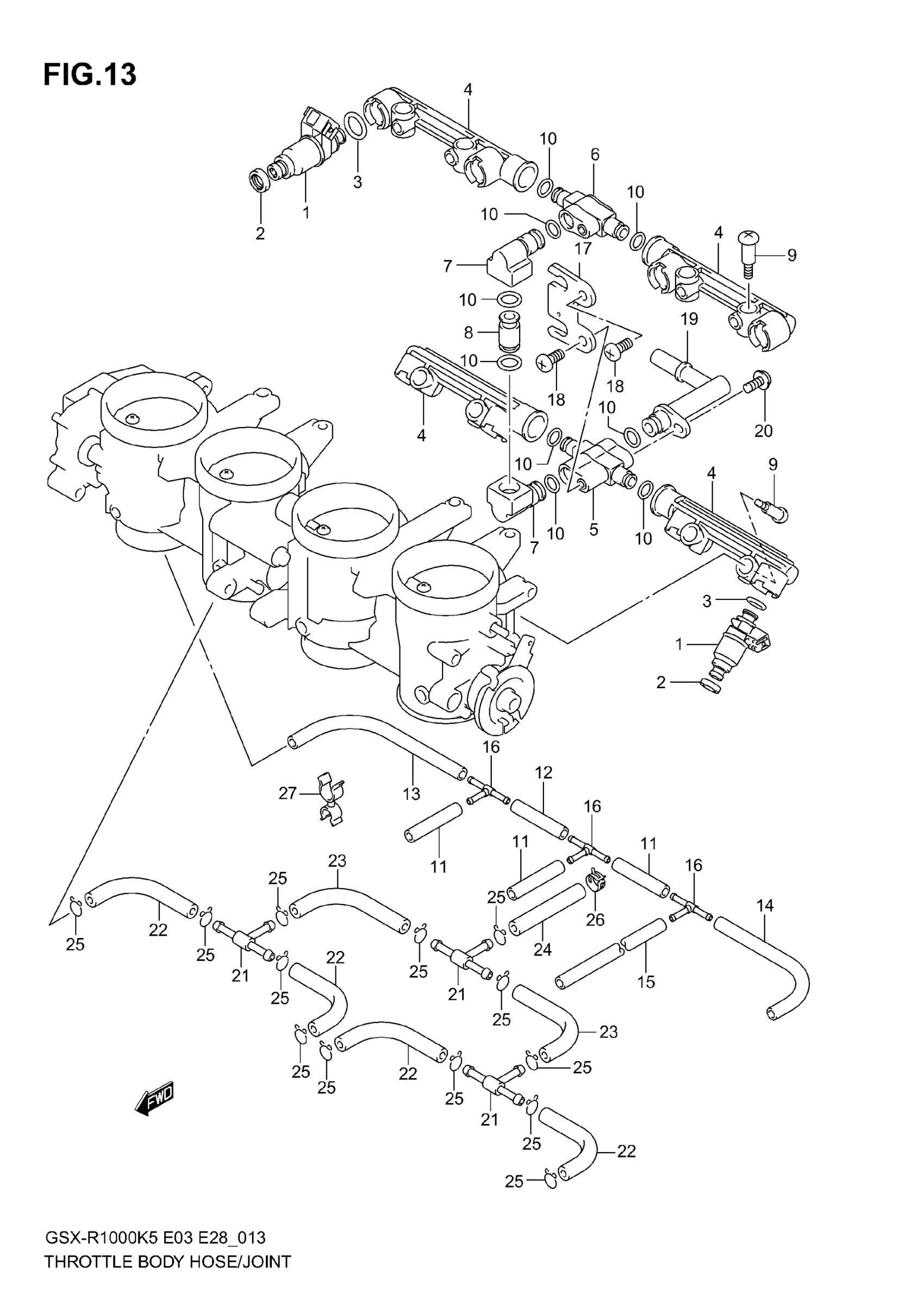

Suzuki GSX-R1000 (2006) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

INJECTOR ASSY

15710-10G00

$321.43

2

O RING

15722-10G00

$11.25

3

O-RING

15721-10G00

$9.09

4

PIPE, FUEL

13471-41G00

Unavailable

5

PIPE, FUEL

13471-41G10

Unavailable

6

PIPE, FUEL

13471-41G20

Unavailable

7

L JOINT

13685-41G00

Unavailable

8

JOINT

13474-41G00

Unavailable

9

SCREW

13601-35F00

$7.50

10

.O-RING

15721-24F00

$9.09

11

HOSE,RUBBER(L:3 This part replaces 13697-24F00.

13697-24F01

$2.82

12

HOSE, RUBBER (L:70)

13697-41G00

$11.78

13

HOSE,RUBBER(L:1 This part replaces 13697-24F20.

13697-24F21

$3.47

14

HOSE, RUBBER (L:55)

13697-41G10

Unavailable

15

HOSE, RUBBER (L:130)

13697-41G20

Unavailable

16

JOINT, LH This part replaces 13471-24F00.

13471-35F00

Unavailable

17

PLATE

13428-41G00

Unavailable

18

SCREW

13602-14F60

Unavailable

19

L JOINT

13473-41G00

Unavailable

20

SCREW

13601-41G00

Unavailable

21

JOINT | E33

13471-40F50

Unavailable

22

PIPE | E33

13681-40F50

Unavailable

23

PIPE | E33

13682-40F50

Unavailable

24

PIPE | E33

13683-40F50

Unavailable

25

CLIP | E33

13671-26E20

Unavailable

26

CLIP (ID:9.4,H:8) | E33

09401-09403

$2.03

27

CLIP | E33

09408-00069

Unavailable
