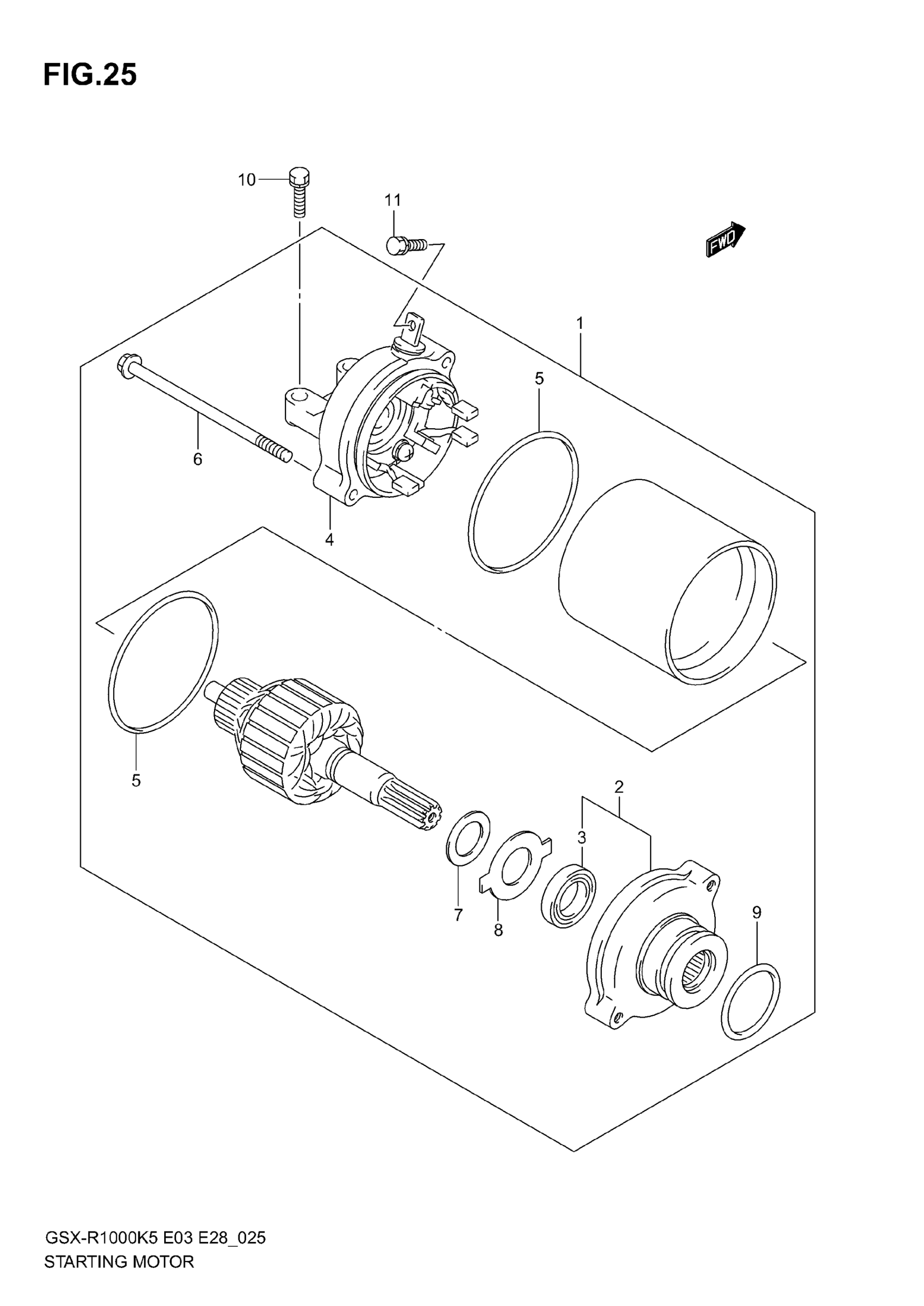

Suzuki GSX-R1000 (2006) STARTING MOTOR Diagram

MOTOR ASSY, STARTING | Includes Item(s) 2 - 9

31100-40F00

$675.37

HOUSING ASSY This part replaces 31150-40F00.

31150-40F01

Unavailable

OIL SEAL

31153-49210

$24.20

FRAME ASSY

31175-40F01

$151.08

O RING

31264-32C10

$14.20

BOLT

31281-40F00

Unavailable

PLATE

31361-32C10

Unavailable

SHIM

31361-38300

Unavailable

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

BOLT This part replaces 09128-06006.

09128-06057

$1.65

SCREW, STARTING MOTOR (5X8)

09137-05004

$2.17
