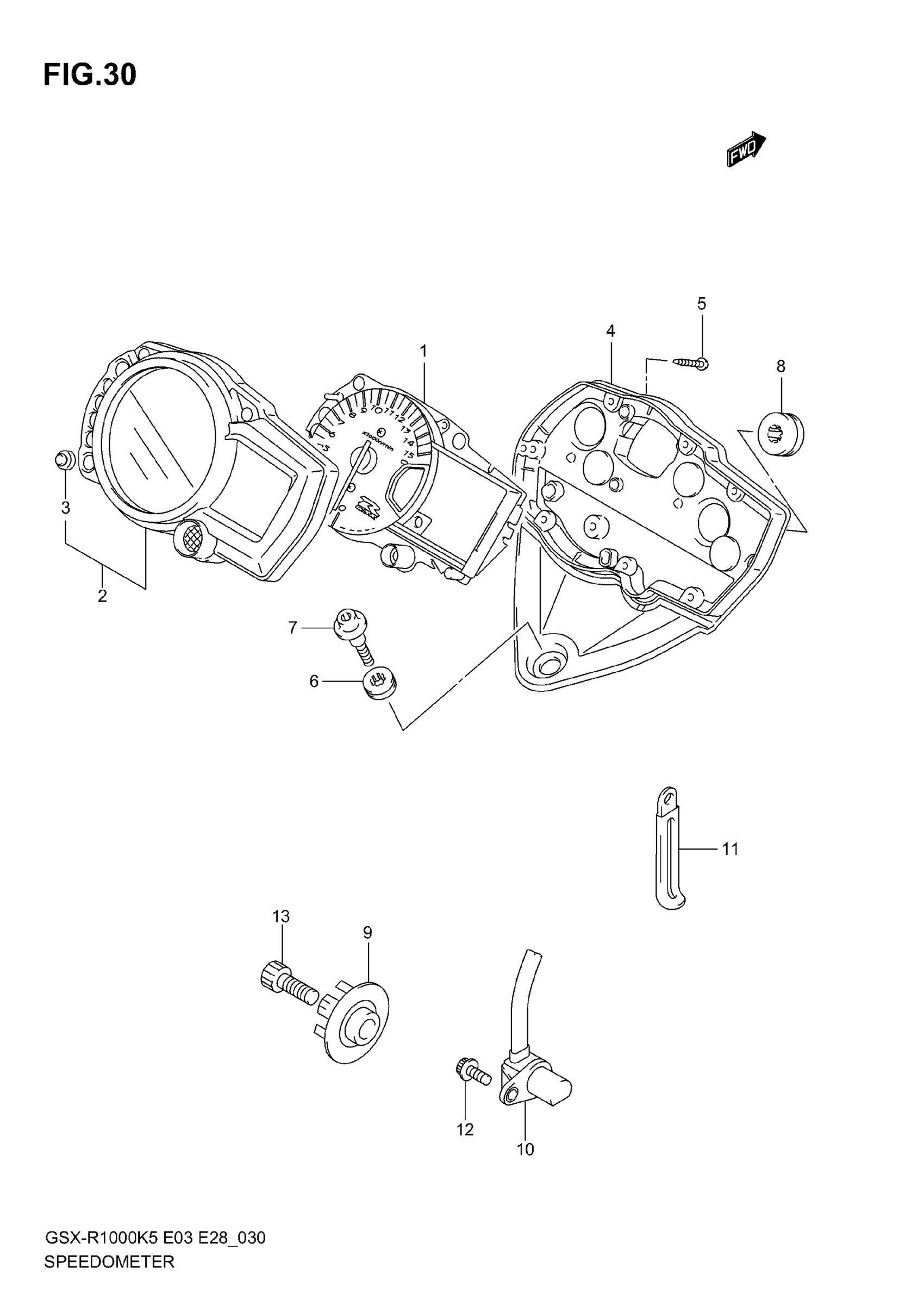

Suzuki GSX-R1000 (2006) SPEEDOMETER Diagram

#

Description
Price

1

SPEED & TACHOMETER ASSY (MILE/KILO)

34120-41G20

Unavailable

1

SPEED & TACHOMETER ASSY (KILO) | E28

34120-41G30

Unavailable

2

UPPER CASE | Includes Item(s) 3

34150-41G20

Unavailable

3

SWITCH, RUBBER

34124-39G00

$8.42

4

LOWER CASE

34111-41G00

Unavailable

5

SCREW (3X16)

34383-35F00

$3.23

6

CUSHION, RUBBER

34955-33E00

$3.56

7

SCREW, SPEEDOMETER

34149-18G00

$2.53

8

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

9

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

$17.92

10

SENSOR, SPEED

34990-35F00

$127.72

11

CLAMP, SENSOR (L:45)

09404-06429

$1.83

12

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

13

BOLT This part replaces 07130-08253.

07130-0825B

$3.37
