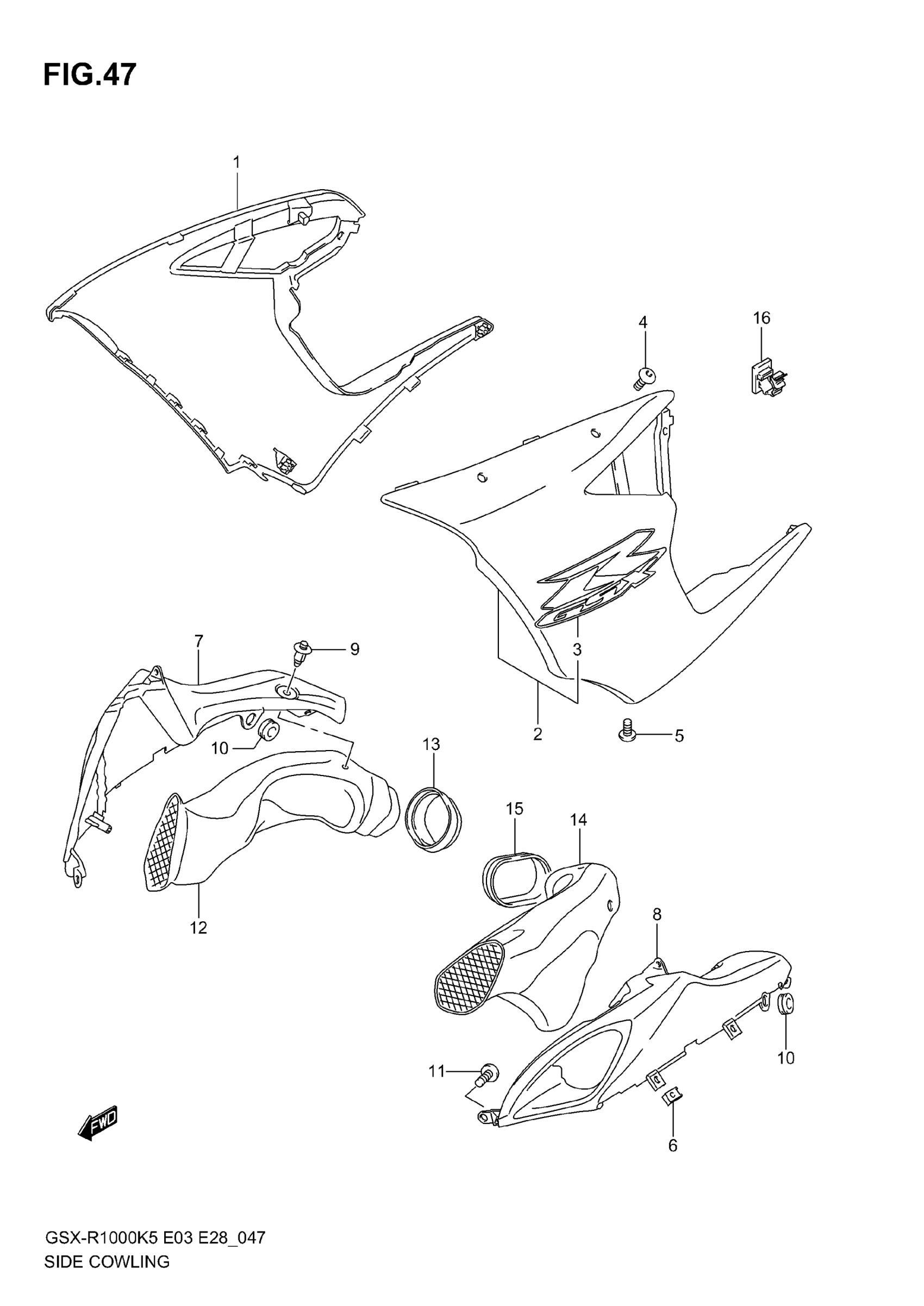

Suzuki GSX-R1000 (2006) SIDE COWLING (MODEL K5) Diagram

#

Description
Price

1

COWL, SIDE RH (BLUE) | FOR LR5

94430-41G00-YBB

Unavailable

1

COWL, SIDE RH (BLACK) | FOR ATG,CAD

94430-41G00-019

Unavailable

1

COWL, SIDE RH (BLACK) | FOR CDF

94430-41G00-1TX

Unavailable

2

COWL, SIDE LH (BLUE) | FOR LR5

94440-41G00-YBB

Unavailable

2

COWL, SIDE LH (BLACK) | FOR ATG,CAD

94440-41G00-019

Unavailable

2

COWL, SIDE LH (BLACK) | FOR CDF; Includes Item(s) 3 - 3

94440-41G00-1TX

Unavailable

3

EMBLEM, "GSXR" | FOR LR5,ATG,CAD

68681-41G00-LW1

$33.37

3

EMBLEM, "GSXR" | FOR CDF

68681-41G00-CER

Unavailable

4

SCREW, UPPER

09139-05064

$2.56

5

SCREW, LOWER

09132-05053

$2.26

6

NUT COWL

94484-24F00

$3.63

7

COVER, INTAKE RH (GRAY) | FOR LR5,ATG,CAD

94670-41G00-YHF

$241.17

7

COVER, INTAKE RH (BLACK) | FOR CDF

94670-41G00-YAD

Unavailable

8

COVER, INTAKE LH (GRAY) | FOR LR5,ATG,CAD

94680-41G00-YHF

Unavailable

8

COVER, INTAKE LH (BLACK) | FOR CDF

94680-41G00-YAD

Unavailable

9

CLIP

09409-07333

$2.29

10

CUSHION

09320-08028

$2.80

11

SCREW

09132-05050

$1.89

12

PIPE, AIR INTAKE RH

94420-41GA0

Unavailable

13

MOLDING, RH

94423-41G00

$27.55

14

PIPE, AIR INTAKE LH

94420-41GB0

Unavailable

15

MOLDING, LH

94433-41G00

$27.55
