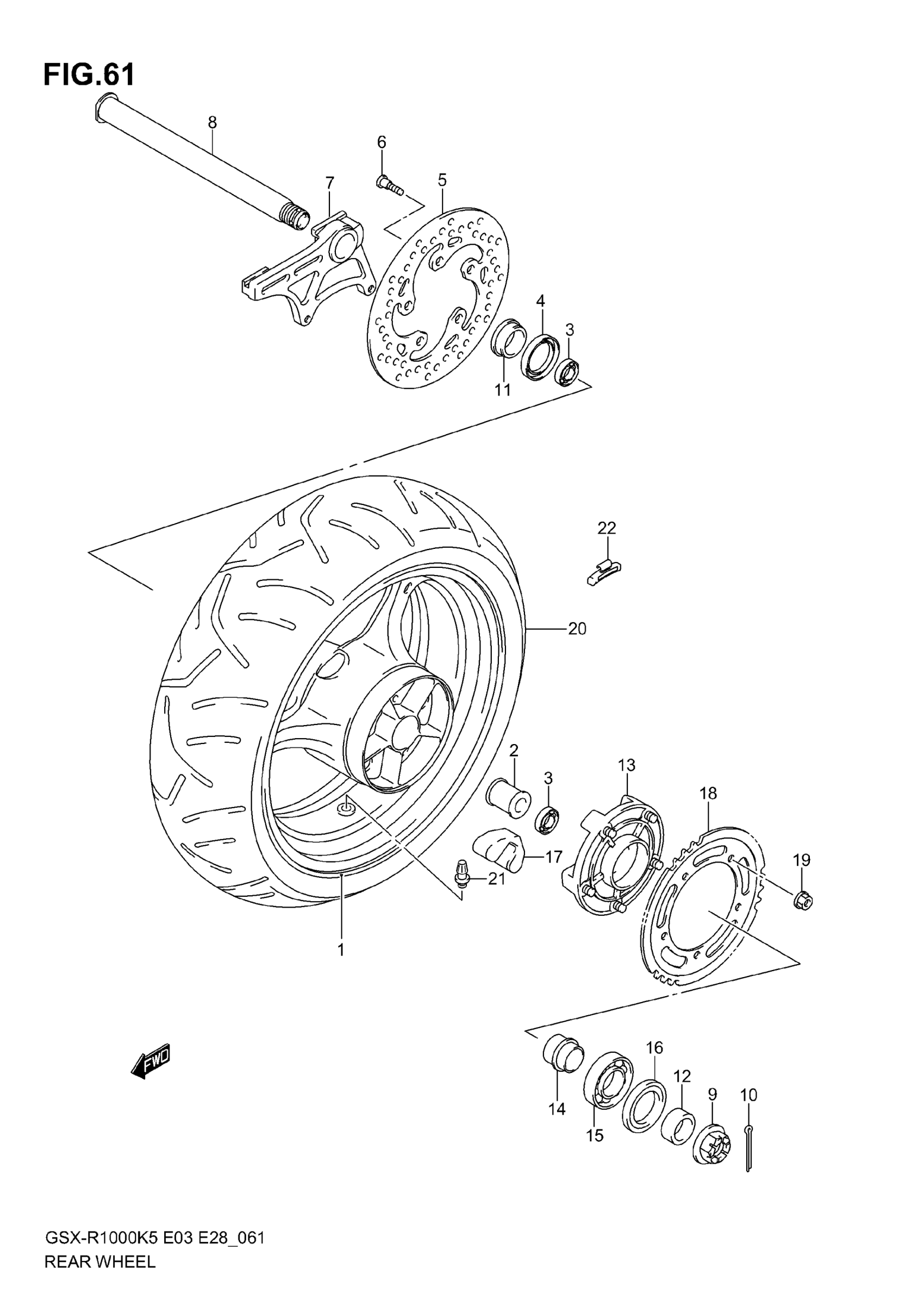

Suzuki GSX-R1000 (2006) REAR WHEEL Diagram

WHEEL, REAR (17M/CXMT6.00) (BLACK)

64111-41G00-019

$1,077.40

SPACER, HUB BEARING

64731-40F10

$59.62

BEARING This part replaces 09262-28043.

09262-28063

$21.63

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

DISC,RR BRAKE

69211-18G00

$319.08

BOLT

09106-08160

$3.57

BRACKET, REAR CALIPER

69721-41G00

Unavailable

AXLE, REAR

64711-33E30

Unavailable

NUT

09141-25001

$23.94

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$13.49

SPACER, AXLE LH

64751-40F00

$23.82

DRUM,RR SPROCKET

64610-35F30

$327.08

RETAINER, SPROCKET DRUM

64733-35F00

$26.61

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

SEAL (39X65X7)

09285-39001

$10.62

ABSORBER, HUB SHOCK

64651-35F20

$21.27

SPROCKET, REAR (NT:42)

64511-40F10

$93.37

NUT

08319-31107

$2.73

TIRE, REAR, 190/50ZR17 M/C (73W) | BRIDGESTONE BT014 R RADIAL E

65110-41G10

Unavailable

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER (10G)

43222-73H10

$5.82

BALANCER (20G)

43224-73H10

$5.50

BALANCER (30G)

43226-73H10

$6.42
