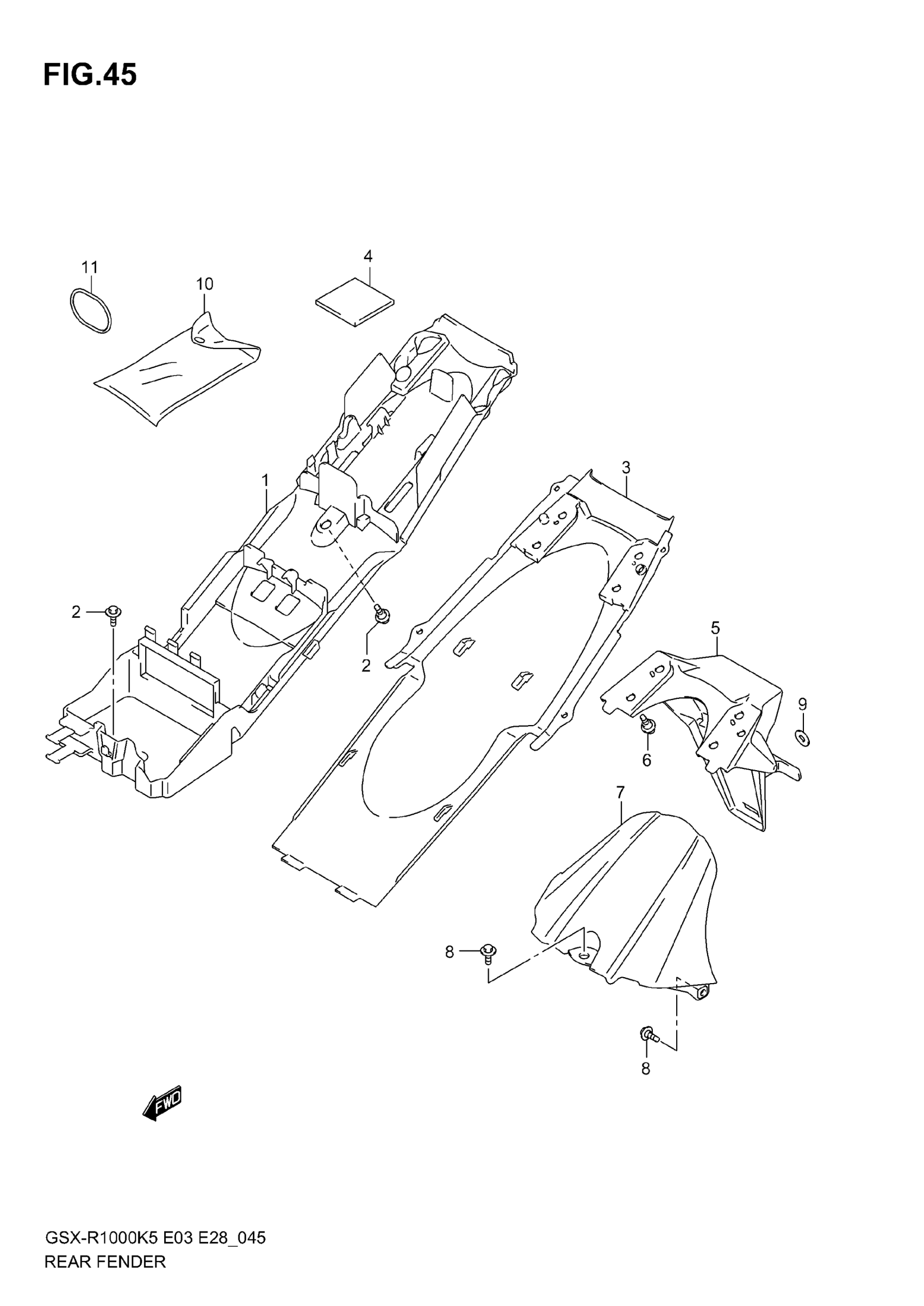

Suzuki GSX-R1000 (2006) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR UPPER | MODEL K5 This part replaces 63111-41G00.

63111-41G01

$122.32

1

FENDER, REAR UPPER | MODEL K6

63111-41G01

$122.32

2

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

3

COVER, REAR FENDER (BLUE) | MODEL K5 FOR LR5

63112-41G00-YBA

Unavailable

3

COVER, REAR FENDER (BLACK) | MODEL K5 FOR ATG,CAD,CDF

63112-41G00-019

Unavailable

3

COVER, REAR FENDER (BLUE) | MODEL K6 FOR LR5

63112-41G00-YBA

Unavailable

3

COVER,RR FENDER | MODEL K6 FOR BZG This part replaces 63112-41G00-YHH.

63112-41G00

Unavailable

3

COVER, REAR FENDER (RED) | MODEL K6 FOR CRS

63112-41G00-YHL

Unavailable

3

COVER,RR FENDER | MODEL K6 FOR CRT This part replaces 63112-41G00-YHG.

63112-41G00

Unavailable

3

COVER, REAR FENDER (BLACK) | MODEL K6 FOR CRU

63112-41G00-019

Unavailable

4

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

5

FENDER, REAR LOWER (BLACK)

63113-41G00-291

$72.85

6

BOLT

09111-06089

$2.62

7

FENDER, REAR FRONT (BLACK)

63114-41G00-291

$37.42

8

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

9

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

10

TOOL ASSY This part replaces 09800-21039.

09800-21089

$69.16

11

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.60
