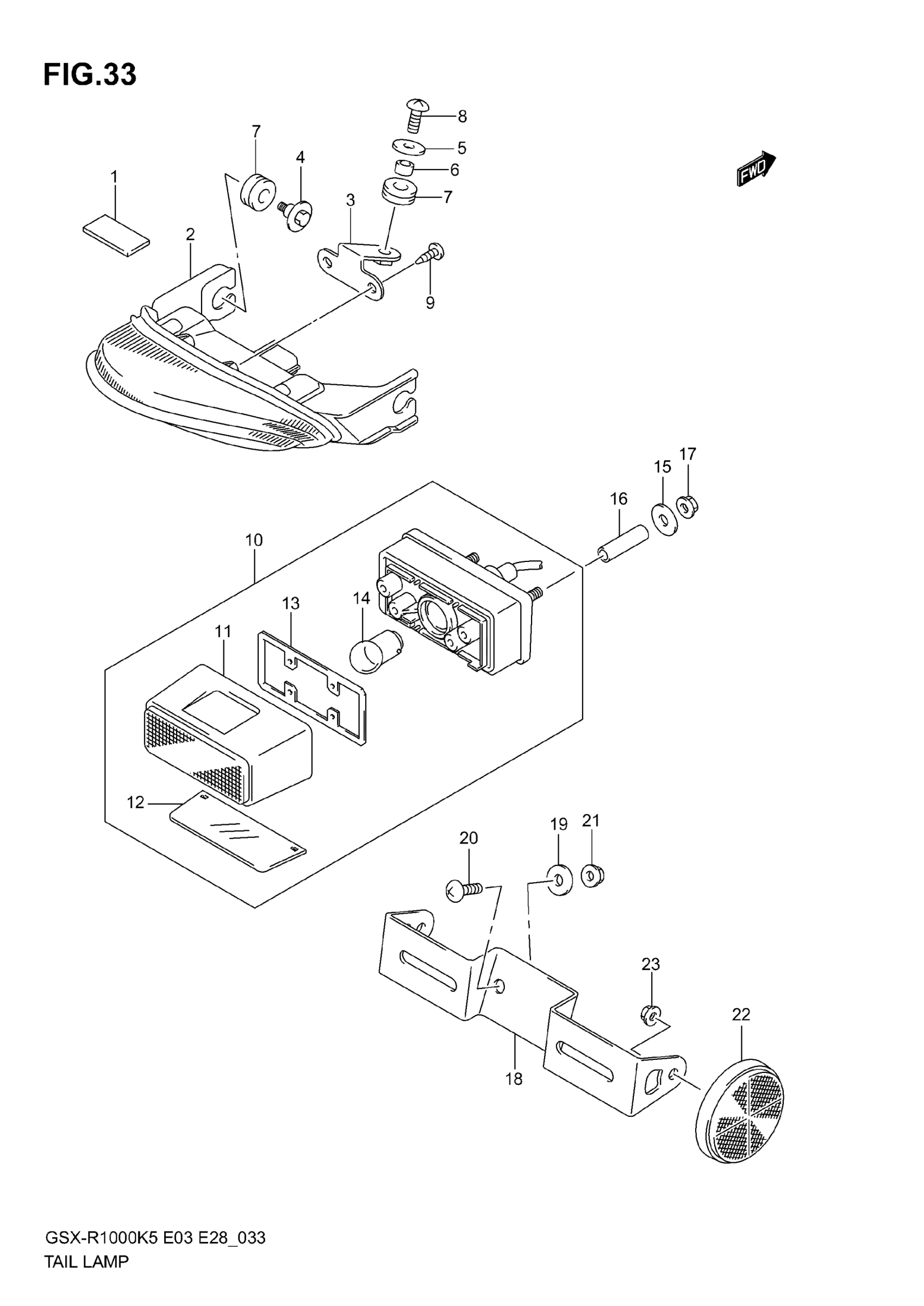

Suzuki GSX-R1000 (2006) REAR COMBINATION LAMP Diagram

#

Description
Price

1

CUSHION, REAR COMB (170X95X3.0) | CUT AS REQUIRED PROFILE (20X40)

33651-37000

$4.48

2

LAMP ASSY, REAR COMB

35710-41G30

Unavailable

3

BRACKET, REAR COMB LAMP

35726-41G00

Unavailable

4

SCREW, REAR COMB LAMP

09139-05080

$2.60

5

WASHER, REAR COMB LAMP | 6.5X20X1.2

09160-06077

$1.91

6

SPACER, REAR COMB LAMP | 6.5X10X9.4

09180-06286

$2.50

7

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

8

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

9

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

10

LAMP ASSY,LICENSE | Includes Item(s) 11 - 14 This part replaces 35910-41G30.

35910-41G32

$88.47

11

COVER, LICENSE LAMP

35917-41G00

$35.32

12

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

$13.28

13

GASKET

35913-41G00

$14.23

14

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

15

WASHER, LICENSE LAMP | 6.5X20X1.2

09160-06077

$1.91

16

SPACER, LICENSE LAMP | 6.5X9X33.3

09180-06278

$4.52

17

NUT This part replaces 08316-10063.

08316-1006B

$2.50

18

BRACKET, LICENSE PLATE

35927-41G30

$15.17

19

WASHER, LICENSE PLATE BRK | 6.5X20X1.2

09160-06077

$1.91

20

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

21

NUT This part replaces 08316-10063.

08316-1006B

$2.50

22

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

23

NUT This part replaces 08316-10053.

08316-1005A

$2.19
