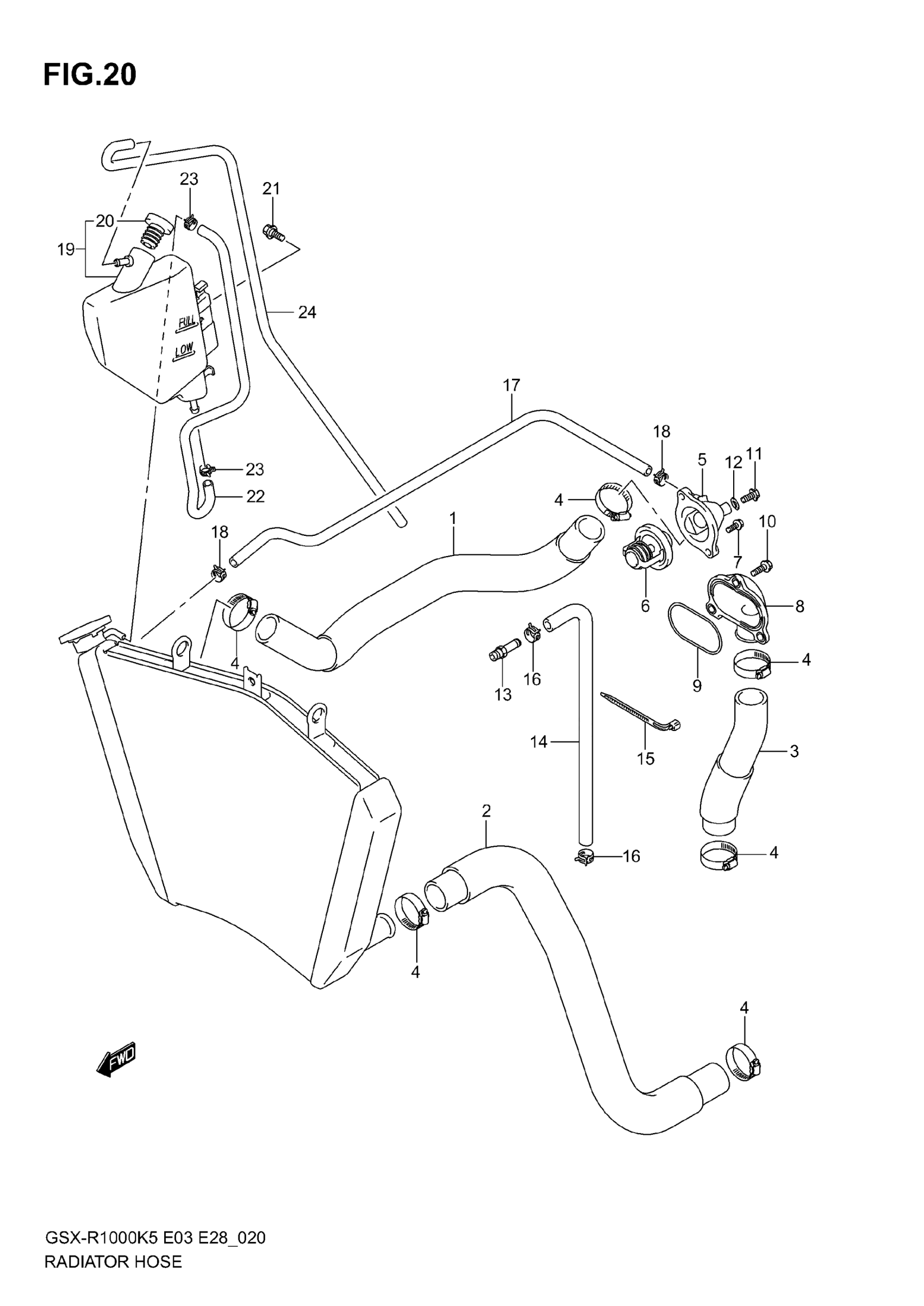

Suzuki GSX-R1000 (2006) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-41G00

$57.67

2

HOSE, RADIATOR OUTLET

17852-41G00

$47.40

3

HOSE, RADIATOR OUTLET

17853-40F10

$23.37

4

CLAMP

09402-38511

$11.67

5

COVER, THERMOSTAT

17661-35F00

$43.10

6

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$25.77

7

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

8

CONNECTOR This part replaces 17861-33E10.

17861-33E20

$22.56

9

O RING

17863-33E00

$4.03

10

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

11

BOLT, THERMOSTAT COVER AIR

17568-50F00

$4.76

12

GASKET, AIR BOLT (6.4X11.5X0.8)

09168-06026

$3.10

13

UNION, BYPASS

09362-09011

$8.28

14

HOSE, WATER BYPASS

17854-41G00

$23.95

15

CLAMP, BYPASS HOSE

09407-18402

$2.19

16

CLIP This part replaces 09401-12409.

09401-12414

$3.26

17

HOSE, WATER BYPASS NO.2 (5X11X600) | L:600!500

09352-50111-600

$13.78

18

CLIP (ID:10.5,H:8)

09401-10409

$2.26

19

TANK ASSY, RESERVOIR | Includes Item(s) 20

17910-41G00

$67.72

20

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

21

BOLT

09111-06085

$4.54

22

HOSE, RESERVOIR TANK INLET

17981-41G00

Unavailable

23

CLIP

09401-08411

$1.78

24

HOSE, RSVR TANK INLET This part replaces 17982-18G00.

17900-44810

$12.79
