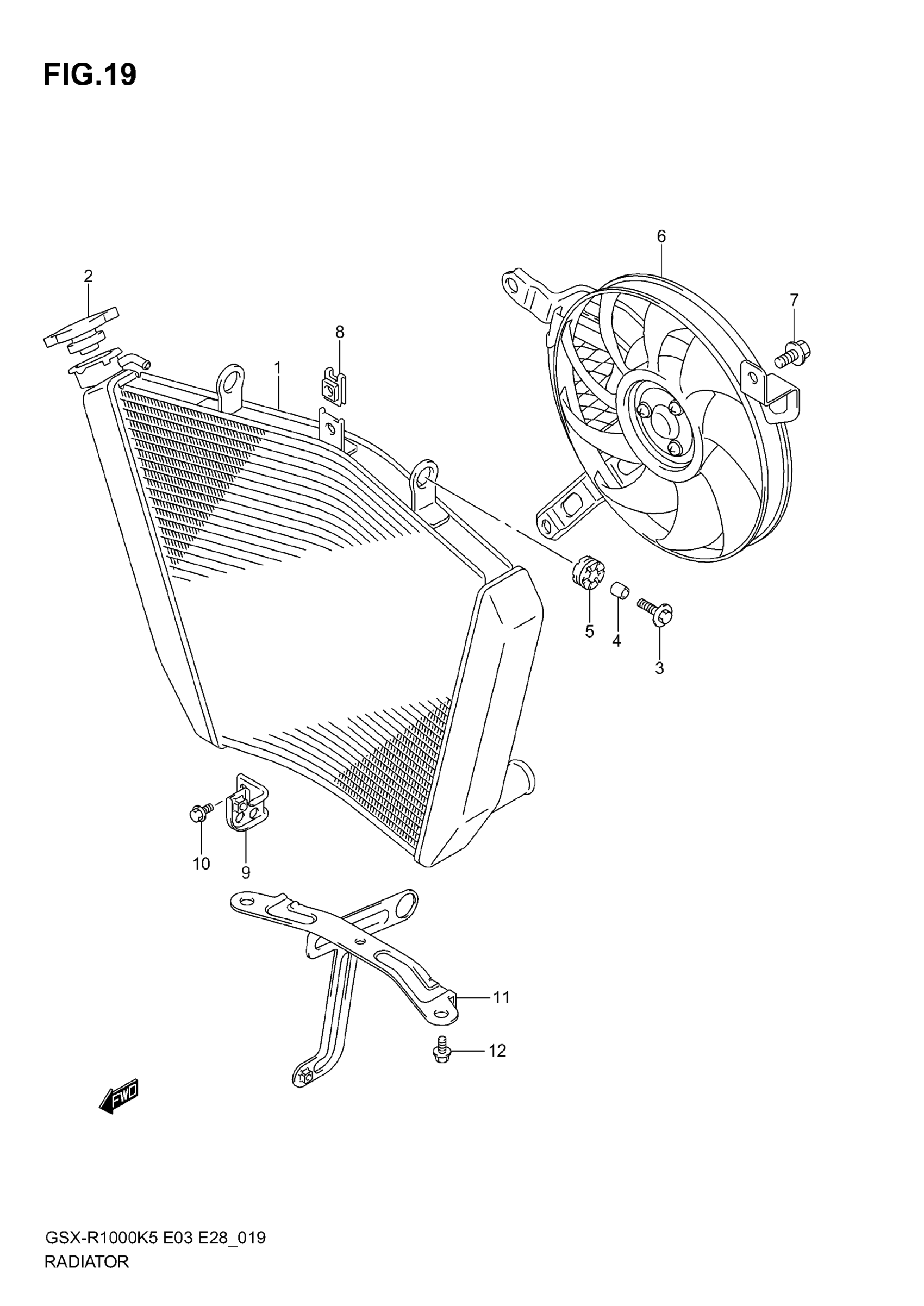

Suzuki GSX-R1000 (2006) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-41G00

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

BOLT (6X20)

09118-06097

$2.50

4

SPACER

09180-06290

$2.35

5

CUSHION

09320-10051

$2.99

6

FAN ASSY, RADIATOR

17800-41G00

Unavailable

7

BOLT

17711-40F00

$5.58

8

NUT, FAN ASSY

17712-40F00

$4.68

9

BRACKET, RADIATOR & OIL COOLER

17750-41G00

$7.87

10

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

11

BRACKET, RADIATOR SUPPORT

17790-41G00

Unavailable

12

BOLT This part replaces 01550-06103.

01550-0610A

$1.97
