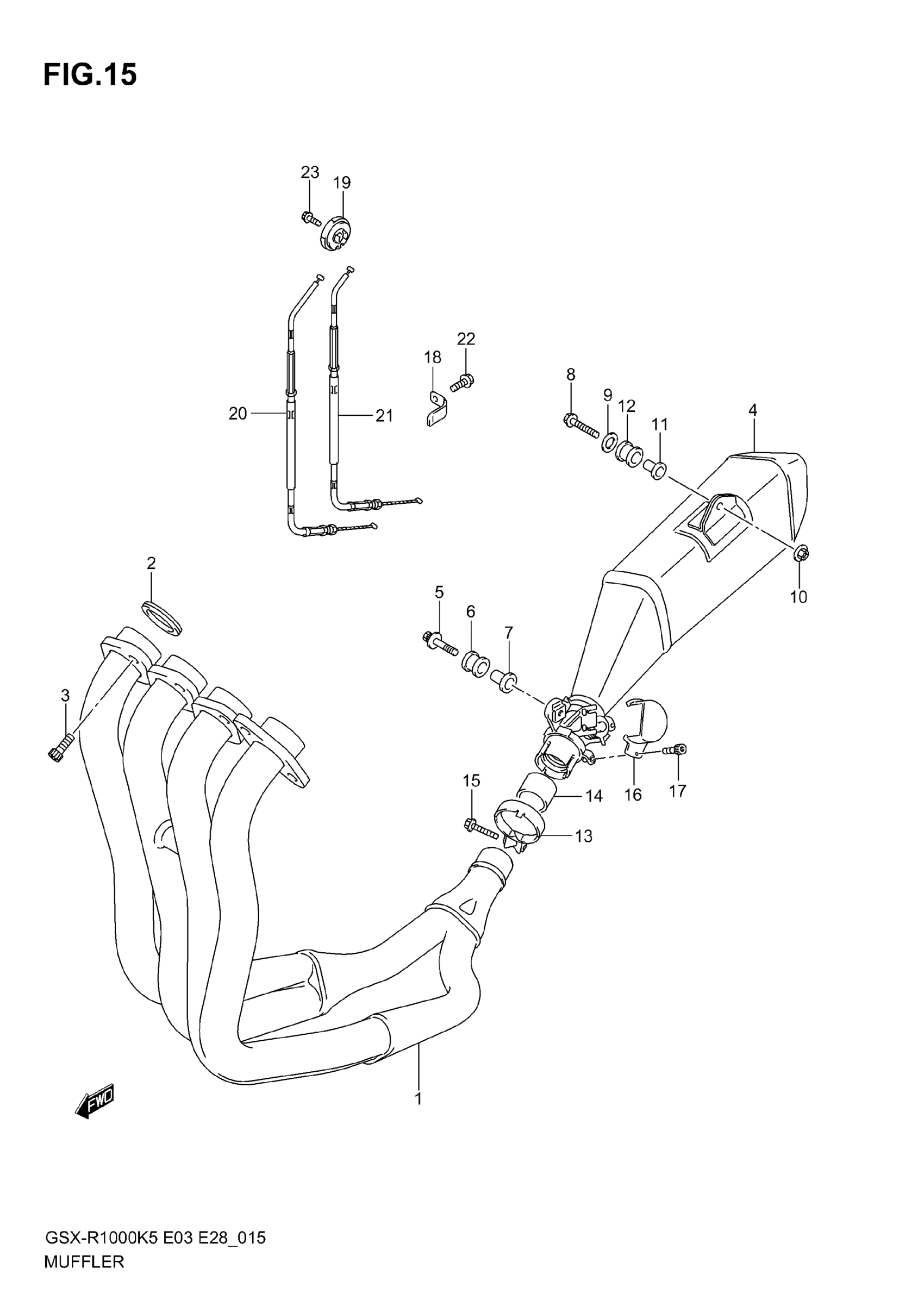

Suzuki GSX-R1000 (2006) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-40F10

Unavailable

2

GASKET This part replaces 14181-46E00.

14181-46E10

$7.22

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

MUFFLER ASSY

14310-41G10-H01

Unavailable

5

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

6

CUSHION

09320-12048

$5.11

7

SPACER

09180-08152

$5.83

8

BOLT (8X45)

09103-08358

$3.42

9

WASHER

09160-08142

$2.76

10

NUT This part replaces 08361-25088.

08361-2508A

$1.97

11

SPACER

09180-08152

$5.83

12

CUSHION

09320-12048

$5.11

13

CLAMP

14459-41G00

$22.09

14

CONNECTOR, MUFFLER This part replaces 14771-42F30.

14771-42F31

$27.33

15

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

16

COVER, EXHAUST VALVE

14280-41G00

Unavailable

17

BOLT

09106-06075

$2.48

18

BRACKET, EXH VALVE CABLE

11258-41G00

Unavailable

19

PULLEY, CONTROLLER This part replaces 11269-18G00.

11269-18G01

$28.78

20

CABLE, EXH VALVE NO.1

11276-41G00

$58.65

21

CABLE, EXH VALVE NO.2

11277-41G01

$58.65

22

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

23

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

$2.53
