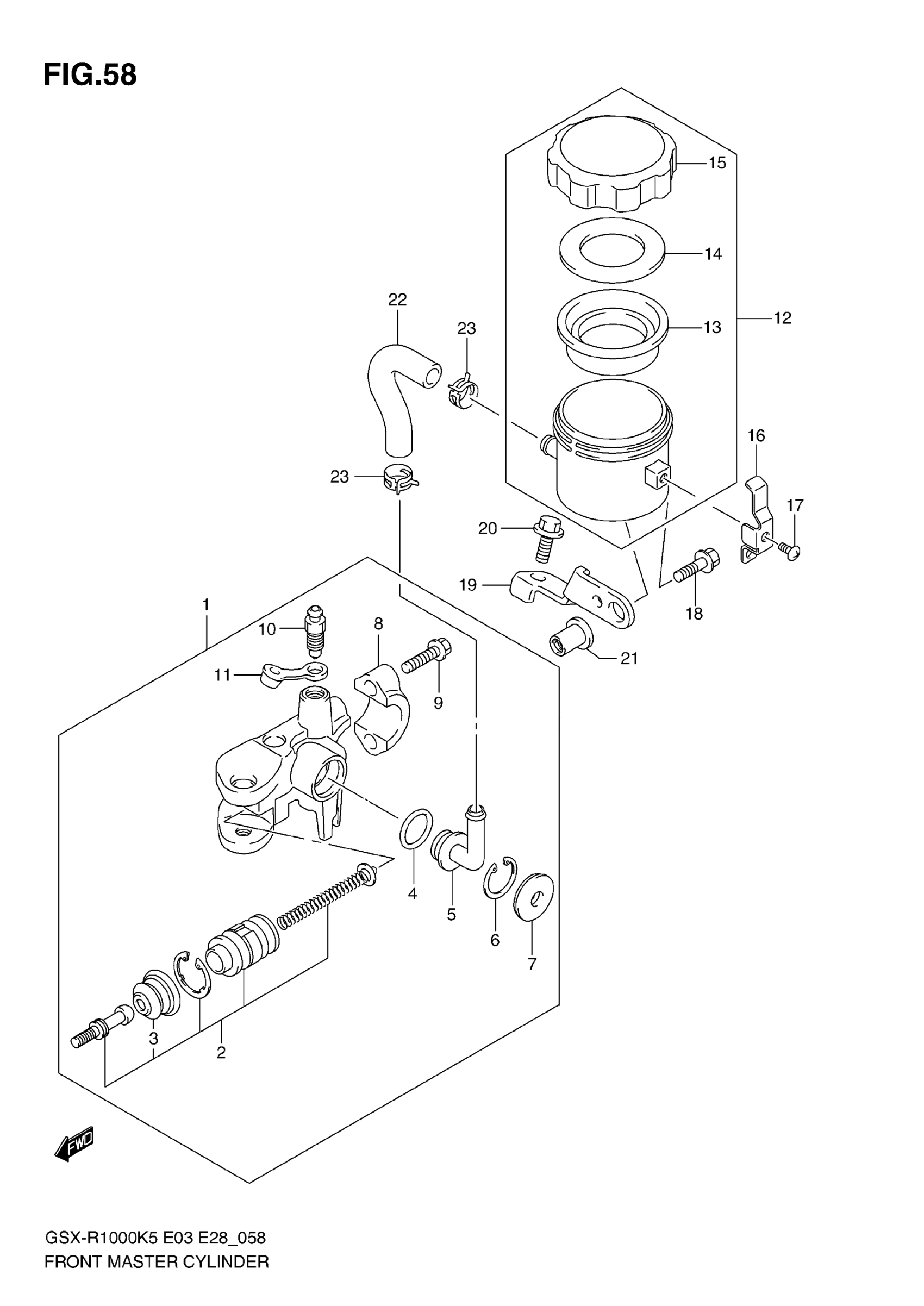

Suzuki GSX-R1000 (2006) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,F | Includes Item(s) 2 - 11 This part replaces 59600-29G10.

59600-47H10

$271.85

2

PISTON/CUP SET

59600-29820

Unavailable

3

BOOT

59666-29G00

$12.35

4

O RING

69686-34200

$2.93

5

CONNECTOR

59672-17C00

$9.31

6

CIRCLIP

69674-00B20

$3.97

7

COVER, DUST

59673-17C00

$8.65

8

.HOLDER

59671-36500

$12.21

9

BOLT

59675-02FA0

$3.82

10

BLEEDER

59121-01A00

$8.73

11

CAP, BLEEDER

59122-01A00

$4.34

12

TANK ASSY, RESERVOIR | Includes Item(s) 13 - 15

59740-07D00

$60.40

13

DIAPHRAGM

59667-18441

$10.28

14

PLATE

59668-18441

$4.52

15

CAP

59669-07D00

$31.72

16

PLATE, TANK CAP

59743-17C00

$9.31

17

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

18

BOLT, RESERVOIR TANK

09111-05004

Unavailable

19

BRACKET, RESERVOIR TANK

59751-41G00

Unavailable

20

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

21

NUT

09159-05048

$7.22

22

HOSE, RESERVOIR TANK

59731-41G00

Unavailable

23

CLAMP, HOSE

59735-17C00

$4.93
