Description

Price

1

CALIPER ASSY, FRONT RH

59100-41G00-999

$641.02

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 8

59300-41G00-999

$653.12

2

PISTON SET

59100-35890

$99.73

3

SEAL SET, PISTON

59100-29830

$42.60

4

.PIN This part replaces 59141-41G00.

59141-41G10

$26.99

5

BOLT

59145-18G00

$9.92

6

SPRING, PAD

59151-29G00

$12.48

7

BLEEDER

59121-18410

$8.73

8

CAP

55156-66310

$5.17

9

PAD & SHIM SET | Includes Item(s) 10 - 11

59100-29840

$59.36

10

SHIM, PAD A

59171-41G00

$15.42

11

SHIM, PAD B

59172-41G00

$15.42

12

BOLT

09103-10392

$4.90

13

PIN, CALIPER

59151-41G00

$11.64

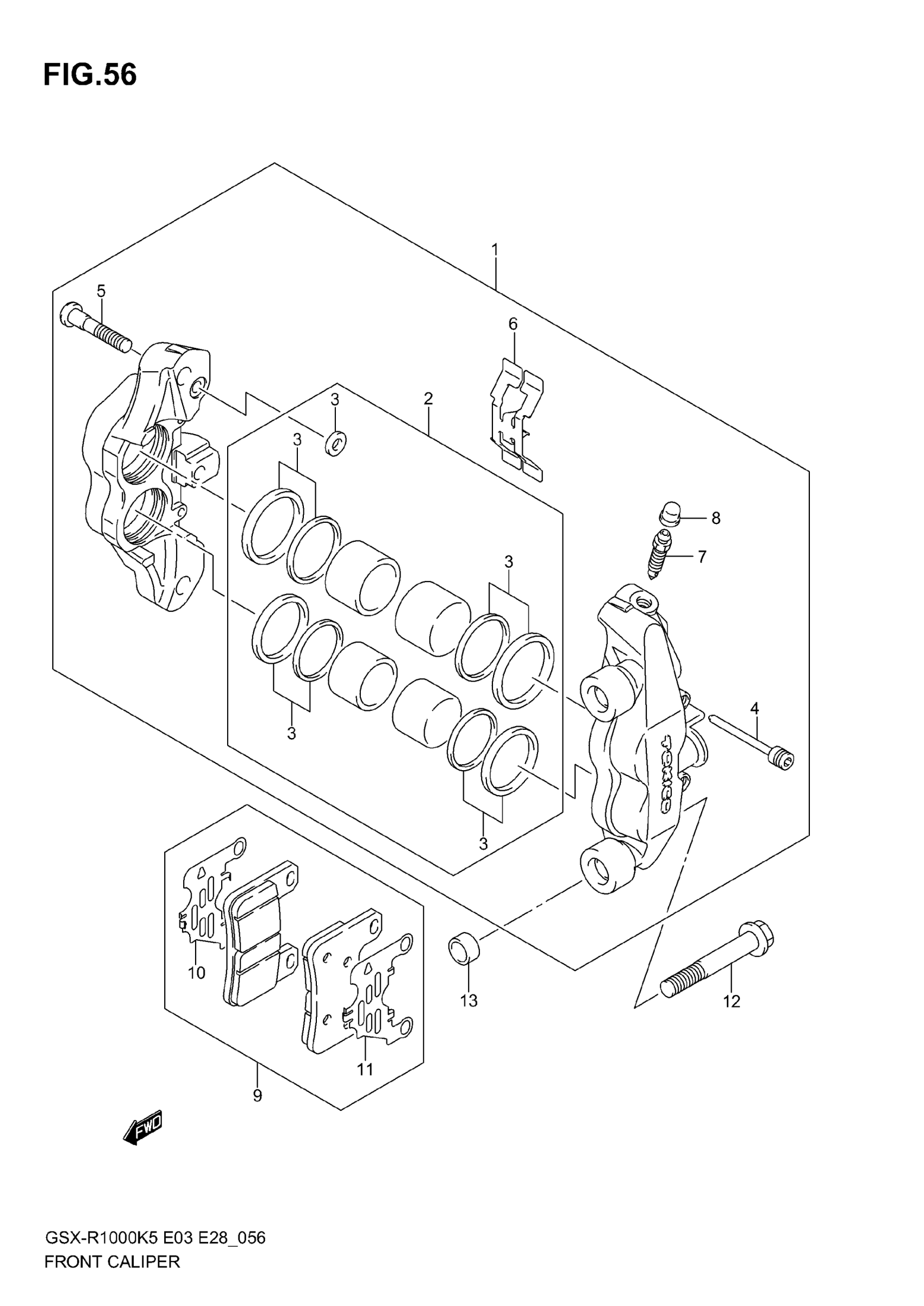

Suzuki GSX-R1000 (2006) FRONT CALIPER Diagram

CALIPER ASSY, FRONT RH

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 8

PISTON SET

SEAL SET, PISTON

.PIN This part replaces 59141-41G00.

BOLT

SPRING, PAD

BLEEDER

CAP

PAD & SHIM SET | Includes Item(s) 10 - 11

SHIM, PAD A

SHIM, PAD B

BOLT

PIN, CALIPER
