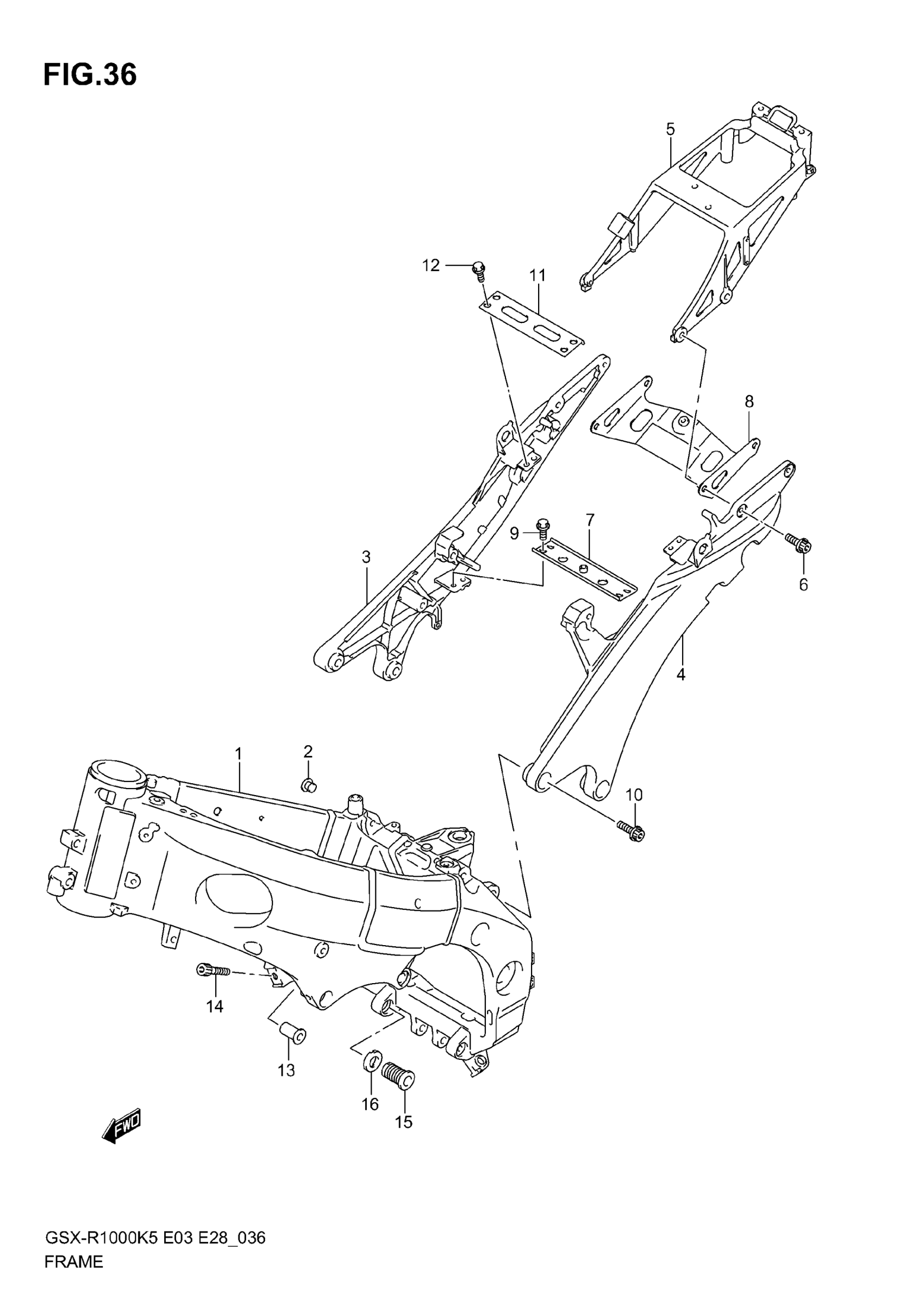

Suzuki GSX-R1000 (2006) FRAME Diagram

#

Description
Price

1

FRAME,COMP This part replaces 41100-41G00-YAP.

41000-41G00-YAP

Unavailable

2

CUSHION,NET COV This part replaces 43585-18G00.

43585-18G01

$3.67

3

RAIL,SEAT,R(BLA This part replaces 41211-41G00-YAP.

41211-41G01-YAP

$456.68

4

RAIL,SEAT,L(BLA This part replaces 41221-41G00-YAP.

41221-41G01-YAP

$465.28

5

BRACKET,PILLION This part replaces 41231-41G00.

41231-41G01

Unavailable

6

BOLT,SEAT RAIL This part replaces 41233-18G00.

41233-18G20

$8.65

7

BRIDGE, FRONT

41770-41G00

Unavailable

8

BRIDGE, REAR

41240-41G00

Unavailable

9

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

10

BOLT This part replaces 07120-08203.

07120-0820A

$3.14

11

BRIDGE, UPPER

41251-41G00

Unavailable

12

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

13

SPACER, ENGINE MOUNT

41911-40F01

$22.56

14

BOLT, SPACER This part replaces 09106-08149.

09106-08170

$3.49

15

BOLT, CRANKCASE ADJUST

41921-35F00

$54.83

16

NUT, CRANKCASE ADJUST

41922-18G00

$36.72
