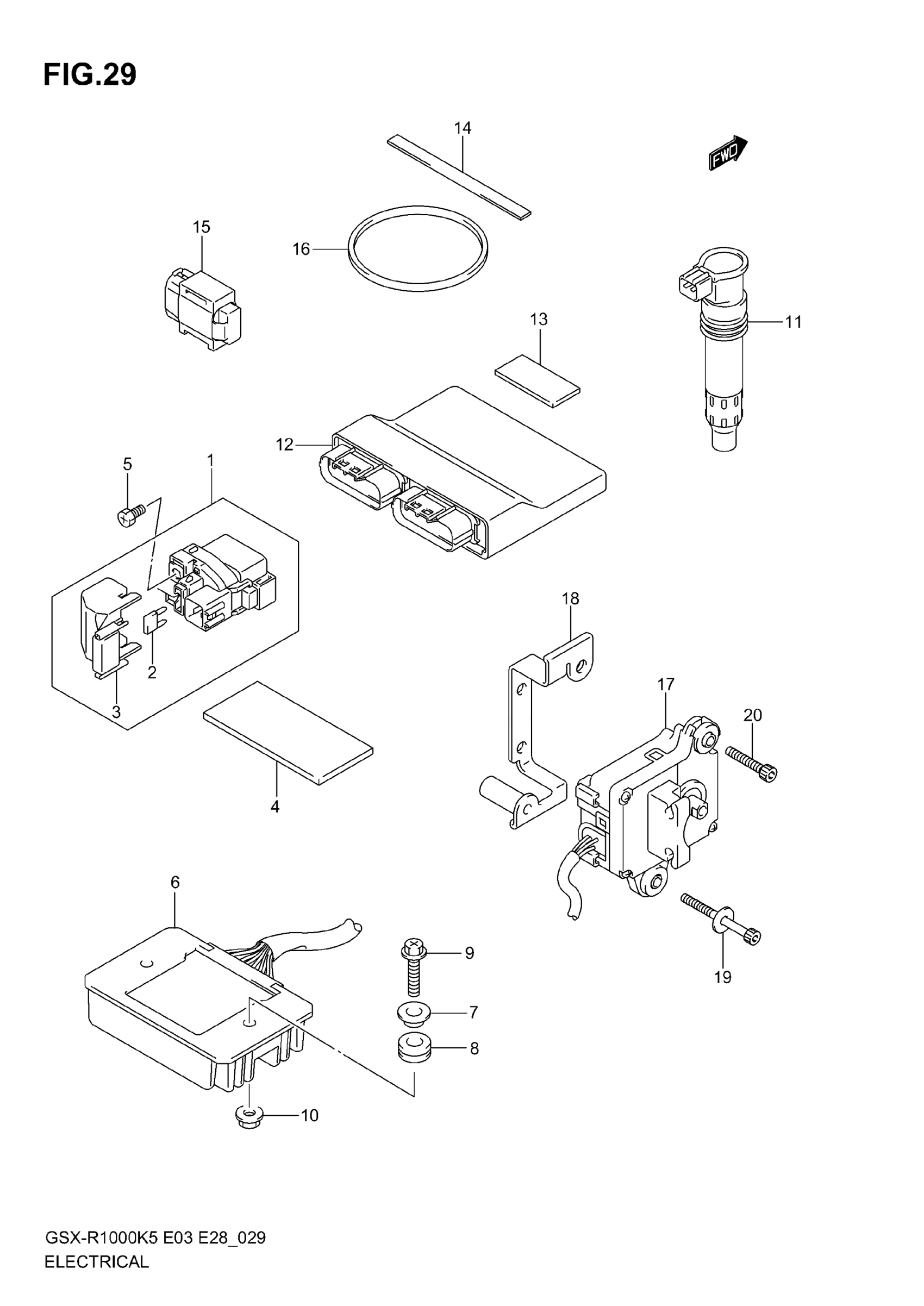

Suzuki GSX-R1000 (2006) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-41G00.

31800-41G10

$92.59

2

COVER

31861-38G00

$4.88

3

FUSE (30A)

09481-30501

$2.32

4

PROTECTOR, STARTING MOTOR | 85X40X3.0

44545-41F00

$8.12

5

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.49

6

RECTIFIER ASSY This part replaces 32800-41G00.

32800-47H00

$263.17

7

SPACER, RECT FTG BRKT

09180-06325

$3.79

8

CUSHION (8.4X18X6)

09320-08066

$8.24

9

SCREW This part replaces 02162-06253.

02162-0625A

$1.78

10

NUT This part replaces 08313-20063.

08313-2006A

$1.97

11

COIL ASSY,IGNITION This part replaces 33410-35F10.

33410-35F11

$142.65

12

CONTROL UNIT,FI | MODEL K5 This part replaces 32920-41G10.

32920-41G61

Unavailable

12

CONTROL UNIT,FI | MODEL K6 This part replaces 32920-41G60.

32920-41G61

Unavailable

13

CUSHION, FI CONTROL UNIT (170X95X3.0) | CUT AS REQUIRED PROFILE (20X40)

33651-37000

$4.48

14

CUSHION, FI CONTROL UNIT | 130X10X2.0

33652-42F00

Unavailable

15

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

16

O RING(D:3.5,ID | D:3.5,ID:61 This part replaces 09280-61002.

09280-61004

$2.60

17

ACTUATOR ASSY This part replaces 33970-41G00.

33970-41G02

$584.90

18

HOLDER, ACTUATOR

33971-41G00

Unavailable

19

BOLT, ACTUATOR

09116-06198

Unavailable

20

BOLT This part replaces 07130-06303.

07130-0630B

$3.37
