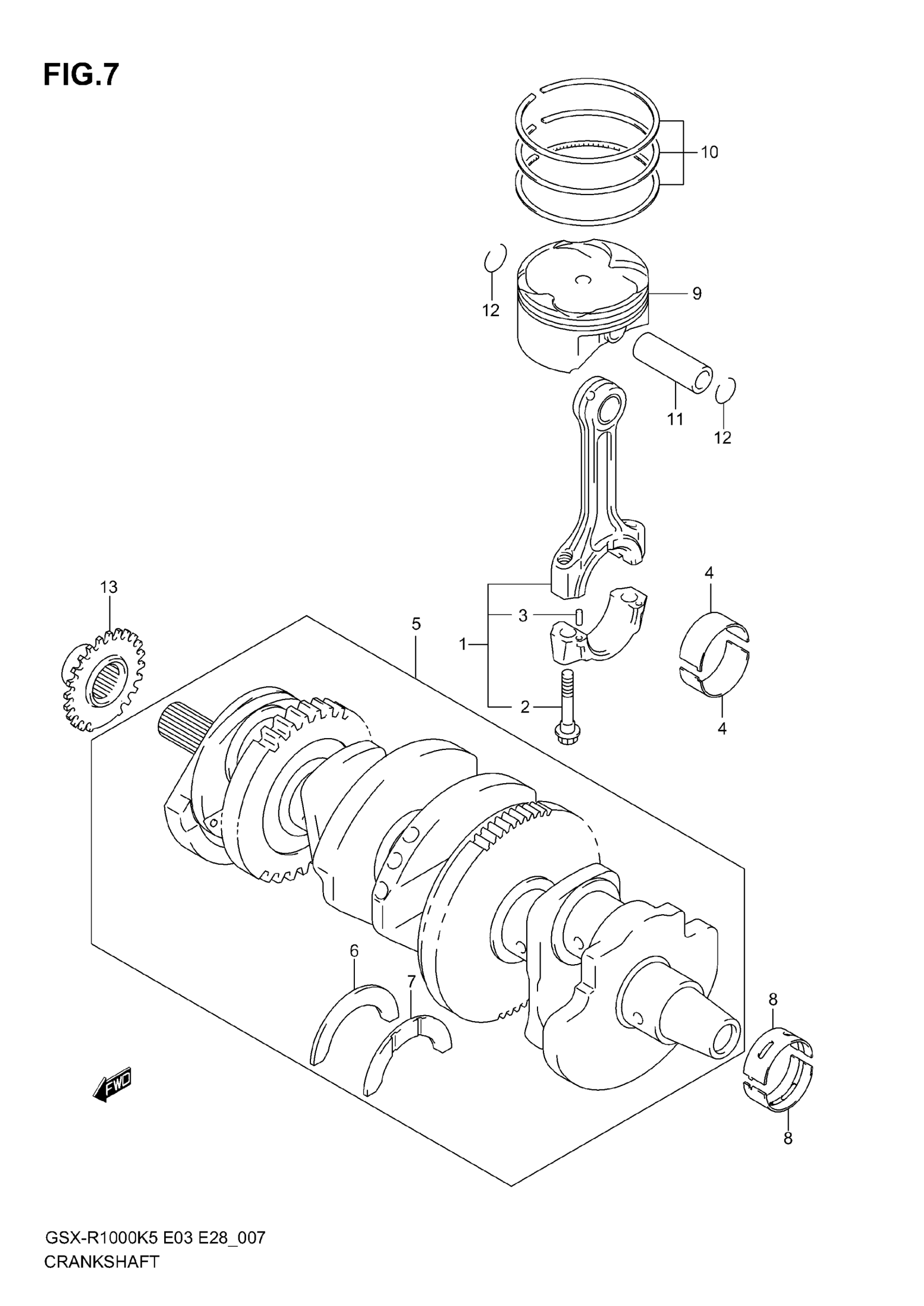

Suzuki GSX-R1000 (2006) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 - 3

12160-41G00

$269.83

2

BOLT

12163-24F00

$16.45

3

PIN, CONNROD

12165-27A50

$1.54

4

BEARING, CRANK PIN (GREEN) This part replaces 12164-41G00-0A0.

12164-41G01-0A0

$12.15

4

BEARING, CRANK PIN (BLACK) This part replaces 12164-41G00-0B0.

12164-41G01-0B0

$12.15

4

BEARING, CRANK PIN (BROWN) This part replaces 12164-41G00-0C0.

12164-41G01-0C0

$12.15

4

BEARING, CRANK PIN (YELLOW) This part replaces 12164-41G00-0D0.

12164-41G01-0D0

$12.15

5

CRANKSHAFT SET | Includes Item(s) 6 - 7 This part replaces 12000-41820.

12000-48851

$1,427.25

6

BEARING, THRUST RH (GREEN)

12228-48B00-0E0

$9.34

7

BEARING, THRUST LH (BROWN)

12228-48B00-0B0

$11.57

7

BEARING, THRUST LH (RED)

12228-48B00-0C0

$11.35

7

BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

$11.78

7

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

$9.34

7

BEARING, THRUST LH (BLUE)

12228-48B00-0F0

$11.78

7

BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

$11.78

7

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.66

8

BEARING, CRANKSHAFT (GREEN)

12229-41G00-0A0

$17.54

8

BEARING, CRANKSHAFT (BLACK)

12229-41G00-0B0

$17.54

8

BEARING, CRANKSHAFT (BROWN)

12229-41G00-0C0

$17.54

8

BEARING, CRANKSHAFT (YELLOW)

12229-41G00-0D0

$17.54

8

BEARING, CRANKSHAFT (BLUE)

12229-41G00-0E0

$18.22

9

PISTON

12111-41G00-0F0

$231.37

10

RING SET, PISTON

12140-41G00

$91.94

11

PIN,PISTON

12151-41G00

$14.90

12

CIRCLIP

09381-15001

$1.49

13

SPROCKET, CAM CHAIN THERE IS A PLAIN BEARING KIT AVAILABLE FOR THIS MODEL. PART NUMBER 99104-BRGKT-029

12731-29G00

$130.35
