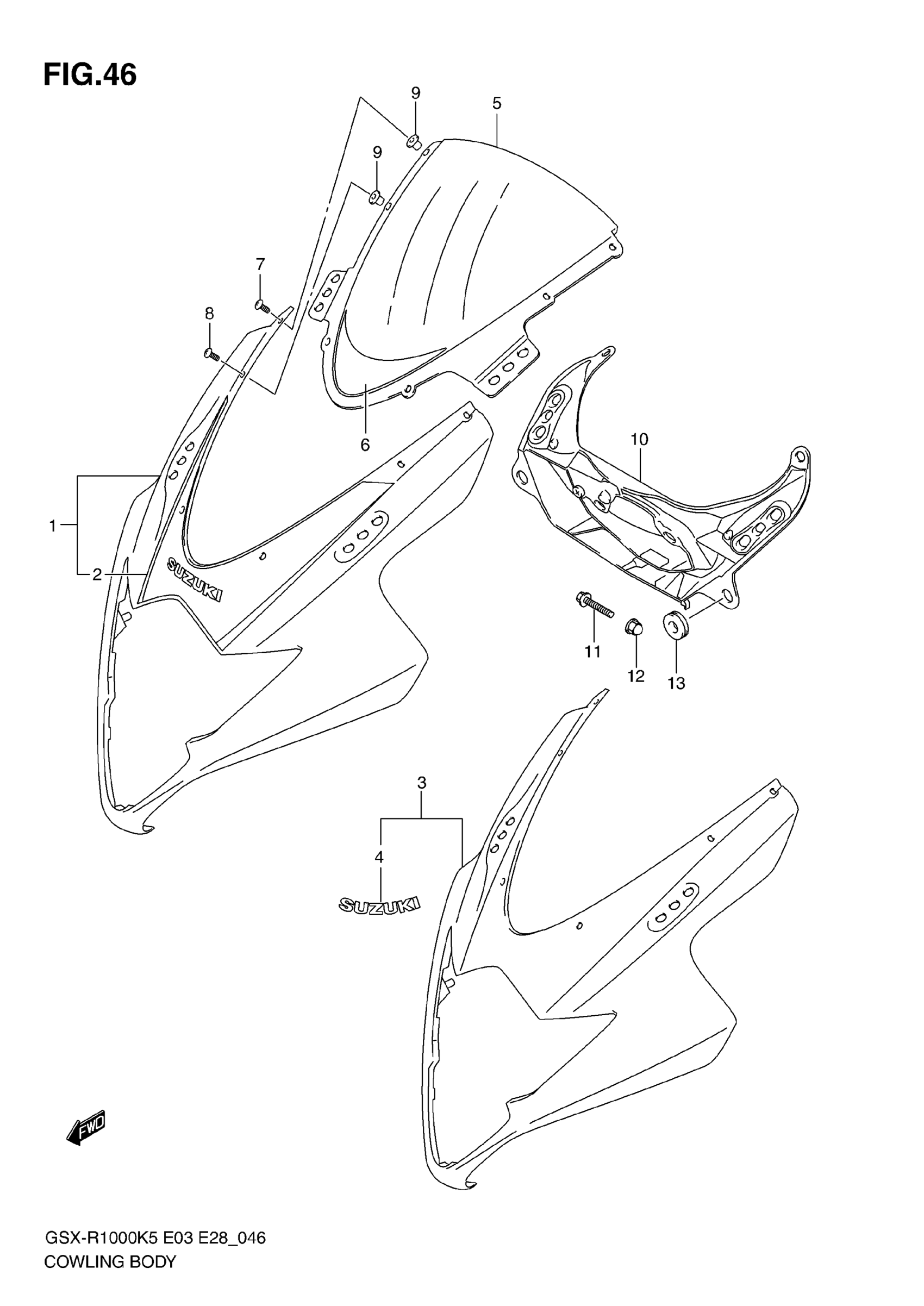

Suzuki GSX-R1000 (2006) COWLING BODY (MODEL K5) Diagram

#

Description
Price

1

BODY, COWLING (BLUE) | FOR LR5

94410-41G00-YBA

Unavailable

1

BODY, COWLING (YELLOW) | FOR ATG

94410-41G00-YEC

Unavailable

1

BODY,COWLING | FOR CAD; Includes Item(s) 2 - 2 This part replaces 94410-41G00-019.

94410-41G01-019

$394.45

2

TAPE, FRONT | FOR YBA

68275-41G00-BUT

Unavailable

2

TAPE, FRONT | FOR YEC

68275-41G00-CCL

Unavailable

2

TAPE, FRONT | FOR 019

68275-41G00-CCM

Unavailable

3

BODY, COWLING (BLACK) | FOR CDF; Includes Item(s) 4

94410-41G10-019

Unavailable

4

EMBLEM (GRAY)

68280-04F00-YU8

$19.23

5

WINDSCREEN | Includes Item(s) 6

94610-41G00

Unavailable

6

TAPE,SCREEN This part replaces 68275-41GA0.

68275-41GA1

Unavailable

7

SCREW, UPPER

09125-05134

$2.22

8

SCREW, LOWER

09125-05133

$2.19

9

NUT

09159-05019

$7.14

10

BRACE,COWLING This part replaces 94511-41G00.

94511-41G01

$306.73

11

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

12

NUT This part replaces 08313-20083.

08313-2008B

$2.88

13

CUSHION

09320-08028

$3.04
