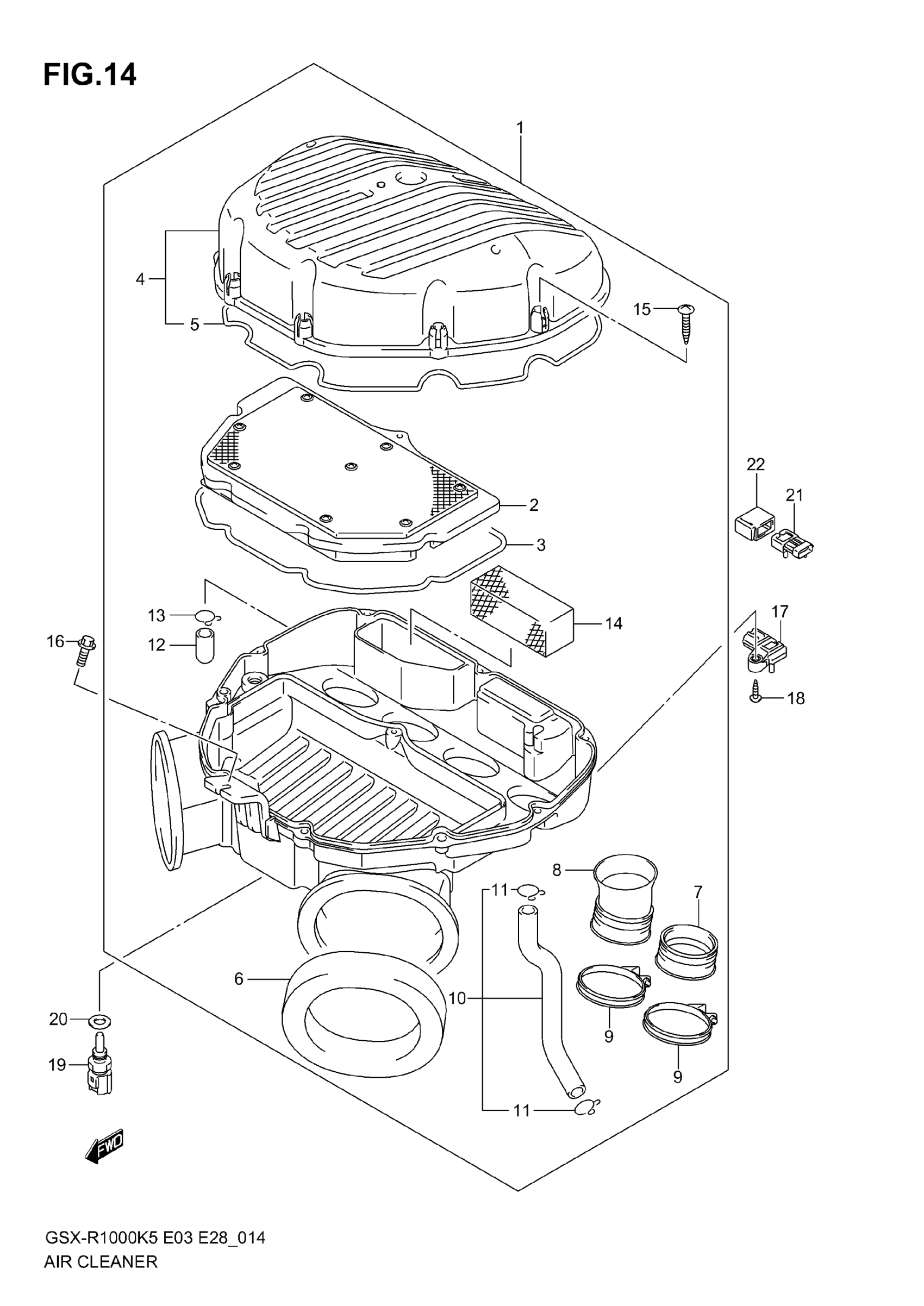

Suzuki GSX-R1000 (2006) AIR CLEANER Diagram

CLEANER ASSY, AIR | Includes Item(s) 2 - 15

13700-41G00

Unavailable

FILTER ASSY

13780-41G00

$43.60

GASKET, CASE

13756-41G00

$5.83

CAP, AIR CLEANER

13740-41G00

Unavailable

GASKET, CAP

13746-41G00

$8.12

CUSHION, DUCT This part replaces 13736-41G00.

13736-02FA0

$10.74

TUBE,OUTLET A | LH,RH This part replaces 13881-41G00.

13881-41G01

$16.52

TUBE,OUTLET B | ML,MR This part replaces 13882-41G00.

13882-41G01

$24.25

CLAMP

09402-62208

$6.58

TUBE,BREATHER This part replaces 13850-41G00.

13850-41G01

Unavailable

CLIP

09401-14301

$2.35

.PLUG

13859-41B10

$7.38

CLIP

09401-14301

$2.35

FILTER, BREATHER

13788-41G00

$5.95

.SCREW

13831-35F00

$2.38

BOLT

09116-06130

$2.28

SENSOR,BOOST

15620-29G00

$273.45

SCREW This part replaces 03541-05253.

03541-0525B

$2.32

SENSOR, AIR TEMPERATURE

13650-61B00

$109.08

GASKET

09168-12017

$1.95

SENSOR, PRESSURE This part replaces 15620-29G10.

15630-29G10

$273.45

COVER

15625-29G00

$12.40
