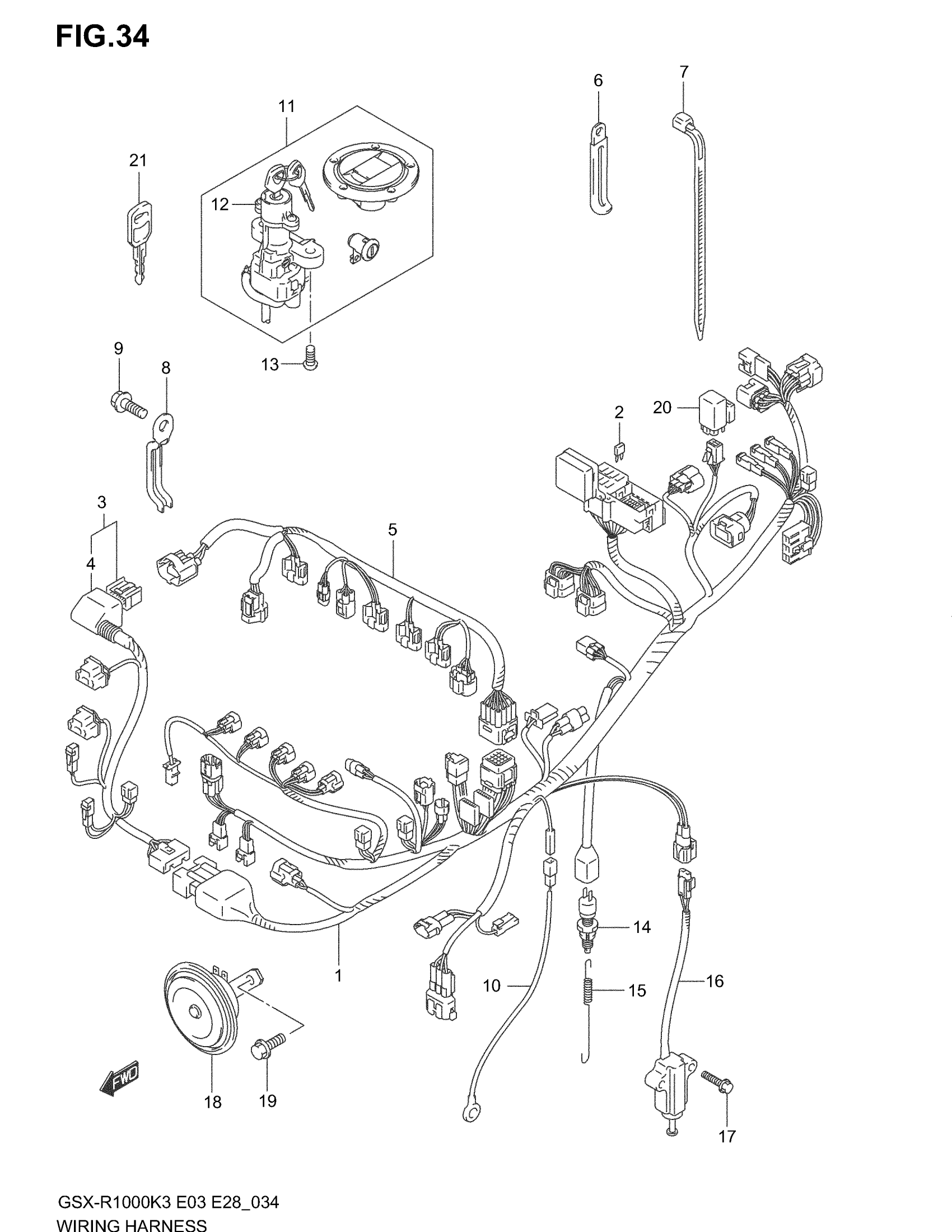

Suzuki GSX-R1000 (2004) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | Includes Item(s) 2 - 2

36610-18G30

Unavailable

2

FUSE (10A)

09481-10501

$2.06

2

FUSE (15A)

09481-15501

$2.02

3

HARNESS, WIRING NO.2 | Includes Item(s) 4

36620-18G30

$239.13

4

COVER, SPEEDOMETER

36618-35F00

$10.07

5

WIRE, INJECTOR LEAD

36859-18G00

Unavailable

6

CLAMP (L:45)

09404-06429

$1.83

7

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP (L:165)

09407-18402

$2.19

8

CLIP

09403-06322

$5.20

9

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

10

WIRE, OIL PRESSURE LEAD

36851-35F00

$16.07

11

LOCK SET This part replaces 37000-16840.

37000-16844

$386.02

11

LOCK SET | E33; Includes Item(s) 12 This part replaces 37000-16850.

37000-16852

$409.95

12

LOCK ASSY,STEER This part replaces 37100-16G00.

37100-16G02

$188.90

13

SCREW

09139-08016

$3.37

14

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

15

SPRING

09443-06042

$3.77

16

SWITCH ASSY,SID This part replaces 37840-35F10.

37840-35F12

$75.52

17

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

18

HORN ASSY This part replaces 38500-18G00.

38500-18G01

Unavailable

19

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

20

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

21

KEY, BLANK | OPT

37146-33E00

$21.21
