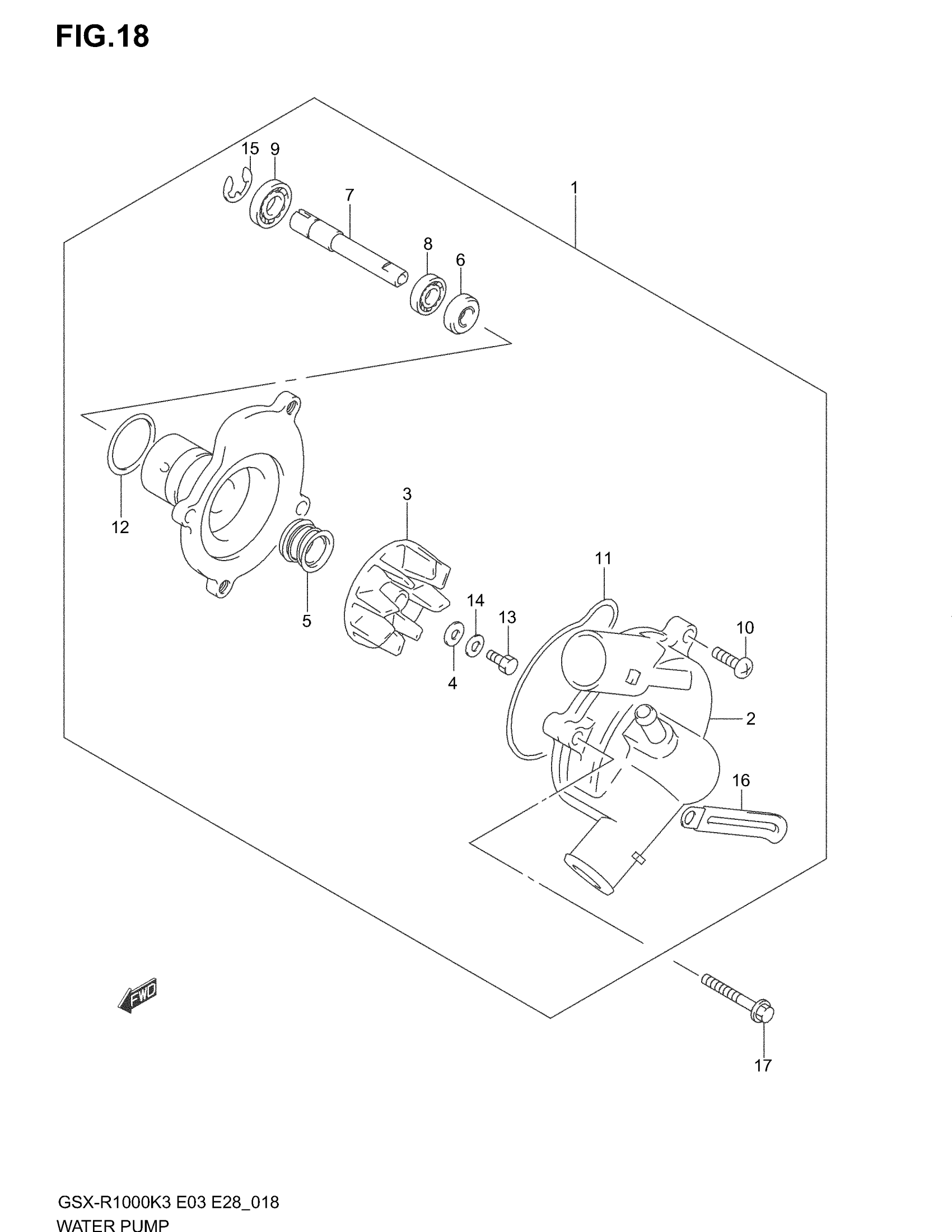

Suzuki GSX-R1000 (2004) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY, WATER | Includes Item(s) 2 - 16

17400-40F00

$405.63

2

CASE, WATER PUMP

17411-40F00

$147.77

3

IMPELLER

17491-40F00

Unavailable

4

GASKET

09168-06025

$2.92

5

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

6

OIL SEAL

17419-29F00

$9.89

7

SHAFT

17511-40F00

Unavailable

8

BEARING (10X26X8)

09262-10014

$16.01

9

BEARING (12X28X8)

09262-12001

$18.47

10

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

11

O RING

17418-40F00

$9.49

12

O RING

17435-40F00

$6.01

13

BOLT (6X13)

09100-06099

$2.00

14

LOCK WASHER

09164-06006

$2.61

15

E-RING, BUSH This part replaces 08332-11093.

08332-1109A

$1.80

16

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

17

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73
