UNDER COWLING (MODEL K3)

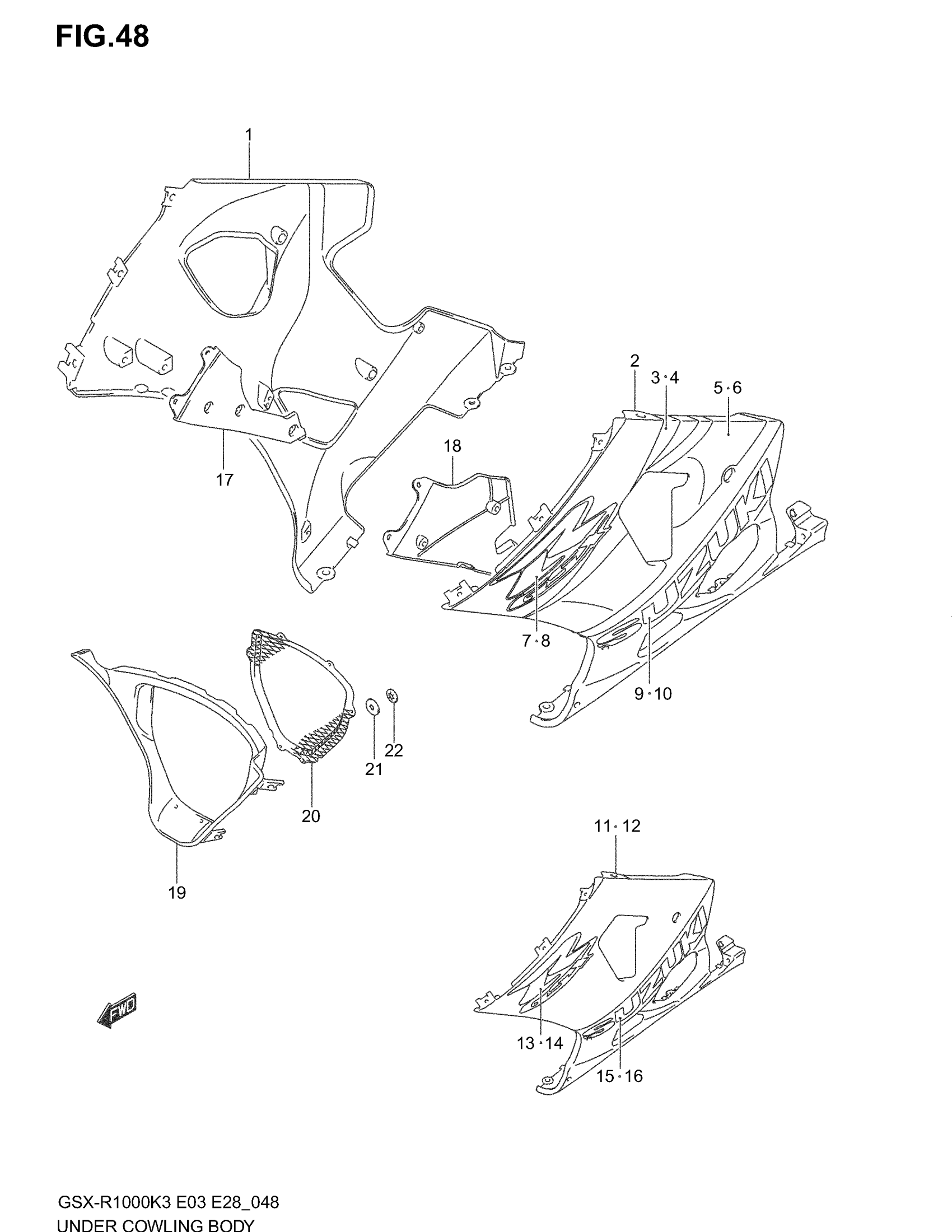

Suzuki GSX-R1000 (2004) UNDER COWLING (MODEL K3) Diagram
#
1
COWL ASSY, UNDER RH | FOR LR5
94407-18G00-MW2
Unavailable
1
COWL ASSY, UNDER RH (ORANGE) | FOR LR8
94407-18G00-YAV
Unavailable
2
COWL ASSY, UNDER LH | FOR LR5
94408-18G00-MW2
Unavailable
2
COWL ASSY, UNDER LH (ORANGE) | FOR LR8; Includes Item(s) 3 - 10
94408-18G00-YAV
Unavailable
3
TAPE, UNDER UPPER RH | FOR MW2
68185-18G00-LS3
Unavailable
3
TAPE, UNDER UPPER RH | FOR YAV
68185-18G00-LR8
Unavailable
4
TAPE, UNDER UPPER LH | FOR MW2
68195-18G00-LS3
Unavailable
4
TAPE, UNDER UPPER LH | FOR YAV
68195-18G00-LR8
Unavailable
5
TAPE SET, UNDER CENTER RH | FOR MW2
68180-18G00-LW8
Unavailable
5
TAPE SET, UNDER CENTER RH | FOR YAV
68180-18G00-LR8
Unavailable
6
TAPE SET, UNDER CENTER LH | FOR MW2
68190-18G00-LW8
Unavailable
6
TAPE SET, UNDER CENTER LH | FOR YAV
68190-18G00-LR8
Unavailable
7
EMBLEM, "GSXR" RH | FOR MW2
68181-18G10-MZ9
Unavailable
7
EMBLEM, "GSXR" RH | FOR YAV
68181-18G10-NA1
Unavailable
8
EMBLEM, "GSXR" LH | FOR MW2
68191-18G10-MZ9
Unavailable
8
EMBLEM, "GSXR" LH | FOR YAV
68191-18G10-NA1
Unavailable
9
EMBLEM, "SUZUKI" RH | FOR MW2
68181-18G00-YBD
Unavailable
9
EMBLEM, "SUZUKI" RH | FOR YAV
68181-18G00-019
Unavailable
10
EMBLEM, "SUZUKI" LH | FOR MW2
68191-18G00-YBD
Unavailable
10
EMBLEM, "SUZUKI" LH | FOR YAV
68191-18G00-019
Unavailable
11
COWL ASSY,UNDER | FOR YD8 This part replaces 94407-18G10-YD8.
94470-18G00-13L
Unavailable
12
COWLING COMP,UN | FOR YD8; Includes Item(s) 13 - 16 This part replaces 94408-18G10-YD8.
94480-18G00-13L
Unavailable
13
EMBLEM, "GSXR" RH | FOR YD8
68181-18G10-NA1
Unavailable
14
EMBLEM, "GSXR" LH | FOR YD8
68191-18G10-NA1
Unavailable
15
EMBLEM, "SUZUKI" RH | FOR YD8
68181-18G20-YC8
Unavailable
16
EMBLEM, "SUZUKI" LH | FOR YD8
68191-18G20-YC8
Unavailable
19
COWL, UNDER CENTER
94498-18G00
Unavailable
