2004 Suzuki GSX-R1000 Transmission Diagram

← All diagrams

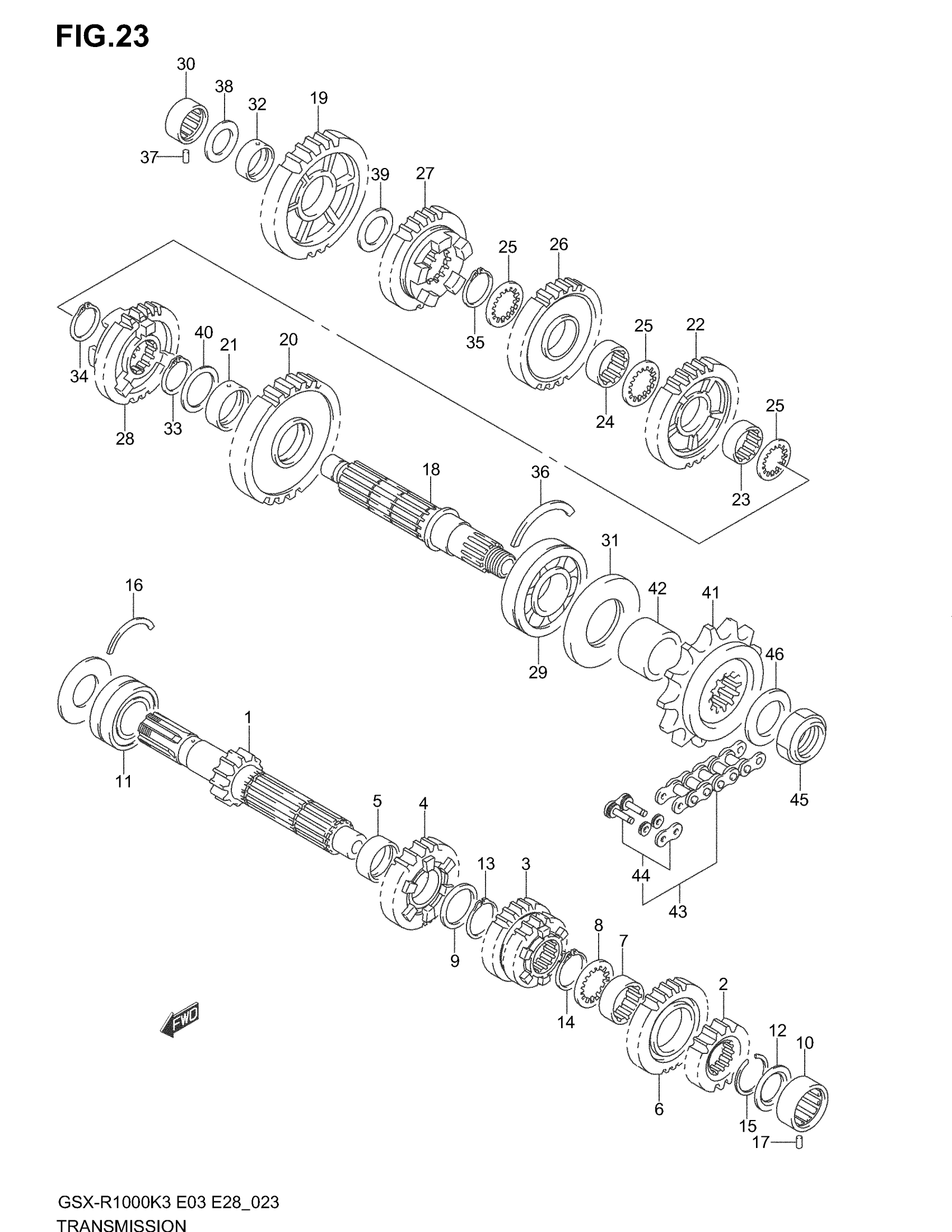

Find the part on the Transmission diagram for your 2004 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki GSX-R1000 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:16)

24120-40F00

1
Out of stock

2

GEAR, 2ND DRIVE (NT:19)

24221-40F00

1
Out of stock

3

GEAR, 3RD & 4TH (NT:22/20)

24231-40F00

1
Out of stock

4

GEAR, 5TH DRIVE (NT:23)

24251-40F00

1
Out of stock

5

BUSH 5TH DRIVE GEAR

24252-35F00

1

$27.88

In stock

6

GEAR, 6TH DRIVE (NT:24)

24261-40F00

1
Out of stock

7

BUSH, 6TH DRIVE GEAR

24262-35F00

1

$32.30

In stock

8

WASHER, 6TH DRIVE

09167-27003

1

$7.38

In stock

9

1

$6.87

In stock

10

1

$54.53

In stock

11

1

$115.55

In stock

12

1

$6.31

In stock

13

CIRCLIP, 5TH DRIVE

09380-27006

1

$2.92

In stock

14

CIRCLIP, 6TH DRIVE

09380-27006

1

$2.92

In stock

15

CIRCLIP, 2ND DRIVE

09380-27004

1

$3.58

In stock

16

C RING, CNTR RH

09390-58001

1

$3.72

In stock

17

PIN, CNTR LH

09261-06003

1

$1.87

In stock

18

SHAFT, DRIVE

24131-40F00

1

$363.07

In stock

19

GEAR, 1ST DRIVEN (NT:43)

24311-40F00

1
Out of stock

20

GEAR, 2ND DRIVEN (NT:39)

24321-40F00

1
Out of stock

21

BUSH, 2ND DRIVEN

24322-02F01

1
Out of stock

22

GEAR, 3RD DRIVEN (NT:37)

24331-40F10

1
Out of stock

23

BUSH, 3RD DRIVEN GEAR

24262-17E01

1

$43.58

In stock

24

BUSH, 4TH DRIVEN GEAR

24262-17E01

1

$43.58

In stock

25

3

$6.62

In stock

26

GEAR, 4TH DRIVEN (NT:29)

24341-40F10

1
Out of stock

27

GEAR, 5TH DRIVEN (NT:30)

24351-40F10

1
Out of stock

28

GEAR, 6TH DRIVEN (NT:29)

24361-40F10

1
Out of stock

29

1

$163.68

In stock

30

1

$54.53

In stock

31

1

$20.62

In stock

32

1

$31.78

In stock

33

1

$2.92

In stock

34

1

$2.92

In stock

35

1

$2.92

In stock

36

1

$10.62

In stock

37

PIN, DRIVE SHAFT, RH

09261-06003

1

$1.87

In stock

38

WASHER, 1ST DRIVEN RH | 20X34X1.0

09181-20251

1
Out of stock

39

1

$3.97

In stock

40

1

$4.00

In stock

41

1

$108.10

In stock

42

1

$32.30

In stock

43

CHAIN,DRIVE (DI | Includes Item(s) 44 This part replaces 27600-40F01-110.

27600-40F21-110

1
Out of stock

44

JOINT SET

27620-40F01

1
Out of stock

45

NUT, ENGINE SPROCKET

09159-20004

1
Out of stock

46

WASHER (25X40X1.4)

09160-25035

1

$5.27

In stock
