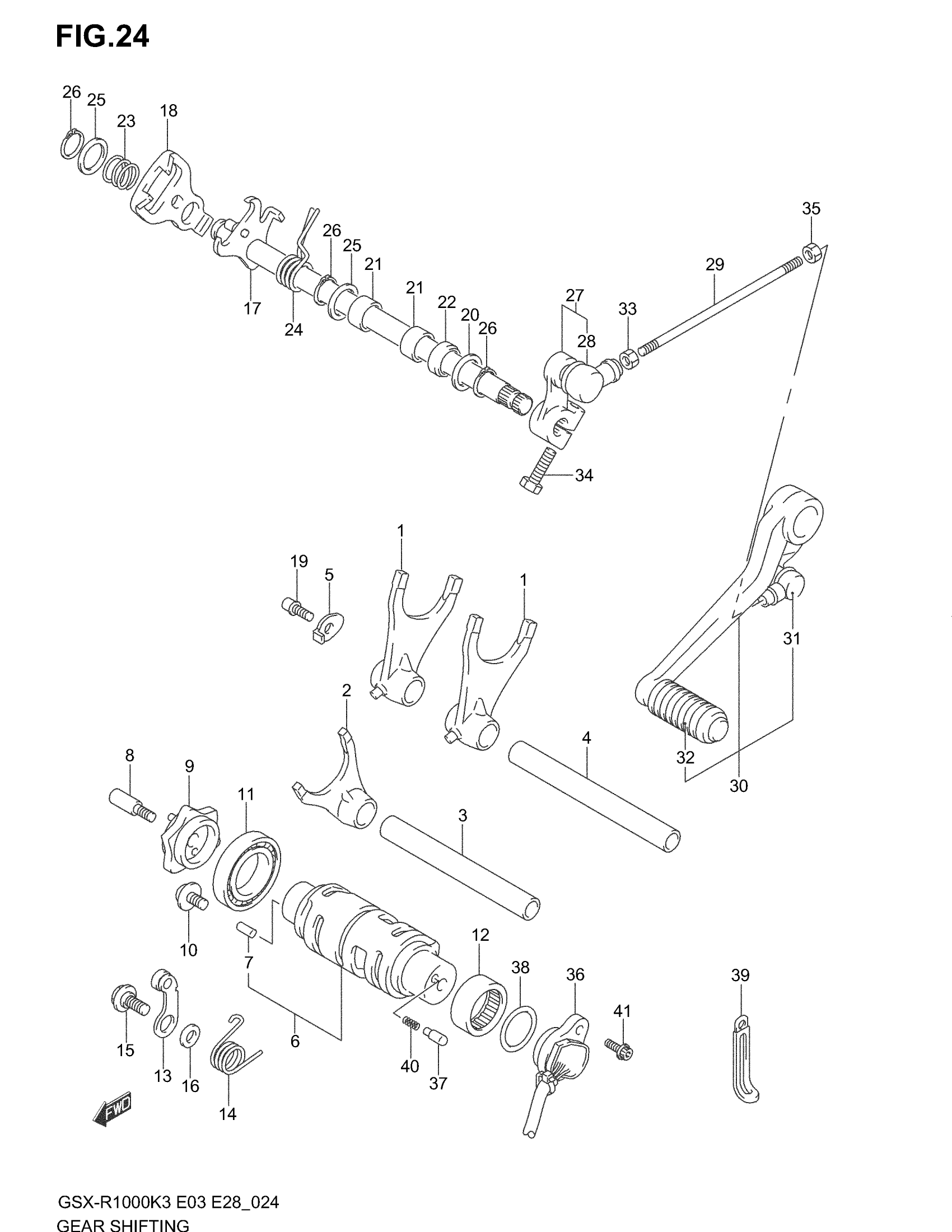

Suzuki GSX-R1000 (2004) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT,NO.1

25211-35F00

$84.69

2

FORK, GEAR SHIFT,NO.3

25231-35F00

$119.43

3

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$28.98

4

SHAFT, GEAR SHIFT FORK,NO.1

25411-24F00

$32.85

5

RETAINER, GEAR SHIFT FORK

25451-35F00

$6.83

6

CAM,GEAR SHIFT | Includes Item(s) 7

25310-40F00

$285.47

7

PIN (4X13.8)

04221-04089

$1.10

8

BOLT, GEAR SHIFT CAM This part replaces 25312-42F00.

25312-42F01

$7.28

9

PLATE, GEAR SHIFT CAM

25381-13E00

$63.22

10

SCREW, GEAR SHIFT CAM | 6X12

09136-06147

$3.48

11

BEARING, GEAR SHIFT CAM | 25X47X8

09262-25006

$23.05

12

BEARING, GEAR SHIFT | 25X32X12

09263-25018

$19.30

13

STOPPER, SHIFT CAM

25350-35F00

$19.62

14

SPRING, SHIFT CAM STOPPER

25355-03G00

$5.75

15

BOLT, SHIFT CAM (6X14.3)

09111-06041

$2.63

16

WASHER, CAM STOPPER

08211-06141

$1.61

17

SHAFT,GEAR SHIFT

25510-40F00

$128.60

18

PLATE, GEAR SHIFT CAM DRIVE

25512-06G00

$46.57

19

STOPPER, GEAR SHIFT ARM

25671-35F00

$5.18

20

WASHER, GEAR SHAFT, LH | 14X29X0.8

09160-14016

$1.91

21

BEARING, GEAR SHAFT | 14X20X12

09263-14027

$12.21

22

SEAL, GEAR SHAFT | 14X22X6

09283-14006

$6.04

23

SPRING, SHIFT RETURN

09440-17009

$1.73

24

SPRING, SHIFT RETURN

09444-20001

$4.80

25

WASHER, GEAR SHAFT, RH | 14X22X1.0

09181-14167

$2.55

26

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

27

ARM,GEAR SHIFT | Includes Item(s) 28 This part replaces 25520-40F00.

25520-40F01

$53.65

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

29

ROD, GEAR SHIFT LINK

25525-05A10

$9.98

30

LEVER ASSY,GEAR | Includes Item(s) 31 - 32 This part replaces 25600-40F00.

25600-40F01

$208.28

31

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

32

RUBBER, GEAR PEDAL

25652-20C00

$4.98

33

NUT, GEAR SHIFT ROD, LH

09140-06025

$1.84

34

BOLT, GEAR SHIFT ARM This part replaces 01500-06253.

01500-0625A

$1.77

35

.NUT

08310-00067

$1.83

36

BASE ASSY, GEAR SHIFT TERM

37730-35F10

$145.10

37

CONTACT, GEAR SHIFT SW

09209-05011

$2.02

38

O RING, GEAR SHIFT | ID:25.7,OD:2.4

09280-26007

$5.97

39

CLAMP (L:45)

09404-06429

$1.82

40

SPRING, GEAR SHIFT SW

09440-04010

$1.52

41

BOLT, GEAR SHIFT SW

09106-05023

$2.80
