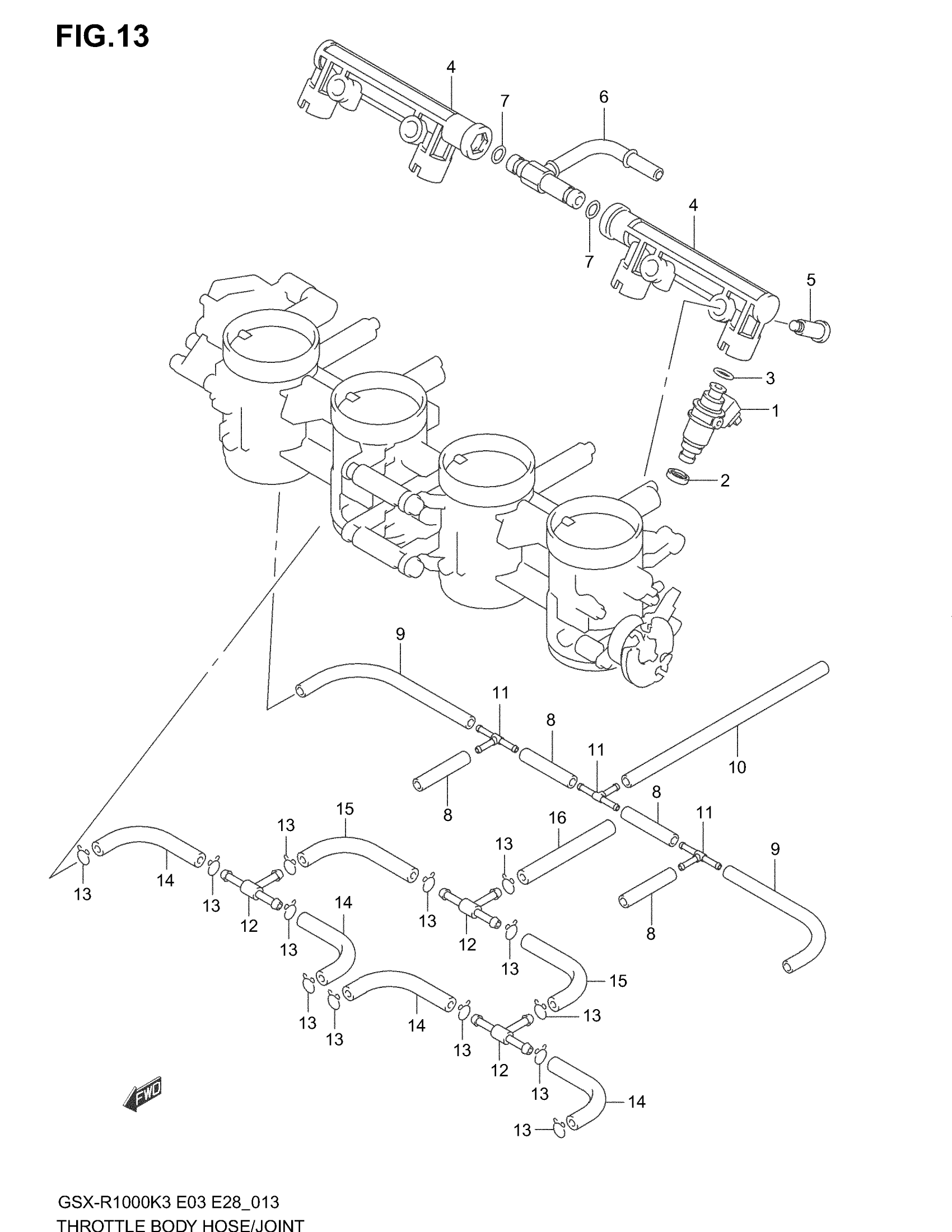

Suzuki GSX-R1000 (2004) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

INJECTOR ASSY

15710-10G00

$321.43

2

RING, CUSHION

15722-10G00

$11.25

3

O-RING

15721-10G00

$9.09

4

PIPE, FUEL

13471-18G00

Unavailable

5

SCREW

13601-35F00

$7.50

6

JOINT

13473-35F01

Unavailable

7

.O-RING

15721-24F00

$9.09

8

HOSE,RUBBER(L:3 This part replaces 13697-24F00.

13697-24F01

$2.82

9

HOSE,RUBBER(L:1 This part replaces 13697-24F20.

13697-24F21

$3.47

10

HOSE (3X7X170)

13697-35F00

Unavailable

11

3 WAY

13471-24F30

$16.48

12

JOINT | E33

13471-40F50

Unavailable

13

CLIP | E33

13671-26E20

Unavailable

14

PIPE | E33

13681-40F50

Unavailable

15

PIPE | E33

13682-40F50

Unavailable

16

PIPE | E33

13683-40F50

Unavailable
