Description

Price

1

SPEED & TACHOMETER ASSY (MILE)

34120-18G20

Unavailable

1

SPEED & TACHOMETER ASSY (KILO) | E28

34120-18G00

Unavailable

2

CASE, SPEEDOMETER UPPER | Includes Item(s) 3

34150-18G00

$119.18

3

SWITCH, LEVER

34124-24F00

$8.83

4

CASE, SPEEDOMETER LOWER

34111-18G00

$84.43

5

SCREW (3X16)

34383-35F00

$3.23

6

CUSHION This part replaces 09320-07010.

09320-07019

$3.63

7

CUSHION, METER

34955-33E00

$3.56

8

SCREW

34149-18G00

$2.53

9

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

$17.92

10

SENSOR, SPEED

34990-35F00

$127.72

11

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

12

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

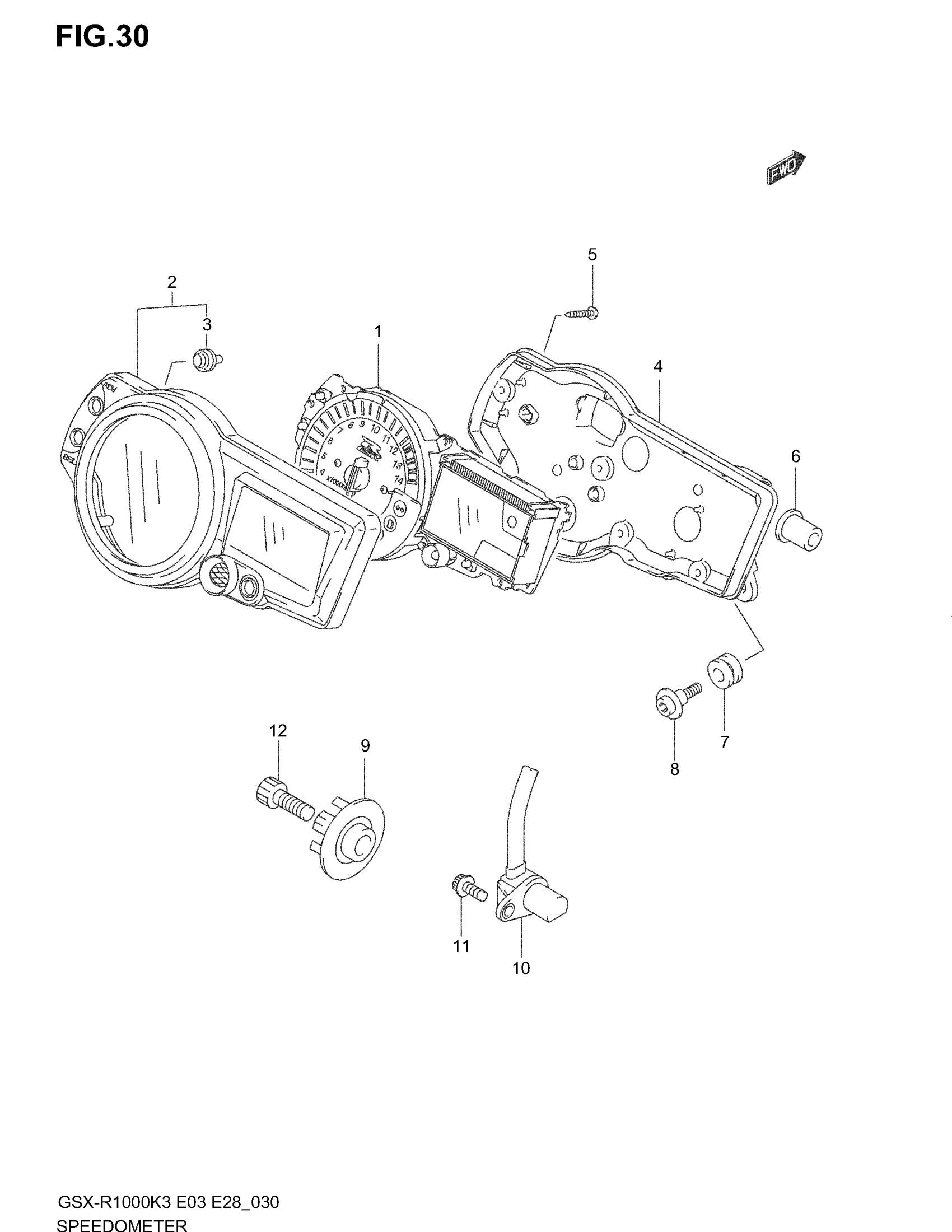

Suzuki GSX-R1000 (2004) SPEEDOMETER Diagram
