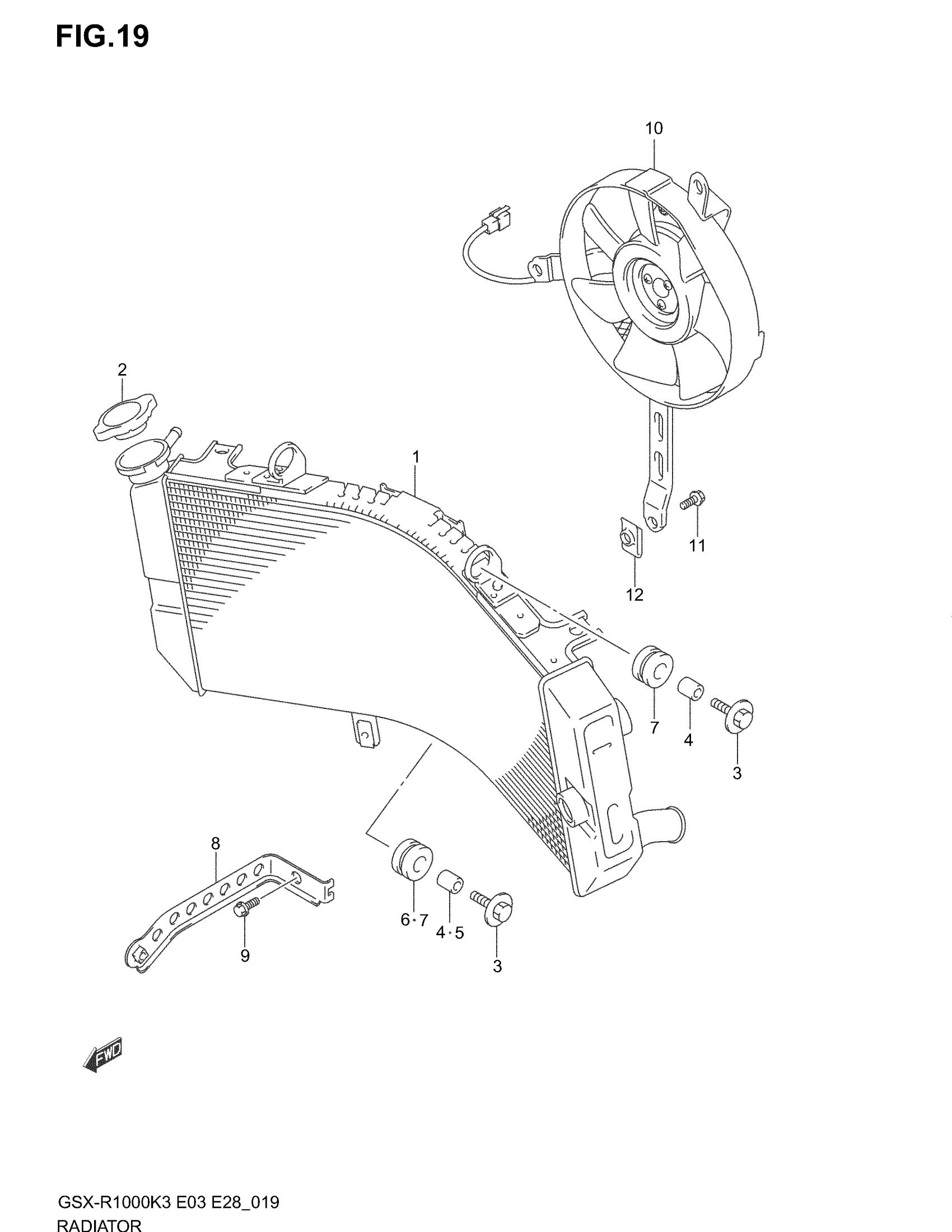

Suzuki GSX-R1000 (2004) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-40F20

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

BOLT (6X20)

09118-06097

$2.50

4

SPACER, UPPER | MODEL K3

09180-06290

$2.35

4

SPACER | MODEL K4

09180-06290

$2.35

5

SPACER, LOWER | MODEL K3

09180-06293

$2.58

6

CUSHION | MODEL K3

09320-10042

$3.12

7

CUSHION | MODEL K3

09320-10051

$2.99

7

CUSHION | MODEL K4

09320-10051

$2.99

8

BRACKET, RADIATOR LOWER

17750-35F01

$11.98

9

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

10

FAN ASSY, RADIATOR

17800-40F20

Unavailable

11

BOLT

17711-40F00

$5.58

12

NUT, FAN ASSY

17712-40F00

$4.68
