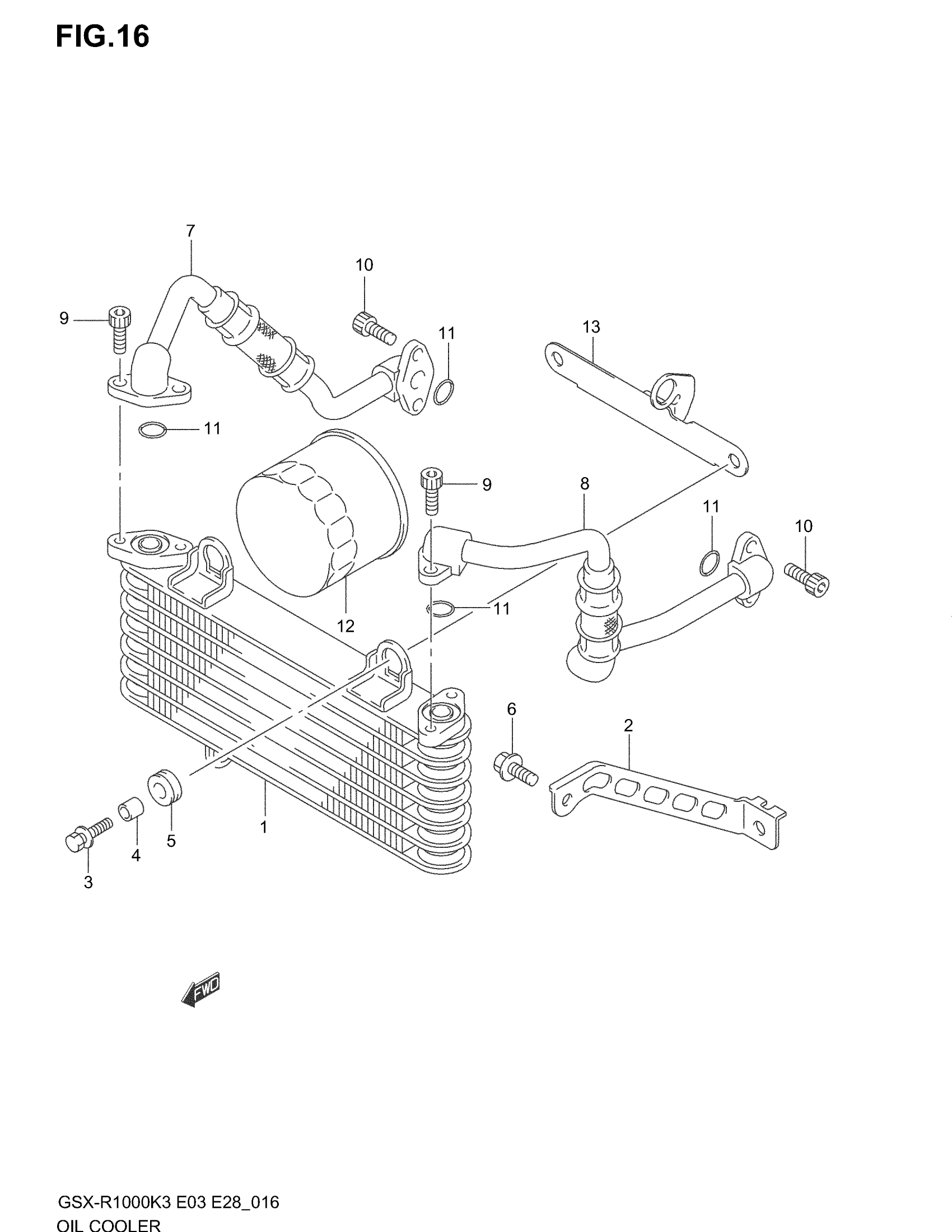

Suzuki GSX-R1000 (2004) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-40F10

$926.03

2

BRACKET, OIL COOLER

16640-40F00

Unavailable

3

BOLT

09118-06097

$2.50

4

SPACER

09180-06310

$1.91

5

CUSHION | MODEL K3

09320-10015

$2.54

5

CUSHION | MODEL K4

09320-09009

$4.64

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

7

HOSE, OIL COOLER RH

16460-40F10

Unavailable

8

HOSE, OIL COOLER LH

16470-40F10

Unavailable

9

BOLT

09106-06096

$3.20

10

BOLT, CRANKCASE LOWER

09106-06073

$2.39

11

O RING

09280-12012

$4.64

12

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$13.10

13

BRACKET COMP, RADIATOR SUPPORT

17790-18G00

Unavailable
