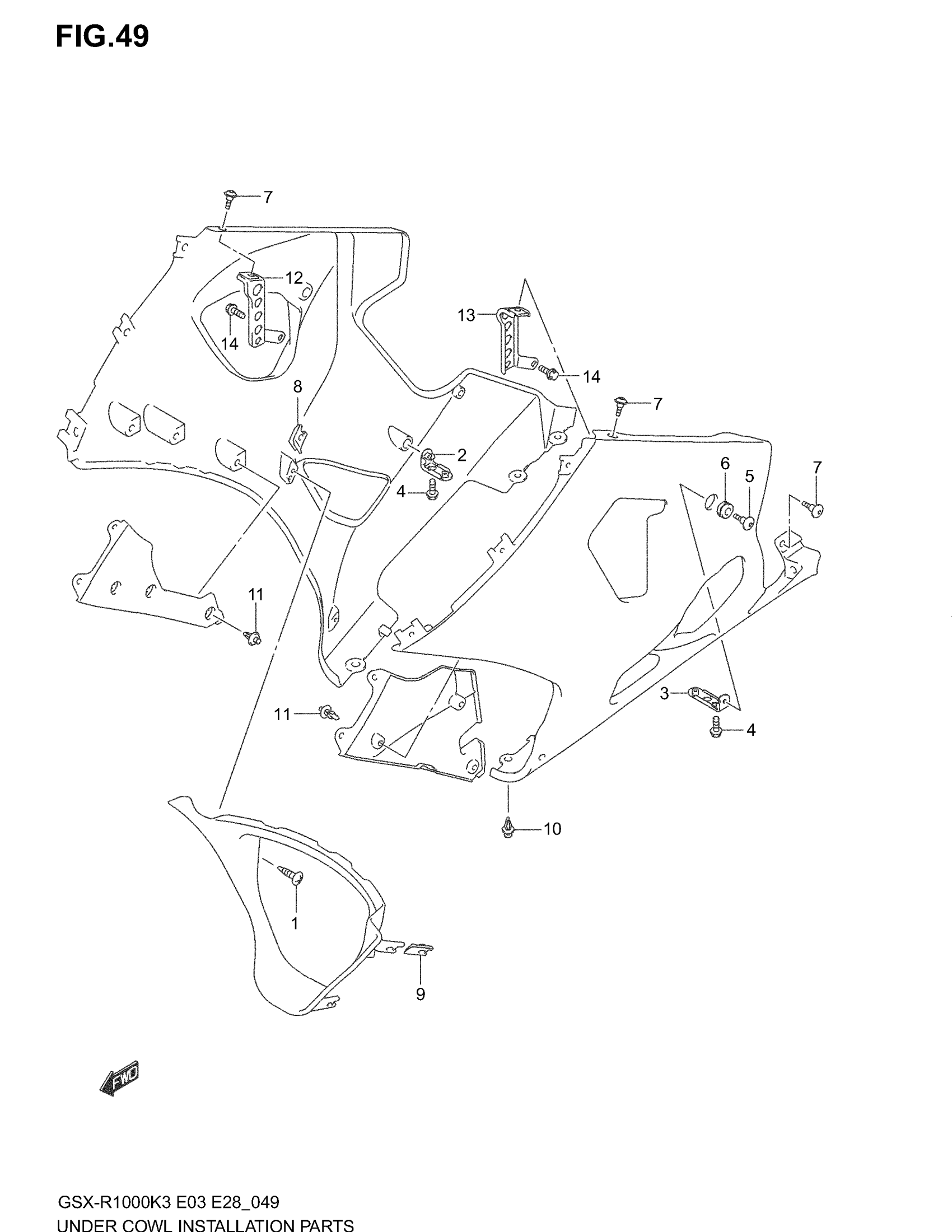

Suzuki GSX-R1000 (2004) INSTALLATION PARTS Diagram

#

Description
Price

1

SCREW This part replaces 03541-05163.

03541-0516A

$1.41

2

BRACKET, UNDER RH

94533-33E01

$7.97

3

BRACKET, UNDER LH

94534-33E01

$8.43

4

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

5

SCREW This part replaces 09139-06087.

09139-06126

$3.75

6

CUSHION

09320-09016

$2.01

7

SCREW, COWL JOINT

09139-05064

$2.64

8

NUT, UNDER RH

09148-05019

$1.95

9

NUT COWL

94484-24F00

$3.79

10

CLIP, UNDER COWL

94479-35F00

$5.38

11

CLIP, INNER COVER (BLACK)

09409-06314-5PK

$2.80

12

BRACKET, REAR UPPER RH

94520-18G00

Unavailable

13

BRACKET, REAR UPPER LH

94530-18G00

Unavailable

14

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01
