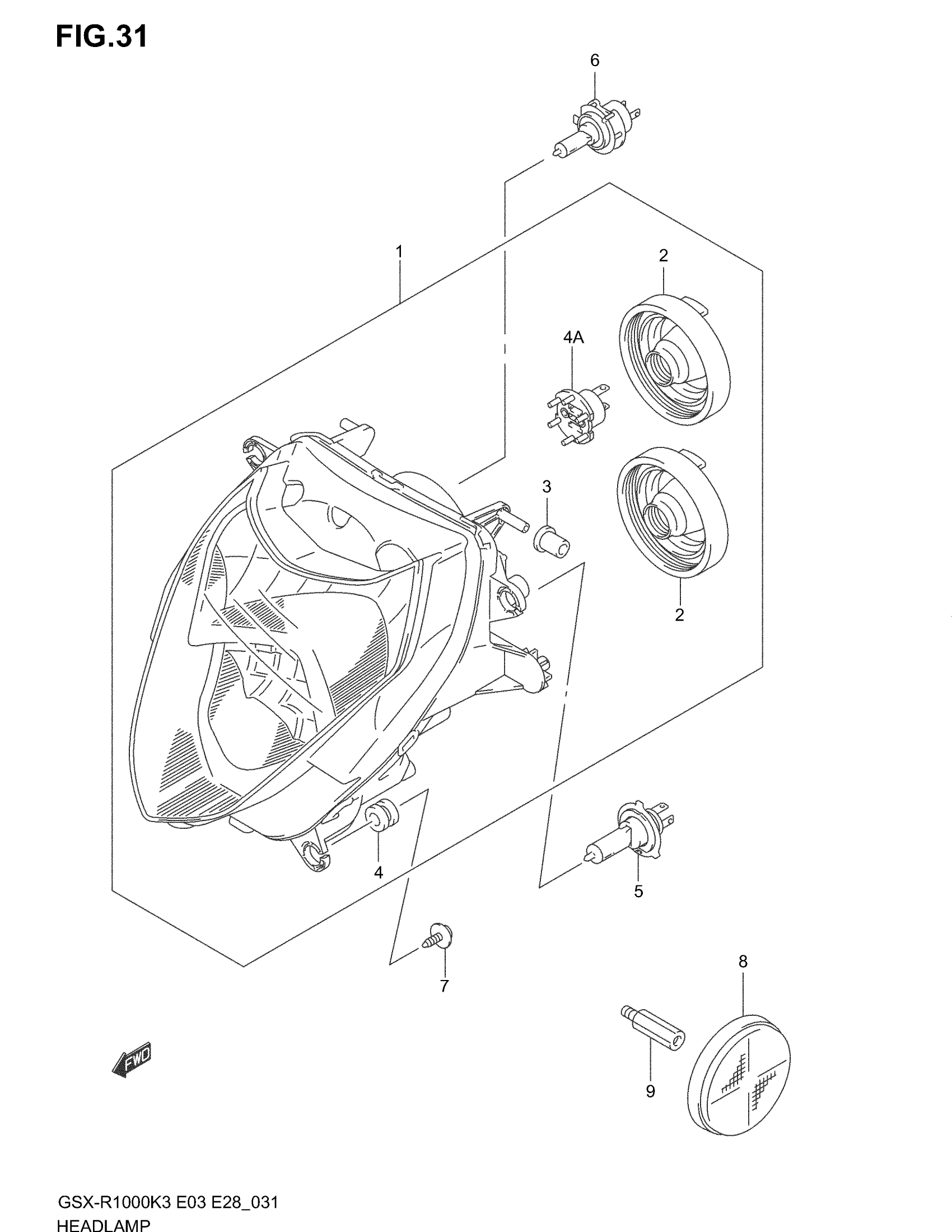

Suzuki GSX-R1000 (2004) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 4A

35100-18G30-999

Unavailable

2

COVER, SOCKET

35179-64G00

$12.39

3

CUSHION This part replaces 09320-07010.

09320-07019

$3.63

4

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

4A

ADAPTER ASSY

34175-33E50

$18.50

5

BULB (12V60/55W,H4)

09471-12182

$77.08

6

BULB (12V55W H7)

09471-12188

$22.60

7

SCREW

09136-05062

$2.19

8

REFLEX REFLECTOR ASSY, FR SIDE

35950-14A00

$16.94

9

BOLT

09119-06104

$14.43
