Description

Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$29.06

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 4

57300-33E01

$48.61

3

BOLT, KNOCKER

57431-17C00

$7.11

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

SWITCH ASSY,FR BRAKE | MODEL K3 This part replaces 57460-17C00.

57460-14J02

$38.46

5

SWITCH ASSY,FR BRAKE | MODEL K4; Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

8

LEVER ASSY,CLUT | Includes Item(s) 9 - 17 This part replaces 57500-40F00.

57500-40F11

$51.48

9

LEVER, CLUTCH

57621-40F00

$18.77

10

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$9.76

11

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

12

.SWITCH,CLUTCH

57560-05A00

$12.15

13

SCREW This part replaces 02122-03208.

02122-0320A

$2.14

14

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

15

.NUT, CABLE ADJUSTER This part replaces 57641-33E20.

57641-33E21

$35.94

16

SPRING

57644-33E00

$9.07

17

SCREW, SPRING

57642-33E00

$4.02

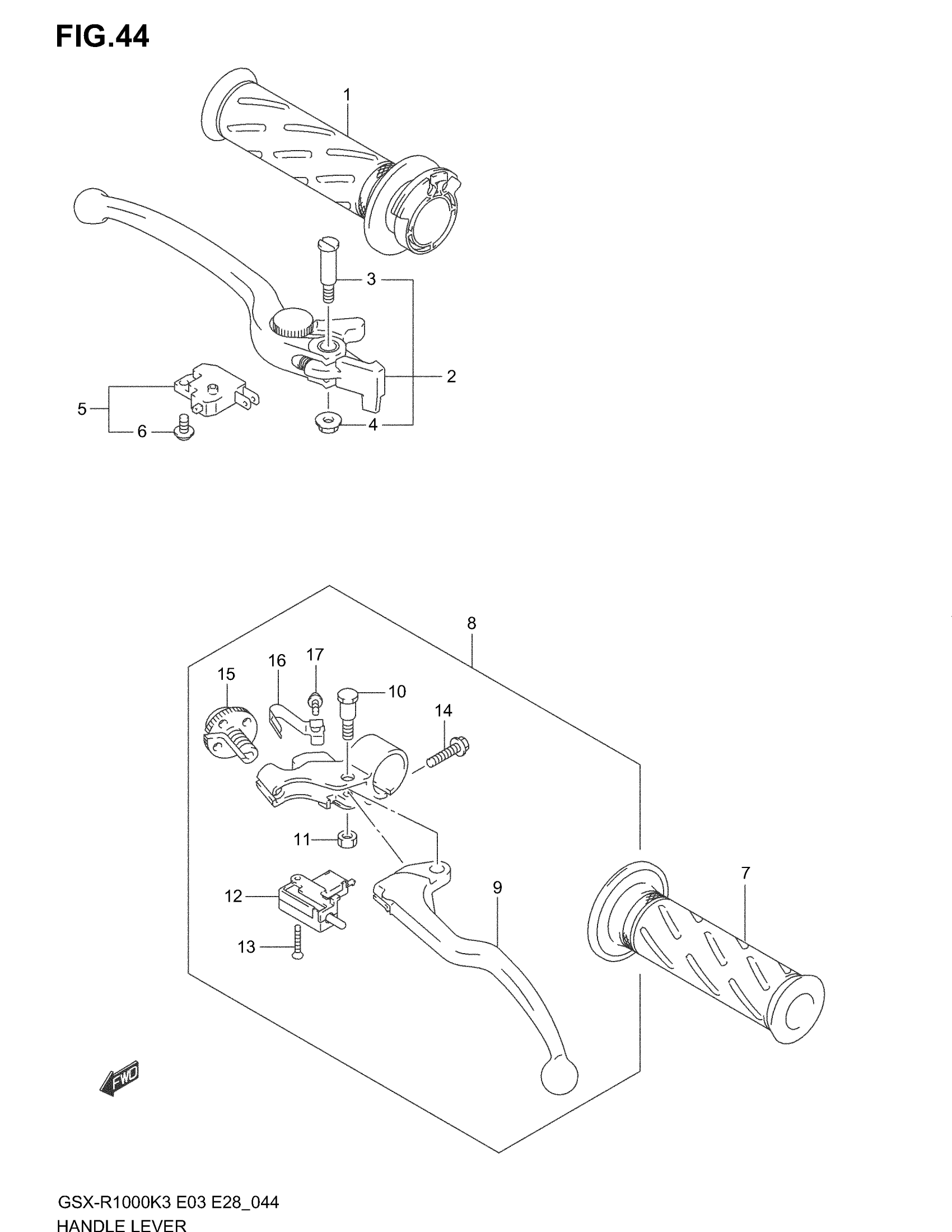

Suzuki GSX-R1000 (2004) HANDLE LEVER Diagram
