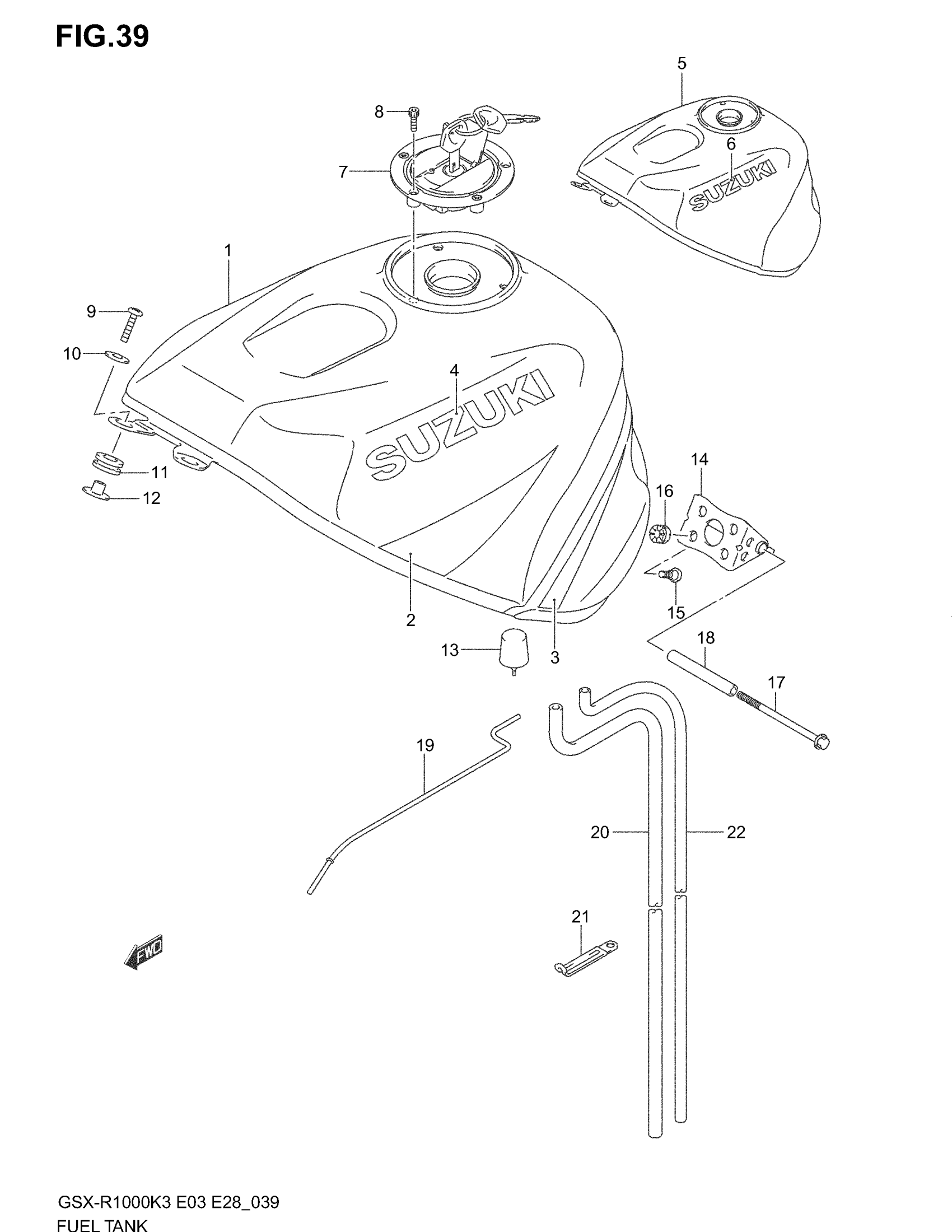

Suzuki GSX-R1000 (2004) FUEL TANK (MODEL K3) Diagram

#

Description
Price

1

TANK ASSY, FUEL | E3,E28

44100-18G00-LR5

Unavailable

1

TANK ASSY, FUEL | E3,E28

44100-18G00-LR8

Unavailable

1

TANK ASSY, FUEL | E33

44100-18G20-LR5

Unavailable

1

TANK ASSY, FUEL | E33; Includes Item(s) 2 - 4

44100-18G20-LR8

Unavailable

2

TAPE SET, UPPER | FOR LR5

68110-18G00-LS3

Unavailable

2

TAPE SET, UPPER | FOR LR8

68110-18G00-LR8

Unavailable

3

TAPE SET, LOWER | FOR LR5

68110-18G10-LS3

Unavailable

3

TAPE SET, LOWER | FOR LR8

68110-18G10-LR8

Unavailable

4

EMBLEM (WHITE) | FOR LR5

68111-12C30-YBD

Unavailable

4

EMBLEM (SILVER) | FOR LR8

68111-12C30-YD8

$25.25

5

TANK ASSY FUEL (SILVER) | E3,E28

44100-18G30-YD8

Unavailable

5

TANK ASSY FUEL (SILVER) | E33; Includes Item(s) 6

44100-18G50-YD8

Unavailable

6

EMBLEM (BLACK) | FOR YD8

68111-12CA0-YC8

Unavailable

7

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$118.21

7

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$242.83

8

BOLT

09106-05017

$2.83

9

BOLT, FRONT

09139-06029

$5.36

10

WASHER

09160-06054

$1.62

11

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

$5.68

12

SPACER, FRONT

44512-19F00

$7.44

13

CUSHION,FUEL TA This part replaces 44542-18G00.

44542-18G01

$7.98

14

BRACKET, REAR NO.1

44530-18G00

Unavailable

15

SCREW (6X22) This part replaces 09139-06132.

09139-06191

$4.03

16

CUSHION

09320-08071

$3.25

17

BOLT, JOINT

09106-06103

$4.40

18

SPACER

44561-18G00

$16.96

19

STAY, FUEL TANK

44574-35F00

$15.16

20

HOSE,WATER DRAI This part replaces 44423-16G01.

44423-16G02

$13.41

21

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

22

HOSE,FUEL TANK This part replaces 44424-18G00.

44424-18G01

$10.62
