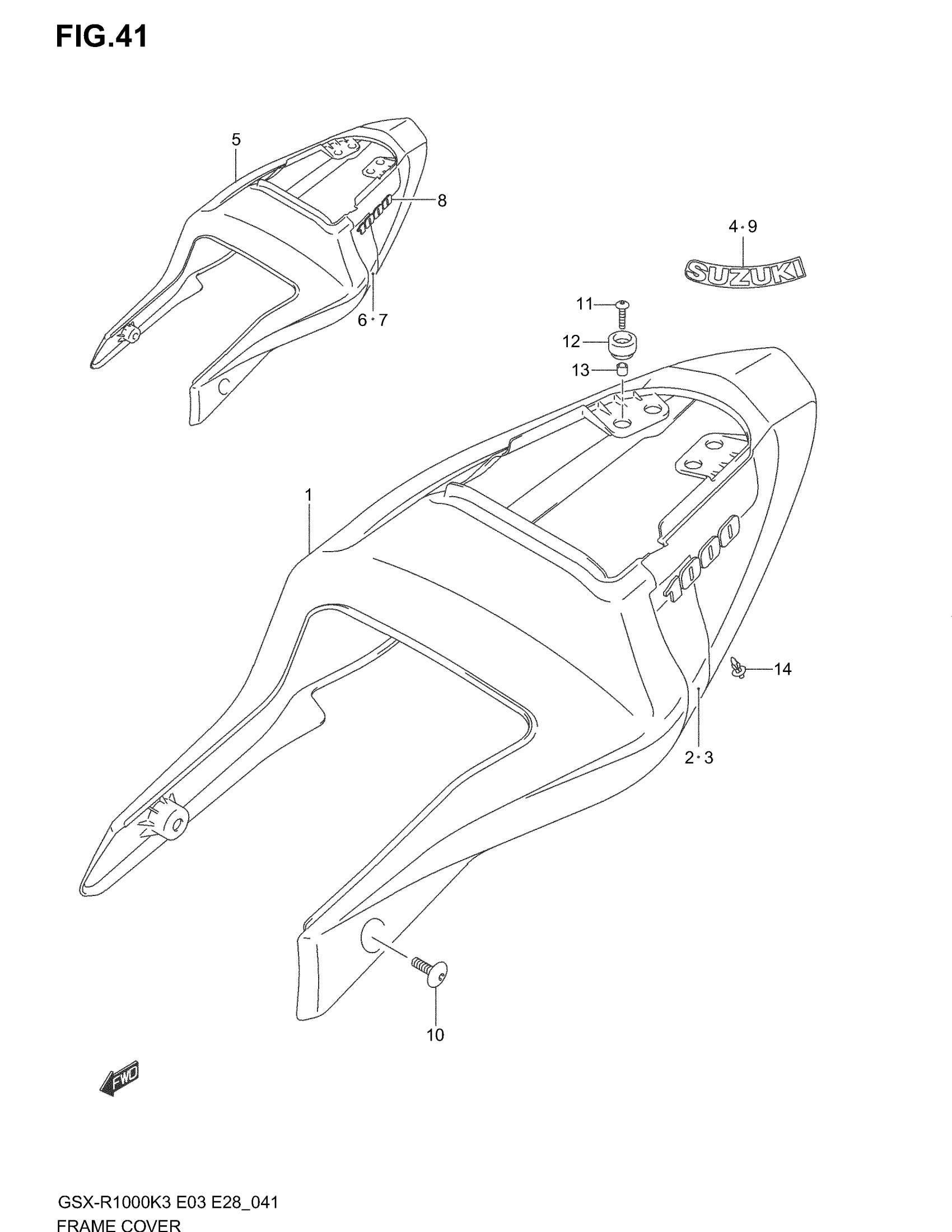

Suzuki GSX-R1000 (2004) FRAME COVER (MODEL K3) Diagram

#

Description
Price

1

COVER ASSY,FRAM | FOR LR5 This part replaces 47100-18G00-YBD.

47100-18G01-YBD

Unavailable

1

COVER ASSY, FRAME (ORANGE) | FOR LR8; Includes Item(s) 2 - 4

47100-18G00-YAV

Unavailable

2

TAPE, FRAME COVER RH | FOR YBD

68135-18G00-MZ3

Unavailable

2

TAPE, FRAME COVER RH | FOR YAV

68135-18G00-MZ4

Unavailable

3

TAPE, FRAME COVER LH | FOR YBD

68145-18G00-MZ3

Unavailable

3

TAPE, FRAME COVER LH | FOR YAV

68145-18G00-MZ4

Unavailable

4

EMBLEM | FOR YBD

68131-18G00-MZ5

Unavailable

4

EMBLEM | FOR YAV

68131-18G00-MZ6

Unavailable

5

COVER ASSY, FRAME (SILVER) | FOR YD8; Includes Item(s) 6 - 9

47100-18G10-YD8

Unavailable

6

TAPE, FRAME COVER RH | FOR YD8

68135-18G10-MZ7

Unavailable

7

TAPE, FRAME COVER LH | FOR YD8

68145-18G10-MZ7

Unavailable

8

EMBLEM, "1000" | FOR YD8

68131-18G10-MZ8

Unavailable

9

EMBLEM | FOR YD8

68131-18G00-HT6

Unavailable

10

SCREW, FRONT

09139-06131

$2.93

11

SCREW, UPPER

09139-06029

$5.36

12

SPACER

09180-06286

$2.50

13

CUSHION

09320-10045

$3.76

14

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78
