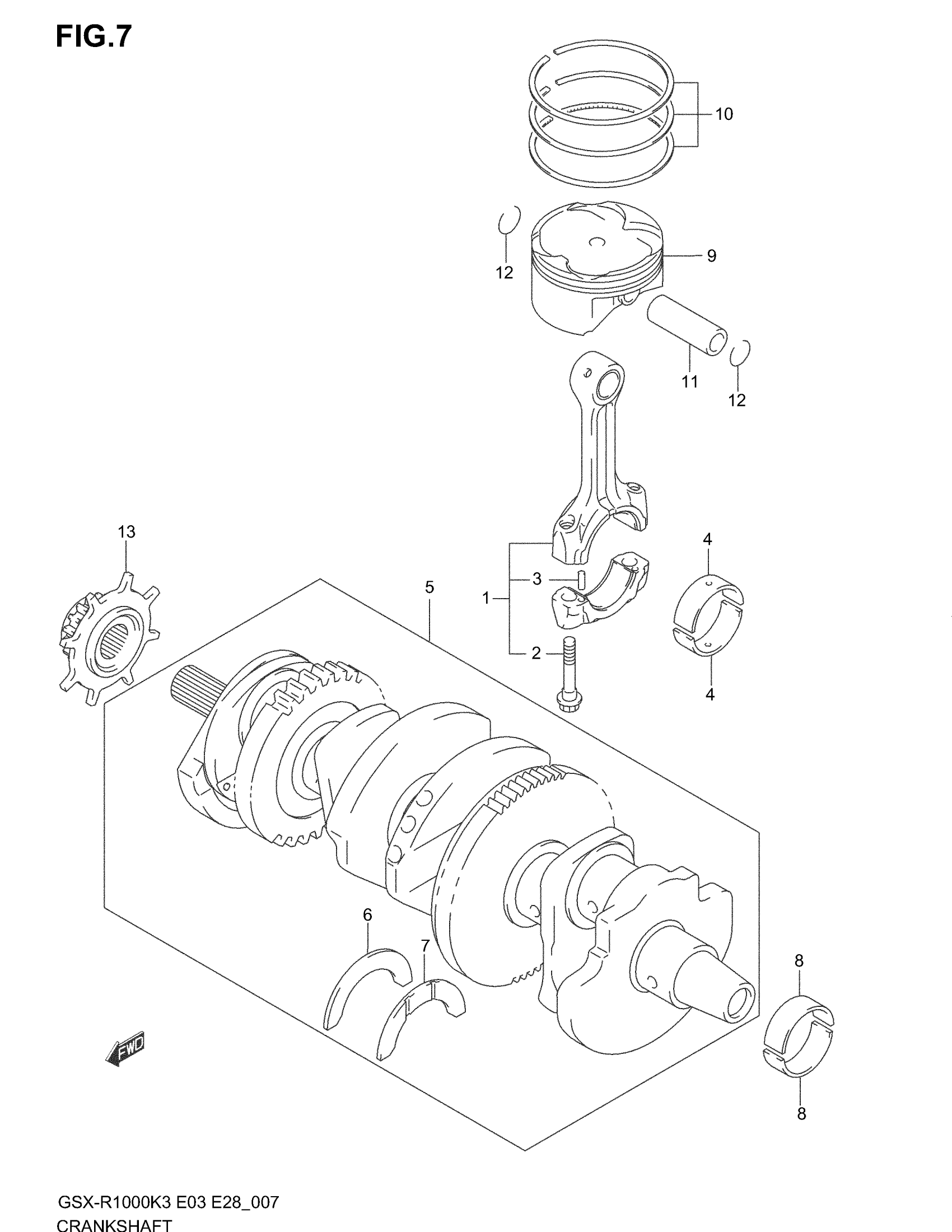

Suzuki GSX-R1000 (2004) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 - 3

12160-40F00

$239.07

2

BOLT

12163-24F00

$16.45

3

PIN, CONNROD

12165-27A50

$1.54

4

BEARING, CRANK PIN (GREEN)

12164-40F00-0A0

$12.96

4

BEARING, CRANK PIN (BLACK)

12164-40F00-0B0

$15.23

4

BEARING, CRANK PIN (BROWN)

12164-40F00-0C0

$12.54

4

BEARING, CRANK PIN (YELLOW)

12164-40F00-0D0

$12.96

5

CRANKSHAFT SET | Includes Item(s) 6 - 7

12000-40830

Unavailable

6

BEARING, THRUST RH (GREEN)

12228-48B00-0E0

$9.34

7

BEARING, THRUST LH (BROWN)

12228-48B00-0B0

$11.57

7

BEARING, THRUST LH (RED)

12228-48B00-0C0

$11.35

7

BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

$11.78

7

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

$9.34

7

BEARING, THRUST LH (BLUE)

12228-48B00-0F0

$11.78

7

BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

$11.78

7

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.66

8

BEARING, CRANKSHAFT (GREEN)

12229-40F00-0A0

$18.35

8

BEARING, CRANKSHAFT (BLACK)

12229-40F00-0B0

$18.02

8

BEARING, CRANKSHAFT (BROWN)

12229-40F00-0C0

$18.62

8

BEARING, CRANKSHAFT (YELLOW)

12229-40F00-0D0

$21.90

9

PISTON

12111-40F00-0F0

$199.05

10

RING SET, PISTON

12140-40F00

$71.83

11

PIN, PISTON

12151-40F00

$16.28

12

CIRCLIP

09381-16001

$1.67

13

SPROCKET, CAM CHAIN

12731-18G00

Unavailable
